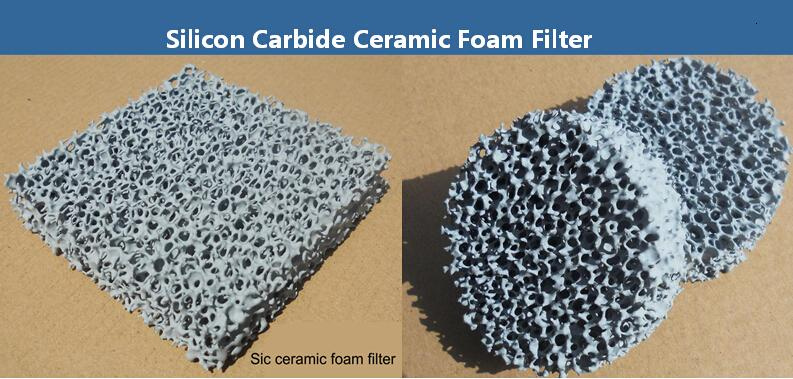

NINGXIN Silicon carbide ceramic foam filters are designed to improve the quality of nodular,grey,and malleable iron castings. The filter can effectively remove non-metallic inclusions including slag and dross from the molten metal stream. Additionally, they aid in reducing turbulence in the gating system. Ningxin ceramic foam filter's outstanding thermal shock resistance and high strength properties were developed for superior performance in extreme iron foundry applications.
-Clean iron and non ferrous castings
-Increased casting yield
-Fewer inclusions
-Real cost savings from significant
PHYSICAL PROPERTY:| Main material | SIC, Al2O3, SIO2 |
| Working Temperature | ≤1500ºC |
| Color | Dark gray |
| Hole density | 10/15/20/25/30PPI(PPI=pores per inch) |
| Porosity(%) | 78-90 |
| Compressive Strength(MPa) | ≥1.0 (Room temperature) |
| Bulk Density(g/cm3) | 0.45-0.60 |
| Thermal shock resistance | ≥2times/1100ºC-Room temperature |
Established in 2002, Baoding Ningxin was specially dedicated to manufacture molten metal filters.
We offers a complete range of foundry filter products and services. The product ranges from very cost effective fiberglass mesh filter to high filtration efficiency ceramic foam filters. Being the first mass production manufacturer of silica mesh casting filter in China, we have our patented technologies and facilities to supply the state of art mesh filters. In recent years, we also positively develop the ceramic filters based on different material to meet various demand of foundries.
Our foundry filter lines are as follows:
*Aluminum filtration fiberglass mesh, it can be in rolls, pre-cut sheet or special shapes like cap, tubular or funnel etc. With resin coating or degas process.
*High silica fiberglass mesh filters for iron and small scale steel castings, in pre-cut sheet or special cup shapes.
*Ceramic pressed filters for aluminum and iron filtration.
*Alumina ceramic foam filters for foundry or cast house, Max. Size 23"X23"X2".
*SIC ceramic foam filters for iron casting filtration.
*Zirconia ceramic foam filters for steel casting filtration.
We are serving more than 2000 foundries in China and had started overseas marketing since 2010. We are looking for the distributor partners in order to help more foundries worldwide to improve castings quality and reduce cost.
