Side Tipper Trailer

Name: Side Tipper Trailer
Brand: China-Manufacturer-Directory.com
SKU: 749652755
Availability: InStock
Rating: 4.3 (122 reviews)

Supplier:	Dongguan Supper Max Special Vehicles Co., Ltd.
Price:	US $ 10000-20000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Markets:	South America,Southeast Asia,Africa,Mid East
Material:	Carbon Steel
Color:	as The Customer's Option
Towing Pin Diameter:	50mm
Towing Pin Type:	Mushroom Type

Product Description

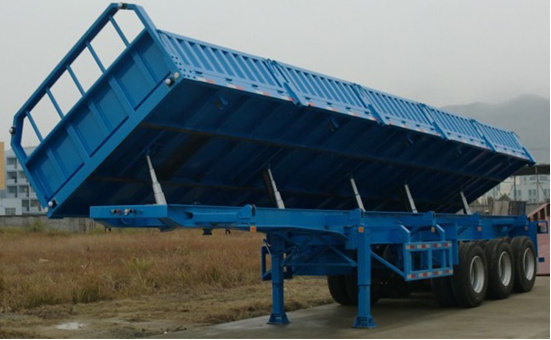

Side tipper trailer

DIMENSIONS
Tare Weight	8500kg
Payload	35000kg
Total Weight	43500kg
Overall Length	11000mm
Overall Width	2500mm
Overall Height	2920mm
Wheelbase	1840mm
SPECIFICATION
Main Frame	500mm Height, Top Flange 16mm, width 140mm; Middle Flange 8mm; Bottom Flange 16mm, width 140mm
Floor	Steel Sheet 4 mm thickness
Side wall height	800mm
Side wall thickness	3mm
Axle	Three units of L1-13 tons axles
Suspension	3 axle American design mechanical suspension
Leaf Spring	*Six sets of 8pcs 1690mm leaf spring**
King Pin	One unit of 2" bolt-in kingpin
Landing Gear	SAF 19" landing gear
Wheel Rim	13 units of 9.00-22.5 rim
Tyre	13 units of 12 R22.5 tyres (one unit for spare use)
Spare Wheel Carrier	One set of spare wheel carrier including a riser.
Pneumatic Braking System	Two units of WABCO 4 relay valve; two units of gas holder; two units of T30MY air brake chamber; Four units of T3030MY dual air; two units of long handshake joint.
Electrical System	One unit of MX-024 seven-core socket, license lamp and later fog lamp; two sets of former lamp, backup light, signal lamp, Sanlian taillights, front reflector and after triangle reflector.
Painting	Sand blasting before painting; one coats of primer, anti corrosion; two coat of finish painting; Color as customer's option
Accessory	One box with a set of standard trailer tool

WHY you trust and choose us?

1. Complete production line, from trailer Design to Delivery.

2. ISO 9001: 2008 and CCC quality certificate.

3. Use 100% famous brand spare parts in China for our products.

4. OEM/ODM service. Just tell us your idea, our R&D team is standing by.

5. We are trusted by the clients from Africa, Australia, South America, Indonesia and so on.

6. We accept 100% inspection, welcome to our factory at any time.

Supper Max International Limited is one leader exporter with large scale and specialized at production and trade, is able to produce a range of high-quality semi trailers, Dump truck, Tractor truck, Cement mixer, and relevant spare parts and so on.

Our company totally occupies an area of 500, 000 square meters, 30, 000 square meters is used for manufacturing workshop. We have 1660 employees including more than 80 skilled international staffs. Technology centers hire foreign engineers to ensure our products could meet the technical standards in different areas of the world and accurate grasp the demands of our customer.

With towards the direction of modernization, specialization and large-scale, we've passed the ISO9001 certification, the South African SABS-3 certification, granted the TS16949 certification, this promotes our production, technology and management up to a new level.

"Quality first, hearted Service, hard working now and offer in future. " is our operation philosophy. So far, our products have been successfully occupied more than 90 countries and regions includingAustralia, Africa, Middle East, and Southeast Asia. Supper Max team will keep hard and wisdom working to gain a good reputation future.
