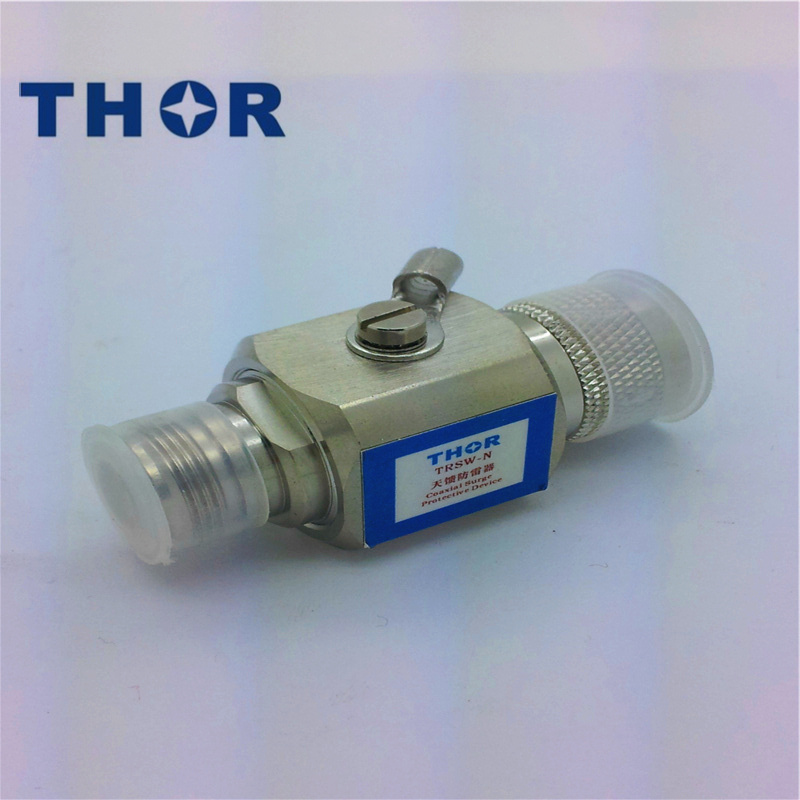

Signal Lightning Surge Protective Device for CE

Name: Signal Lightning Surge Protective Device for CE
Brand: china-manufacturer-directory.com
SKU: 754070295
Availability: InStock
Rating: 4.6 (27 reviews)

Supplier:	Zhejiang THOR Electric Co., Ltd.
Price:	US $ 14.6-18.9/Piece
Min Order:	50/Piece
Quantity::
Trade Terms:	FOB,CIF,DAP

Product Specifications

Prod Model:	TRSW-N-JK-G
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Package Size:	385mm210mm245mm
Product:	Coaxial Surge Protective Device
Frequency Range:	DC-2.5GHz
Working Voltage:	500V
Nominal Discharge Current:	10ka
Dielectric Withstanding Voltage:	1500V
Temperature:	-40c--+70c
Warranty:	12 Month
Type:	Antenna Feeder Arrester
Brand:	Thor

Product Description

Product Introduction
TRSW series wireless signal surge protective device,designed according to IEC standard,decided international F10 head,ANSI F10 head, BNC head,N mode,L16,SL16,TNC and ETC coaxial interface,suitable for satellite ground station of satellite,wireless communication equipment gs GSM,CDMA,microwave station and etc system and wireless broad network and etc coaxial communication equipment,it can protect electronic communication equipment from being damaged by over voltage due to lightning strike,inductive over-voltage,and static discharging.

TRSW series wireless signal surge protective device,designed according to IEC standard,decided international F10 head,ANSI F10 head, BNC head,N mode,L16,SL16,TNC and ETC coaxial interface,suitable for satellite ground station of satellite,wireless communication equipment gs GSM,CDMA,microwave station and etc system and wireless broad network and etc coaxial communication equipment,it can protect electronic communication equipment from being damaged by over voltage due to lightning strike,inductive over-voltage,and static discharging.

Technical Parameter
N-KK-G Lightning surge protection

Name:	N-type gas discharge tube arrester
Gender:	Female to Female
Material Code:	TR3.640.160
Type:	N-KK-G
Level:	Universal Connector 2 levels
Connection:	Threaded connection 5/8-24UNEF-2A
Applicable standards:	IEC60169-1,IEC-60169-16
Matching Relations:	With N-type pin, socket connector contacts match

Specifications:
1.Materials and Surface Treatment
Inner conductor:	Material for the bronze HPb59-1 GB3112-82
Overlay:	Three alloy electroplating
Housing material:	Brass HPb59-1 GB4425-84
Overlay:	Nickel plating
Insulator:	Politef
Rubber washer:	Silicone rubber
Gas discharge tube arrester:	90V/230V/350V
2.Electrical specifications:
Characteristic resistance:	50Ω
Frequency band range:	DC~2.5GHz
Contact resistance:	Inner conductor≤10mΩ;
	Outer conductor≤1mΩ
Insulation resistance:	≥5000mΩ
Dielectric voltage:	2500V
3. Mechanical property:
Separation of power within the conductor:	0.57N
Mechanical lifetime:	500times (12times/minute)
4.Working environment:
Environment temperature:	-4085ºC
Relative humidity:	+40ºC arrived 95%
5.Installation mode:	Free Installation
6.Storage conditions:	Within -10ºC+35ºC
7.Relative humidity:	Not larger than 80 % , Ambient air without acid, alkali and other corrosive gases stored within the Treasury
8.Technology Use:	When the prior on the butt after being tightened with a torque wrench
9.Materials meet the ROHS requirements

Zhejiang Thor Electric Co., Ltd. is a professional enterprise specialized in producing surge protectors. Our company is located in Liushi.

Our company currently provides up to 60 kinds of surge protectors. We also provide surge protectors according to customers' requirements.

With strict management, standardized production workshops, advanced ERP management system, efficient workers, and professional technical personnel, we are providing customers with high quality and cheap products.

We welcome the friends from all over the world to negotiate with us for the cooperation and development of lightning over-voltage protection market.

Our goals: To become a professional company of designing and manufacturing over-voltage protection products and lightning products.

Business:

Full range of mine supply

Lightning Products spare parts supply

Behalf of the delivery of product testing testing organizations

Lightning Products invites agents around

Product mold design and manufacturing

Quality assurance:

ISO 9001 Quality Management System Certification

CE and RoHS certification

Lightning protection device by Beijing Testing Center

Lightning protection device by Shanghai Testing Center

Product sold five-year warranty
