Product Specifications
| Prod Model: |
ST02/03 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
St02/03 |
| Mixing Ration Proportation Of Mixture: |
6:1---4:1 |
| Raw Material Barrel: |
55galon (200L) |
| Max.Air Comsumption Volume: |
0.5m3/Min |
| Max. Squeeze Pressure: |
20MPa |
| Air Source Pressure: |
0.5-0.8MPa |
| Type: |
Glass Coating Machine |
| Certification: |
SGS |
| Control System: |
PLC |
Product Description

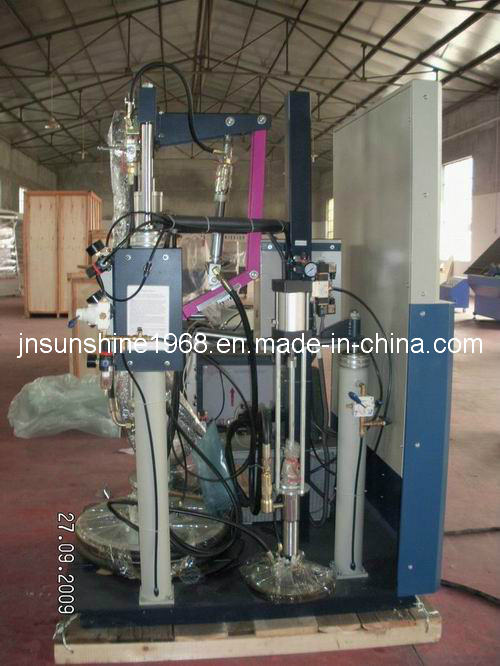

Silicone Extruder/ ST02 Two Component Sealant Extruder:
Features:
1. It is composed of raw material pump, solidification pharmaceutical
Pump, proportional pump, sealant-mixture system, hydraulic pressure system, electric system and so on.
2. Raw material pump, solidification pharmaceutical pump and proportional pump adopt the special high-pressure filling pump and the materials can be supported equivalently in two-way. The raw material pump is compelled by the hydraulic pressure system while the solidification pharmaceutical pump is compelled by the pneumatic motor.
3. There are high-pressure valves in the underpart entrance of solidification
Pneumatical filter and material-feeding place of the mixing device and one-way valve is set in the mixing device so as to prevent two-components from fleeing each other.
4. Rising and falling system is controlled by hand valve and the proportion of the two-components can be changed by adjusting the slipper in the swinging pole. Tightening the nut once the demanding scale is reached.
IG Production Line Advanced Design Proposal:
1. Air float glass cutting table (semi-automatic or CNC cutting)
2. Glass border polishing machine
3. Vertical I. G. Production line
4. Semi-automatic aluminum frame transfer machine
5. Rotated sealant spreading table
6. Two component sealant extruder
7. Butyl extruder
8. Automatic molecular sieve filling machine
9. Half-automatic aluminum spacer bending machine
10. I. G unit gas filling machine
Payment terms: 30% prepayment after order, 70% balance money before Shipment by T/T.
Delivery time: Within 20 working days after the receipt of prepayment.
Warranty time: 18 months.
Factory size: Not less than 800 square, length above 20 meters, height above
4 meters.
Guarantee & Aftersales service:
1)Guarantee the complete machine for 18 months, except the consumable parts.
2) 24hour technical support by email or calling.
3) User-friendly English manual for machine using and maintaining.
