Product Specifications
| Prod Model: |
Mk2p / 8pin Mk3p/11pin |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

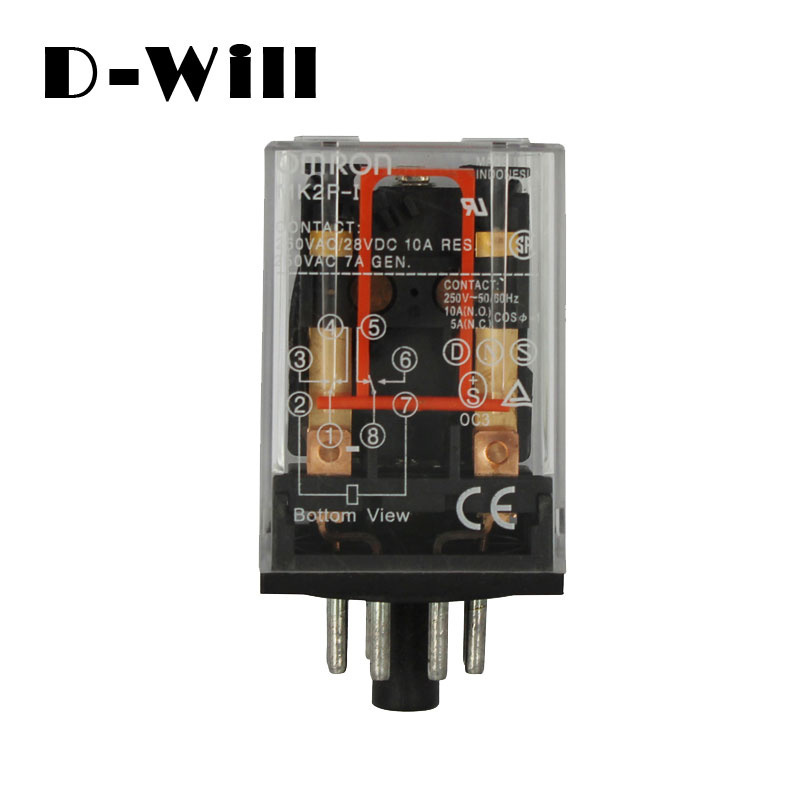

General Purpose Relay (Power Relay) Mk2p / 8pin, Mk3p/11pin
MK2P 3P general relay is widely suitable for DC or AC circuit switching in various automation devices process control and communication devices, process control and communication equipment It is characteristic of stable performance, high reliability, capable of making and breaking relatively large load current easy in maintenance and inspection as well as long service life
Plug-in base of the relay is suitable for using with standard 8 and 11 pins SpecificationsMK2P 3P General Relay Omron alike
MK2P 3P General Relay Omron alike
MK-2P-12VDC
MK-2P-24VDC
MK-2P-220VAC
MK-3P-24VDC
MK-3P-48VDC
MK-3P-220VAC
Contact Form
2A, 2C, 2B
3A, 3C, 3B
Initial Contact Resistance
100MΩ (1A 6VDC)
Coil Voltage
6VDC~110VDC; 6VAC~240VAC
Operate Time (at nomi. Volt)
10ms
Release Time (at nomi. Volt)
5ms
Coil Power(W)
1.5W, AC: 2.5VA
Contact Rating
10A 250VAC/30VDC
Insulation Resistance
100MΩ , 500VDC
Dielectric Strengh
Between Open Contact
1000VAC 1min.
Between Coil and Contact
1500VAC 1min.
Electrical Life
1× 105
Mechanical Life
1× 107
Max. Switching Voltage
250VAC/30VDC
Max. Switching Current
10A
Max. Switching Power
300W/2500VA
Impact Resistance
Stability 100m/s2 Intensity 1000m/s2
Humidity
95% R. H. +40%
Temperature Range
-55~+70° C
Vibration Resistance
1mm 10~55Hz
