Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Optical Cable Mode: |
single-mode or multimode |
| Fiber Type: |
simplex or duplex or other |
| Fiber Diameter: |
0.9mm,2.0mm,3.0mm |
| Fiber Length: |
1m,2m,3m or other length |
| Application: |
Communication |
| Type: |
Single-Mode or Multi-Mode |
| Connection Structure: |
Sc/APC Sc/Upc LC/APC LC/Upc FC/APC FC/Upc St/Upc S |
| Certification: |
Telcordia Gr-326-Core,Ice Standard |
Product Description
1. Product Introduction

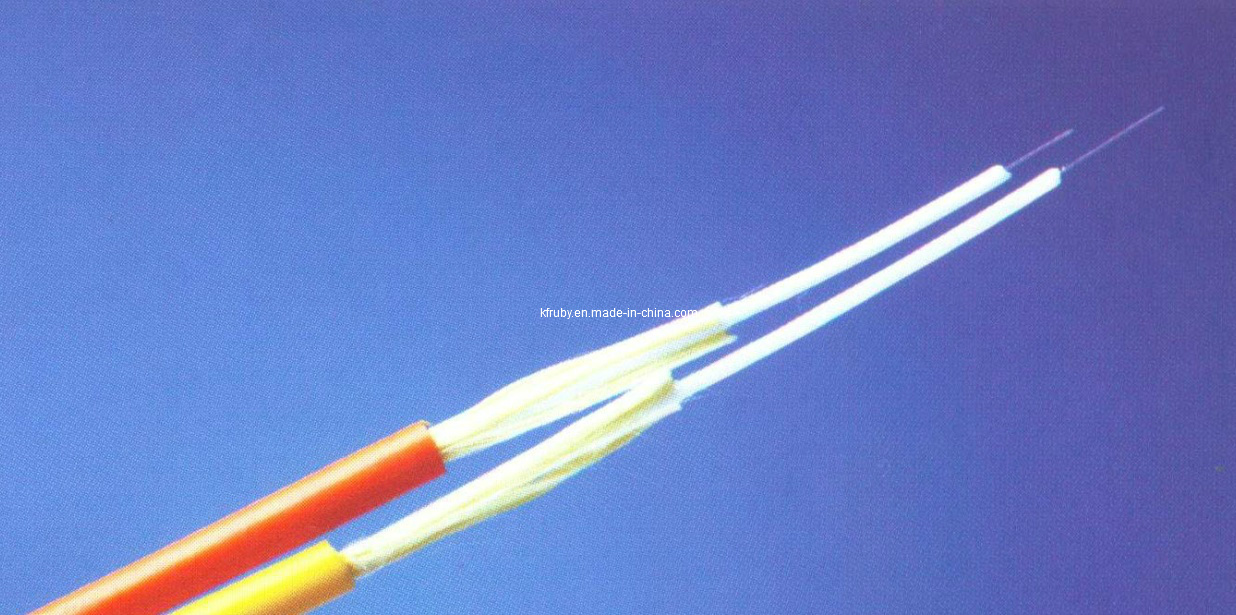

Simplex cable use single Φ 900um or Φ 600um flame-retardant tight buffer fiber as optical communication medium. The tight buffer fiber wrapped with a layer of armid yarn as strength member units, and the cable is completed with a PVC or LSZH (Low smoke, Zero halogen, Flame-retardant) jacket.
2. Application
*Optical fiber patchcord or pigtail
*Indoor riser level and plenum level cable distribution
*Interconnect between instruments, communication equipments
3. Features
*Tight buffer fiber ease of stripping
*Tight buffer fiber have excellent flame-retardant performance
*Aramid yarn as strength member make cable have excellent tensile strength
4. Specifictions
The detail info are in the forms below.
5. Standards
*Comply with standard YD/T 1258.2-2003, ICE-596, GR-409, YD/T 1258.2-2003 etc.
*Meet the requirements of UL approval for OFNR, OFNP.
|
Item |
Parameter |
Item |
Parameter |
|
Cable diameter (mm) |
Φ 2.0± 0.2 |
Cable weight (Kg/km) |
PVC |
6.0 |
|
Φ 2.8± 0.2 |
LSZH |
7.5 |
|
Φ 3.0± 0.2 |
Fiber diameter |
900± 50 |
|
Tensile strength (N) |
Long term |
80 |
Rrush resistance (N/100mn) |
Long term |
100 |
|
Short term |
150 |
Short term |
500 |
|
Bending radius (Dynamic) (mm) |
50 |
Bending radius (Static) (mm) |
30 |
