Product Specifications
| Prod Model: |
DF-FOC006 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Takfly |
| Color: |
Yellow/Orange |
| Connection A: |
Sc FC St LC MTRJ MPO |
| Connection B: |
Sc FC St LC MTRJ MPO |
| Fiber Type: |
Simplex/Duplex |
| Polishing: |
PC/Upc/APC |
| Cable: |
OS1,OS2,Om1,Om2,Om3,Om4 |
| Cable Jacket: |
PVC,Lszh,Ofnp |
| Warranty: |
3 Year |
| Length: |
Customized Lengths |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
| Connection Structure: |
Sc FC St LC MTRJ MPO |
Product Description

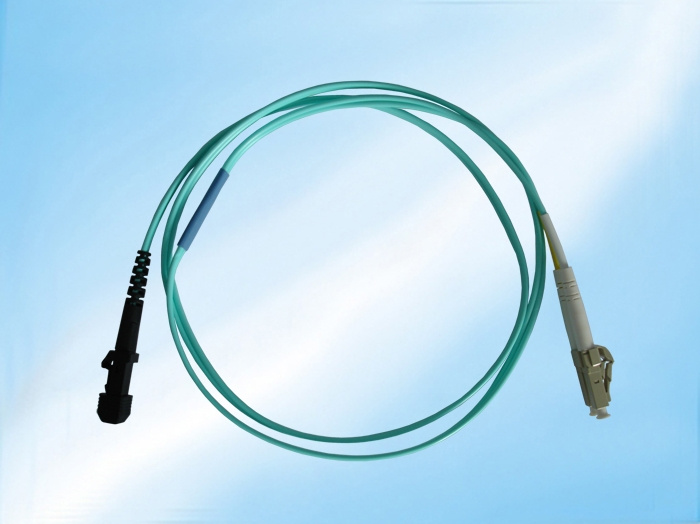

SC FC ST LC MTRJ MPO Connection
Applications:
Local area networks, including FTTH and FTTD
CATV system
Telecommunication system
Data processing networks
Testing equipment
Long-haul telecommunication
Features:
Low insertion loss(IL) and high return loss(RL)
Good compatibility
Good durability
High temperature stability
High precision of mechanical dimensions
Available for single mode/multi-mode and simplex/duplex
0.9/2.0/3.0mm diameter cable available
Specifications:
Insert loss:
Typical: ≤ 0.2dB
Maximum: ≤ 0.3dB
Return loss: ≥ 50dB (PC), ≥ 60dB (APC)
Repeatability: ≤ 0.1
Durability: ≤ 0.2dB
Interchangeability: ≤ 0.2dB
Operating temperatures: -40 to 85° C
Operating wavelengths: 850, 1, 310, 1, 550mm
|
Specification |
|
Items |
Single mode |
Multimode |
|
PC |
UPC |
APC |
62.5/125 |
50/125 |
50/125 10G |
|
Insertion Loss |
≤0.20dB |
≤0.30dB |
|
Return Loss |
≥50dB |
≥50dB |
≥60dB |
≥30dB |
|
Repeatability |
≤0.2dB |
≤0.2dB |
≤0.1dB |
|
|
Durability |
≤0.1 dB typical change, 500 matings |
|
|
Interchangeability |
≤0.2dB |
|
|
Tensile Strength |
>10kg |
|
|
Operating Temperature |
-40 to + 80°C |
-40 to + 80°C |
