Product Specifications
| Prod Model: |
FC MM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

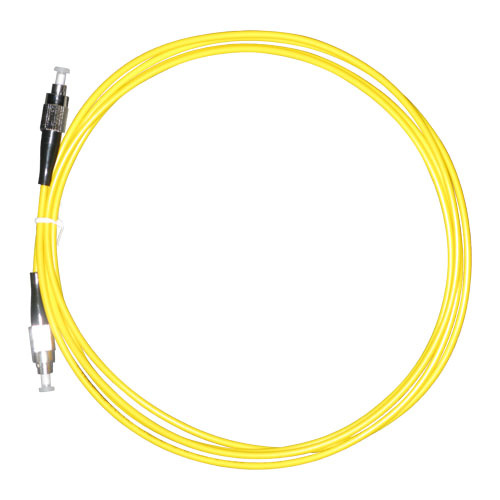

FC MM simplex fiber optic patch cord
Type SC/LC/ST/FC/DIN/MPO/MTRJ/MU/SMA/OM3 available
Polishing: PC/UPC/APC
Fiber type: MM
Core type: Simplex
Cable jacket: PVC/LSZH etc
Fiber diameter: 50/125um; 62.5/125um
Cable size: 0.9mm/2.0mm/3.0mm
Length: Customer option
Cable color: Orange
Armored cord available
Specification
1. Insertion loss<=0.3dB
2. Return loss
PC >=45dB
UPC >=55dB
APC>=65dB
3. Repeatability(500 mating): 0.2dB Maxi
4. Temperature range: -40 deg ~ 85 deg
Abblg Telecommunication(HK) Co., Ltd. is specialized high-tech enterprise of the industry engaged in fiber optic components, such as adapter, connectot, patch cord, pigtail and attenuator, as well as termination box, ODFs, coupler, splitter ect. Our products are mainly for Telecom and Datacom applications. China Fiber optic products manufacturer.
We have rich experience in manufacturing high quality fiber optic patch cord etc. We have achieved good performance during the past years, sincerely welcome businessmen overseas to establish a long-term cooperation to create a beautiful tomorrow!
