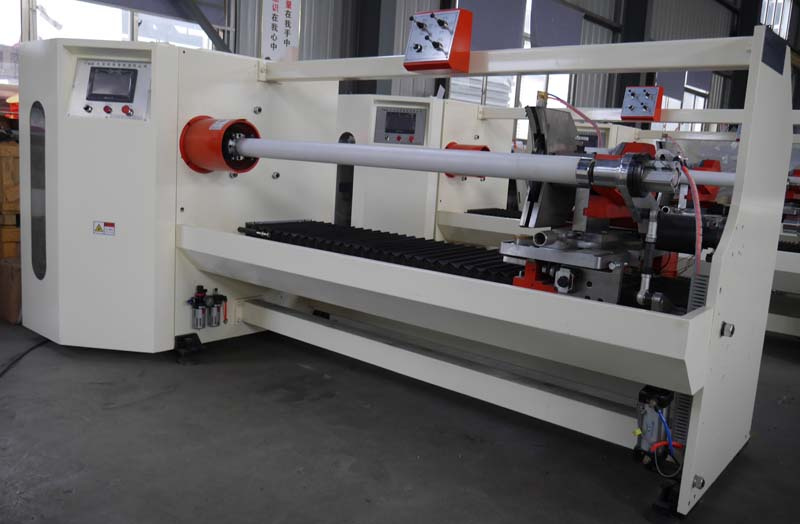

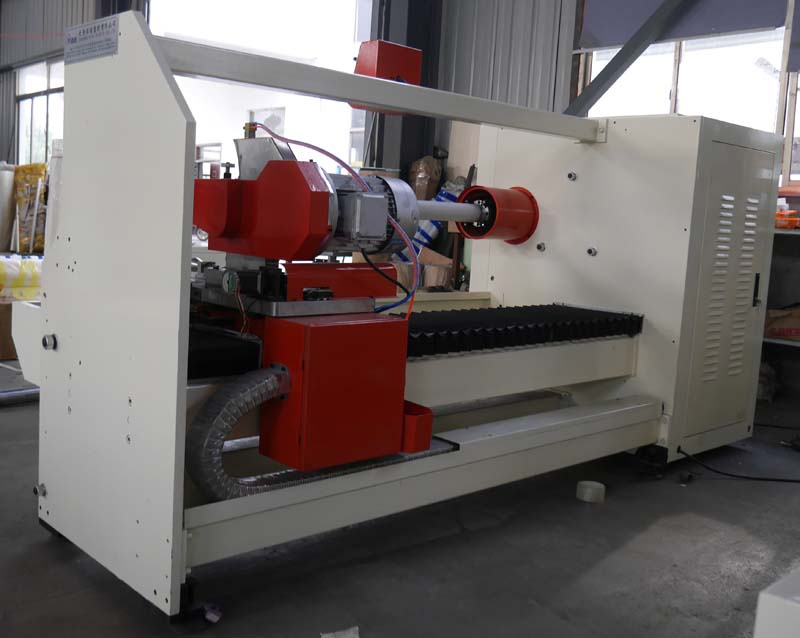

Single-Axis Automatic Cutting Machine

Name: Single-Axis Automatic Cutting Machine
Brand: china-manufacturer-directory.com
SKU: 774595465
Availability: InStock
Rating: 4.3 (147 reviews)

Supplier:	Taicang YuYu Plastic Co., Ltd.
Price:	US $ 200/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	YU-701
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Work Width:	1300mm/1600mm
Mini Slitting Width:	3mm
Type:	Roll Slitter
Work Method:	Round Knife Cutting

Product Description

YU-701 adhesive tape Cutting Machine
1. Application field:
Suitable for cutting various log roll materials such as Insulation tape/polyester tape/ PVC/OPP/PE/Masking tape/Double-side tape/Plastic films/windows film/3M tape/fiberglass mesh tapeetc.

2. Technical parameters:

Max. cutting diameter	270mm
Max. cutting speed	35cuts/min
Max. length of cut	1300mm or 1600mm
inside diameter of paper core	32-76.2mm
cutting width	3-1600mm
main motor	5HP
blade drive motor	3HP*6P(servo motor)
blade diameter	150-350mm
blade speed	360-1800rpm
weight	1150kg
machine dimension(LWH)	285014301520mm
