Product Specifications
| Prod Model: |
ZX1040 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Delievery Time: |
30days After Receiving Payment |
| Warranty: |
12 Months |
| Weight: |
8000kg |
| Packing Size: |
3.7*2.2*2.3m |
| Brand: |
Innovo |
| Type: |

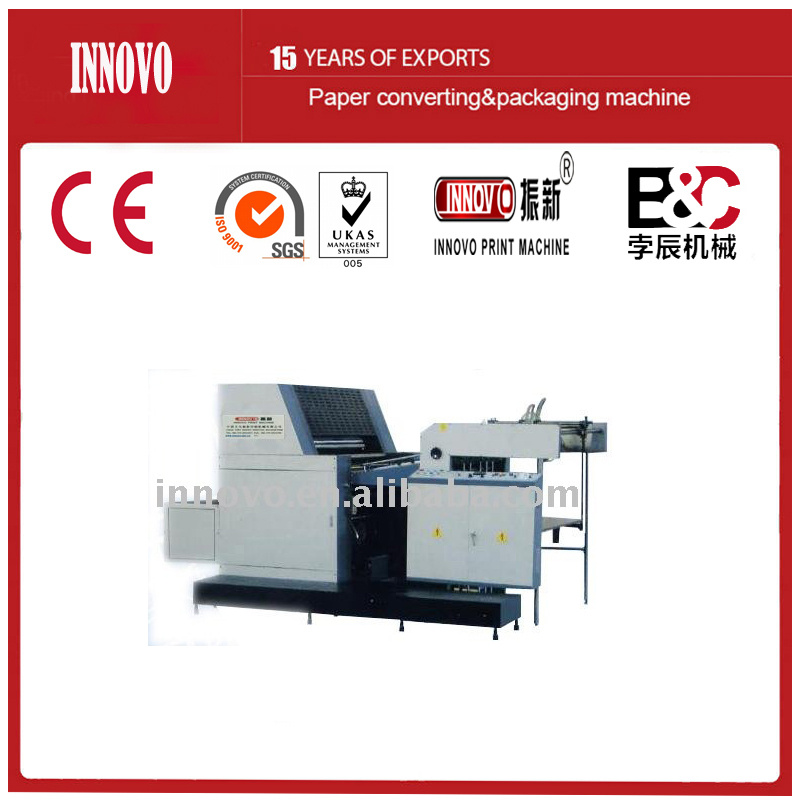

Sheetfed Automatically Plane Offset Press |
| Printing Paper Size: |
Blank Folding Machine |
| Printing Speed: |
12000 |
| Printing Color: |
One -Color |
Product Description
Quick Details
| Type: |
Offset Printer |
Condition: |
New |
Plate Type: |
Flatbed Printer |
Place of Origin: |
Zhejiang, China (Mainland) |
Brand Name: |
innovo |
Model Number: |
ZX1040 |
Usage: |
Paper Printer |
Automatic Grade: |
Automatic |
Color & Page: |
Single Color |
Voltage: |
380V |
Gross Power: |
12.4kw |
Dimensions(L*W*H): |
3.7x2.2x2.3m=18.7M³ |
Weight: |
8000kg |
Certification: |
ISO |
After-sales Service Provided: |
Engineers available to service machinery overseas |
offset printing machine: |
offset printer |
single color offset printer: |
paper printer |
sheetfed printer: |
paper printing machine |
Detailed Product Description:
1. The main machine has the buttons of positive point, negative point and low speed operation, which inconvenient for the operator to observe and adjust the machine and scrub the roller.
2. The paper-transfer device adopts conjugate cam so as to ensure the paper-transfer smooth, accurate, reliable and with little noise of the operation of the machine
3. It adopts the big roller which has good pressure, so the paper deforms little, especially suitable for the thick-paper printing.
4. The gear is out-movable, which is convenient for repairing.
5. The devices of half-automatic plate-mounting and quick plate-griping can reduce the auxiliary time of the printing work.
6. It adopts the automatic centralized lubricating system of set-point, fixed-quantity and fixed-time to make the lubrication full, which strengthens the reliability of safe operation of the machine
7. The pressure of the ink-roller and the water-roller adopts the adjustment of worm-and gear device inside the wall plate, the adjusting range is large and the operation is very convenient.
8. It adopts the adjustable vent fan, which make paper-reception smooth and in place.
9. It has been added the powder-spray device to make the ink dry quickly
TICHNICAL DATA:
Printing color:single color
Max.sheet size:720×1040mm
Min.sheet size:393*546mm
Max.printing area:700×1020mm
Max.circulate speed:8000s/h
Printing sheet thickness:0.04-0.45mm
Plate size:1040x820x0.3mm
Rubber cloth size:1050x1060x1.9mm
Max.feeder pile capacity:1000mm
Max.receiver pile capacity:1000mm
Total power of motors:12.4kw
Machine weight:8000kg
Machine overall dimension:3800*2100*2125mm
Pedal :1.6x0.86x0.3=0.41m3
Pedal:2.5x0.6x0.3=0.45m3
Main machine :3.5x2x2.1mm
Feeder :1.8x2x2.1mm
Packaging & Delivery
| Packaging Details: | total 6 pcs,dimension 29.68CBM, 8 ton |
| Delivery Detail: | within 1 month |
