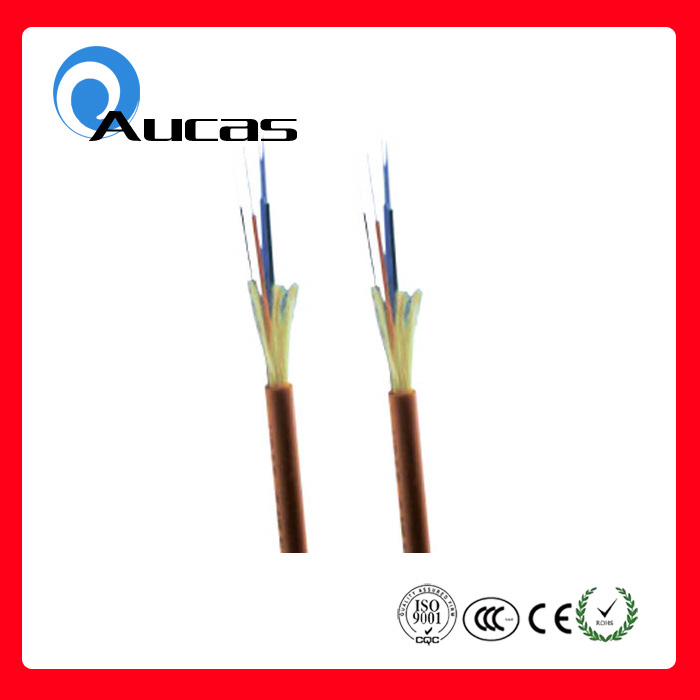

Single Core Tight Wrapped 4 Core Indoor Optical Cable (GJFJV)
Product Specifications
| Prod Model: |
GJFJV |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nominal Outer Diameter: |
1.6~2.8 Mm |
| Installation Temperature: |
-40~60 |
| Fiber Type: |
Sm, Mm, Om3, Om4 |
| Type Of Sheath: |
PVC, Lszh |
| Fiber Material: |
Silica (Glass) |
| Certification: |
UL |
| Cover Material: |
PVC |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Application: |
Fiber Optic Cable |
| Type: |
Fiber Optic Cable |
Product Description
4 core Indoor Fiber Optic Cable GJFJV
STANDARDS
Comply with Standard YD/T 1258.4-2005, ICEA-596, GR-409, IEC794, etc; And meet the requirements of UL approval for OFNR.
Storage/Operating Temperature: -20° C to + 60° C
Characteristics
Good uniformity of the outer diameter of tight buffer fiber and excellent strippability
Good performance of flame-retardant
Low induced attenuation within the operating temperature range
Excellent geometrical dimension of the fiber
Application
Data communication
Making connector
Installation: Riser, plenum, etc.
Places where waterproof is not strictly required
Making jumper, pigtail and building distribution
Standards
Comply with Standard YD/T 1258.2-2003, ICEA-596, GR-409, IEC794, etc; And meet the requirements of UL approval for OFNR and OFNP.
|
ZCC-III |
ZCC-II |
ZCC-I |
Cable Diameter (mm) |
(6.0± 0.4)× (2.8± 0.2) |
(4.2± 0.4)× (2.0± 0.2) |
(3.4± 0.4)× (1.6± 0.2) |
Cable Weight (kg/km) |
15.6 |
10.5 |
7.3 |
TBF Diameter |
900± 50μ m |
900± 50μ m |
600± 50μ m |
Mechanical Characteristics
Tensile Strength |
Long term |
100N |
100N |
|
Short term |
200N |
200N |
|
Crush Resistance |
Long term |
200N/100mm |
100N/100mm |
|
Short term |
1000N/100mm |
500N/100mm |
|
Bending Radius |
Dynamic |
20× H (Cable Axis) |
Static |
10× H (Cable Axis) |
Environmental Characteristics
Transport Temperature |
-20° C~+60° C |
Storage Temperature |
-20° C~+60° C |
Installation Temperature |
-5° C~+50° C |
Operating Temperature |
-20° C~+60° C |
