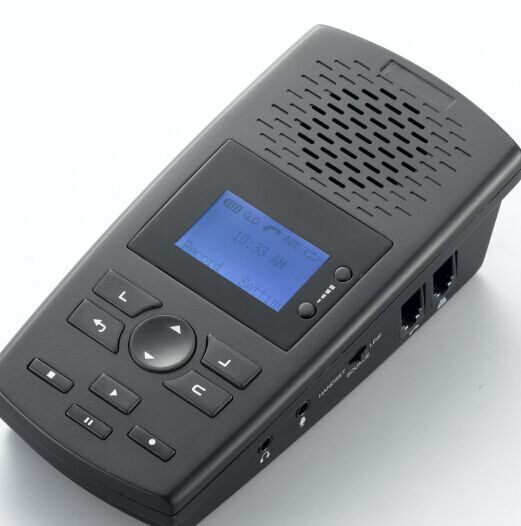

Single Line Telephone Recorder with 8GB SD Card, 560hours Recording

Product Specifications

Prod Model:	AR100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
LCD:	1.7inch
Recording Signal:	Analog Phone, Digital Phone, Voice
Record Capacity:	≥8GB
Multiple Audio Format:	WAV
Display:	LCD
Memory Card Type:	SD
Type:	Stand-Alone

Product Description

AR100 Key features:


No PC required , Record any analogue telephone via a direct line connection
Key pad design, easy to operate
SD card as media storage, recording time 70hours/GB
Capture Caller ID, Digits Dialed for all calls (line connection mode only)
Record Time, Date, Duration, Importance and add notes to calls
Connect and Record any IP or Digital telephone using the Handset Connection mode
Use Windows 7 & Vista 64 Bit Operating systems
Remote access
Live monitoring
Human search option
Caller ID pop up
Multi level user management

AR100 Data Sheet


Recording Channel	1
Recording Interface	RJ11. RJ9 .MIC
Capacity(SD Card)	2G-8GB
Compression format	ADPCM 4KB/S  80H/GB
Start recording mode	timing, reversed polarity, keying, Voice Activated
Off hook detect voltage	<(15-30)V
On hook detect voltage	>(15-30)V
CID detected signal	DTMF/Bellcore FSK/ETSI FSK
CID detect intensity arrange	0 dB to -32dB
Affected Frequency range	100 Hz to 3400 Hz
PSTN Input Impedance	600Ω or 5.1MΩ
Signal-to-crosstalk ratio	>70 dB
S/N	>60 dB
Input voltage range	DC5V/200MA
Operating current	100MA
Maximum current	180MA
battery type	3* AAA Battery
Battery working time	1-2Hours
Operating Temperature	0ºC to 40°
Operating Humidity	10% to 90 %
Net Weight(g)	165
Dimension (L*W*H)cm	14.5*7.2*3
