Product Specifications
Prod Model: |
OBM-757 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Light Source: |
650nm Laser |
Scan Pattern: |
Single Line |
Scan Rate: |
45±2 /Sec |
Scan Precision: |
4mil |
Scan Width: |
20mm@Window, 100mm@100mm |
Resolution: |
30% Minimum Reflectance |
Operating Mode: |
Continuous / Itemized Scanning |
Error Rate: |
1 Million-to-One |
Interfaces Supported: |
Mini USB Receiver, Optional RS232 or PS2 |
Battery: |
Rechargeable Lithium Ion Battery (3.7V, 2800mAh) |
Type: |
Handheld Computer |
CPU Type: |
ARM |
Memory Capacity: |
16MB |
OS: |
Obm |
Screen Size: |
2.8" |
Product Description

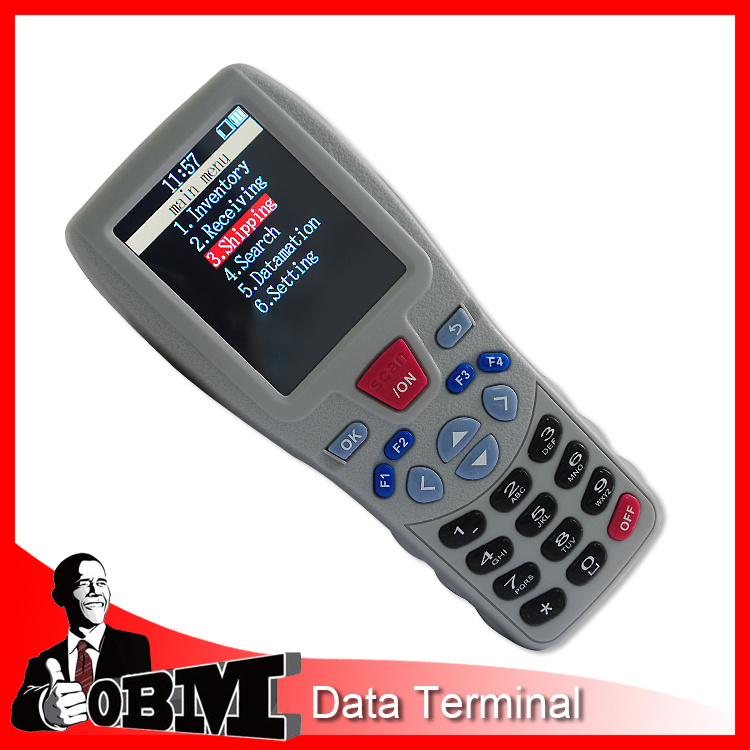

Single Line Wireless Laser Barcode Data Collection Terminal(OBM-757)
FEATURES:
MUTI-FUNCTIONAL
Covers the full circulation of commodity-receiving, shipping, cycle count, replenishment and defect report
RECONIZABLE
Supports download and of item file-barcode scanned mathes to the item automatically and displays on screen right away
SIMPLE
2.8" color display and graphical menu makes it easr to understand
EFFICIENT
Report is automatically generated right after inventory count, 90% saving on time, manpower and administrative overhead
SAFE
Real-time storage and bath transmission
Enduring
2800mA POLYMER-Lithium-ion battery ensures long working hours
About Us:
Easytech is a technology-driven company specialized in the Auto Identifica-tion (Barcode & RFID) industry. Products include Wireless/Cordeless/Corded Laser Barcode Scanner, CCD Bar code Scanner, Barcode Data Terminal, Stock Counter, Inventory Control Handheld, Mobile POS, RFID Data Terminal and RFID Reader.
TECHNICAL PARAMETERS |
Performance Characteristics |
Light Source |
650nm Laser |
Scan Pattern |
Single line |
Scan Rate |
45±2 /sec |
Scan Precision |
4mil |
Scan Width |
20mm@window , 100mm@100mm |
Depth of Field |
0 ~ 250mm ( 0.33mm , PCS 90% ) |
Roll(Till) |
30° |
Keypad |
23 |
Pitch |
65° |
Skew(Yaw) |
55° |
Resolution |
30% minimum reflectance |
Operating Mode |
Continuous / itemized scanning |
Error Rate |
1 million-to-one |
Indicator |
beeper , LCD |
Use type |
Hand-held or bracket-held installation |
Decode Capability |
EAN-8 , EAN-13 , UPC-A , UPC-E , Code 39 , Code 93 , Code 128 , EAN128 , Codaber , Industoal 2 of 5 , Interleave 2 of 5 , Matrix 2 of 5 , MSI^ |
Interfaces supported |
Mini USB receiver , optional RS232 or PS2 |
Electrical Parameters |
Battery |
Rechargeable lithium ion battery (3.7V ,2800mAh) |
Working current |
120mA |
Standby Current |
40mA |
Laser Safety |
national class2 regulatory |
EMC |
CE & FCC DOC compliance |
Physical Characteristics |
Memory |
16M |
keypad |
23 |
Dimensions |
160mm×68mm×29mm |
Material |
ABS + silicon |
User Environment 5%-85% |
Operating Temperature |
0 ~ 45 degree celsias |
Storage Temperature |
-20 ~ 60 degree celsias |
Humidity |
5%~95% (non-condensing) |
Ambient Light Immunity |
Max.5,000 Lux ( fluorescent ) |
Easytech is one of leading high technology companies which is specialized in the Auto-Identification (Barcode & RFID machine) industry. Our products include Laser Barcode Scanner, CCD Barcode Scanner, Barcode Data Terminal, RFID Data Terminal and RFID Reader.
In quest of the goal of "making the best cost-effective Auto-ID products in China", Easytech complies with a high standard and restrict requirements on product development, manufacture and services, and continuously searches for and releases products out of new demands of customers to meet the ever-changing market needs. Besides, Insisting on a principle of "well done of the experienced product before moving on to the next new, Making a plan on the new generation for the future while developing the present", Easytech is able to release at least one of leading products from the same industry every year.
Because of excellent performance and high quality of the products, Easytech has imajor companies such as China Mobile, China Telecom, China Petrol and branches of Public Security, and also our products are seen in many other retailers, chain-stores, logistic and manufacturing enterprises. In 2007, Easytech is honored as one of the "Top 10 National Brand of Barcode Industry" by the Auto-Identification Association of China.
Let us work together and make a better tomorrow with all new and old customers from all over the world.
