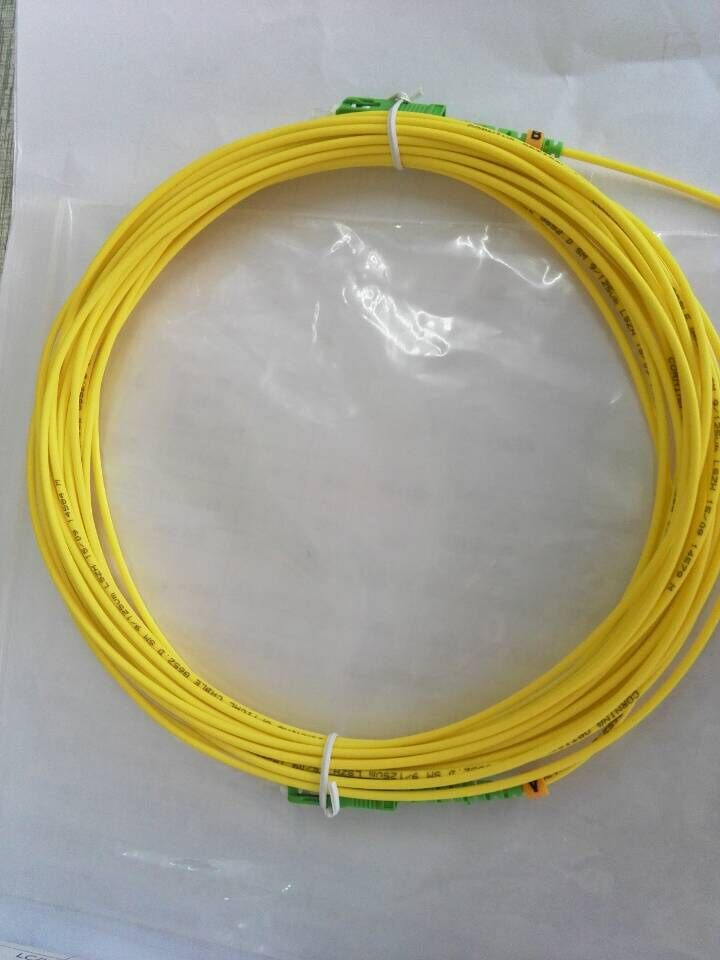

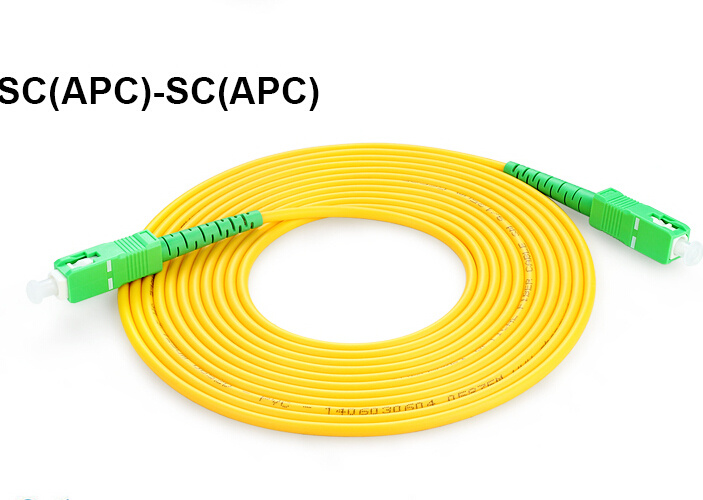

Single Mode 9/125 Duplex Sc/APC-Sc/APC Fiber Optic Patch Cord

Name: Single Mode 9/125 Duplex Sc/APC-Sc/APC Fiber Optic Patch Cord
Brand: China-Manufacturer-Directory.com
SKU: 771843415
Availability: InStock
Rating: 4.4 (113 reviews)

Supplier:	Hangzhou Zhongling Technology Co., Ltd.
Price:	US $ 2.1-20pcs
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	APC patch cord
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC-SC
Certification:	ISO9001

Product Description

Overview :

Model NO.	*sc sc Duplex*
Style	LC,SC,ST,FC.MU,MPO, SC/APC,FC/APC,LC/APC.MU/APC Duplex MTRJ/Female, MTRJ/Male
Fiber Type	9/125 SMF-28 or equivalent (Singlemode) OS1 50/125, 62.5/125 (Multimode) OM2&OM1 50/125, 10G (Multimode) OM3
Cable Type	Simplex, Duplex (Zipcord) Φ3.0mm, Φ2.0mm, Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH
Polishing Manner	UPC,SPC,APC (8°& 6°)
Insertion Loss	≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750
Return Loss (For Singlemode)	UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750
Repeatability	±0.1dB
Operating Temperature	-40C to 85C
Geometry Requirement (For Singlemode)	Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1

Fiber Optical Patch Cord Technical Standard:

Mode	SM		MM
Polish	UPC	APC	PC
Insertion Loss	≤0.2dB	≤0.3dB	≤0.2dB
Return Loss	≥55dB	≥65dB	≥35dB
Interchangeability	≤0.2dB
Salt Spray	≤0.1dB
Repeatability	≤0.1dB (1000 times)
Vibration	≤0.2dB (550Hz 1.5mm)
Temperature	≤0.2dB (-40+85 sustain 100 hours)
Humidity	≤0.2dB (+25+65 93 R.H.100 hours)
Apex Offset	0μm ~ 50μm
Radius of Curvature	7mm ~ 25mm

Hangzhou Zhongling Techonology Co., Ltd. /Hangzhou Zhongrui Communication Equipment Co., Ltd. Was founded in 1997 in Hangzhou which is well-known as "Heaven on the earth". The company is specialized in Optical Communication Equipment, including Fiber Optical Splice Closure, Fiber Terminal Box, Optical Passive Components and Optical Distribution Equipment.

With great efforts of all employees together, the company has grown up rapidly and our products has covered more than 30 areas in both Domestic and Overseas. Meanwhile, we have established branch office in Beijing, Changchun, Xi' An, Wuhan, Guangzhou, Shenzhen, Yinchuan, Jinan, Taiyuan, Shijiazhuang, Chengdu and Yuyao. We are supplier of China Telecom and China Unicom, which are the leading communication operators in China. Step by step, Hangzhou zhongrui is now known as a leading company in this line in China.

We are always pursuing to the company principle "Quality First, Customer foremost" We never ever stopped our steps to innovate and improve more and more...
