Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Number Of Cores: |
2--48 |
| Outersheath: |
PE |
| Temperature: |
-40~60 |
| Color: |
Black |
| Export Markets: |
Global |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Connection Structure: |
SC |
| Certification: |
CCC |
Product Description

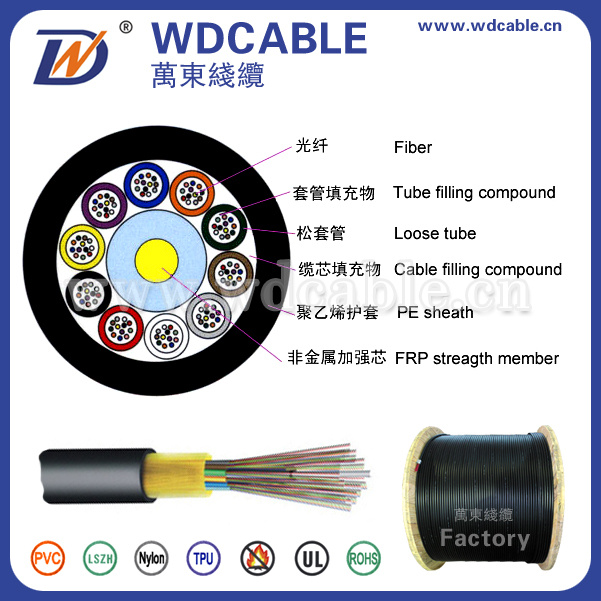

Single Model/Multi Model Duct/Direct Burial Optical Fiber Cable
1) single PBT Loose tube, filling jelly, (around strength steel wire members), PE outer sheath and Stranded Steel Member
2) Compact structure, light weight, steel tape armored excellent crush resisitant performance
3) Excellent water proof layer, good moisture resistance
4) Suitable for direct burial
5) Apply to Long distance communication system, Local aera network system and Subscriber network system
If you have any request or question please contact with Jerry, THANKS!
|
Technical data: |
|
Fiber Num. |
Outer diameter (mm) |
Weight (kg/km) |
Min. Bending radius(mm) |
Tension (N) |
Crash loading (N/100mm) |
|
Static |
Dynamic |
Short term |
Long term |
Short term |
Long term |
|
2-30 |
9.8 |
115 |
10 times O. D. |
20 times O. D. |
1500 |
600 |
1000 |
300 |
|
32-36 |
10.6 |
140 |
|
38-60 |
11 |
140 |
|
62-72 |
11.6 |
165 |
|
74-96 |
13.2 |
205 |
|
98-120 |
14.7 |
245 |
|
122-144 |
16.1 |
285 |
|
146-216 |
16.6 |
300 |
|
218-240 |
19.8 |
395 |
|
242-288 |
22 |
470
|
Shenzhen Wandong Cables Co., Ltd is a professional cables manufacturer who integrating R&D, production and distribution. We are specialized in the field of cables for more than 8 years. We offer a wide range of cable products, including optical fiber cable, CAT5E & CAT6 network cable, telephone cable, Multi-pairs CAT3/CAT5cable, coaxial cable, RVV power cable, speaker cable, drop wires and patch cord etc. We also accept OEM/ODM order.
Our total manufacturing area covers 12, 000 square meters, with a lot of advanced automatic cable equipments, such as high speed cross product lines, automatic range finder, back-twisting function equipment and cabling machine; We have at least 11 automatic producing lines, more than 10 technical personnel, annual sales is about USD50, 000, 000.
Our company tenet is "Quality first, credit first".
We follow the standards of ISO 9001: 2008 quality management system, our products have passed the RoHS, CCC, CE certification.
We have established stable business relationship with domestic and international customers. There are many agents in different province of China. At the same time, we have cooperated with many international customer from all over the words., More than 35% of our customer come from EURPOE, such as France, America, Italy; About 40% for the Middle East areas and Russia.
We will be your best supplier who could offer you the top grade quality with competitive price. It is sincerely to establish a long-term business relationship with you. Let's cooperate together and create brilliant future.
Welcome to contact us for more information, Thank you!
