Single or Three Phase R Type Transformer

Product Specifications

Prod Model:	R5VA-R30KVA /SR60VA-SR150KVA
Markets:	South America,Mid East,Eastern Asia,Western Europe
Frequency Characteristic:	50/60Hz
Efficiency:	>98%
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Multi-winding Transformer
Application:	Audio
Phase:	Single/Three

Product Description

R-transformer iron core made of iron loss, high permeability, orientation of the cold rolled
Silicon steel materials, by a change from narrow to wide and narrow smooth
Continuous variation of silicon steel belt winding.

Core column is no longer cutting apart and the type of transformer coil skeleton
Is also shown as cylinder.

Using separate skeleton is to ensure excellent insulating compression performance

The symmetrical balance around the two core column kept by the rim of the eye of R-transformer can make small magnetic flux leakage and non- noise.

Compare with EI transformer, R type transformer is smaller 30%, thiner 40%, lighter 40% than EI type transformer. Magnetic sin is 10 times less than the EI type transformer. Low temperature more than 1/2.
Field current of R-transformer reduce an order of magnitude lower than the same
Capacity with CD type one which iron loss decrease obiviously.

Because of its winding as the circular, then the average long of coil is less about 6-10% than other type transformer which help to reduce the copper loss significantly.

Huizao Electric Technology Co., Ltd. Is located in Jia'ding Shanghai who has professional R&D, manufacturing, sale and technology service about low and high voltage products.
Focus on providing various kinds of inverter transformer for EV charging station, solar energy, wind power, traction power etc. Widely apply to railway traction power, Solar PV, Wind power, lighting, UPS power supply, EPS emergency power supply, medical, enterprise electric and other industries.
Our products have a good market in western Europe, South America, Mid East and Southeast Asia.

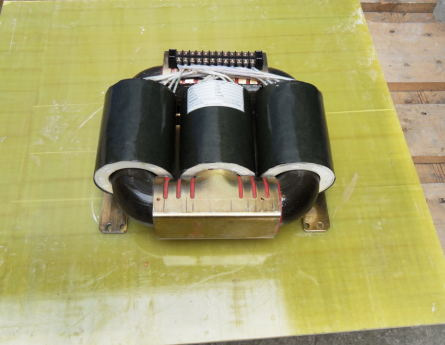

Three Phases R Transformer



Single Phase R Transformer
