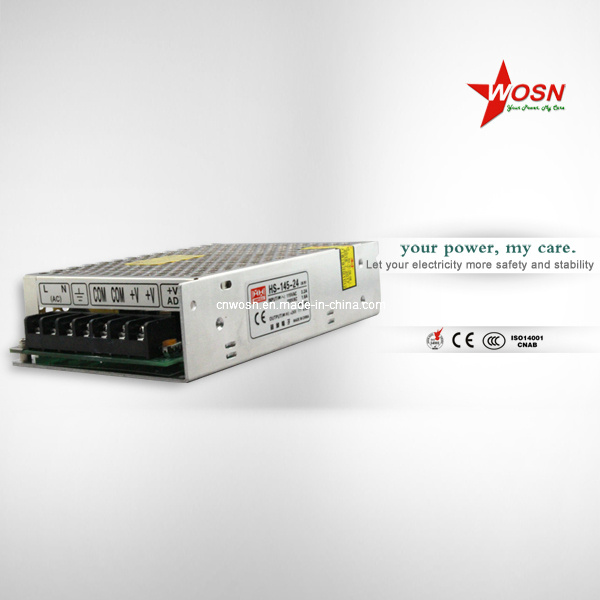

Product Specifications
| Prod Model: |
HS-145-24 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Voltage: |
24V |
| Output Frequency: |
47~63Hz |
| Output Current: |
0-3.5A |
| Color: |
Metal |
| Power Supply Type: |
Compact Single |
| Protection: |
Short Circuit/Over Load/Over Voltage |
| OEM: |
Accept |
| Keywords: |
Switching Power Supply |
| Output Type: |
Single |
| Output Power: |
101 - 200W |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Warranty: |
2 Years |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
ISO |
| Input Voltage: |
110~240VAC |
Product Description
Product Description
-AC input voltage range selected by switch
-Small volume, low weight, high efficiency
-Protections: Short circuit/over load/over voltage/over temp
-Built-in cooling DC fan
-Cooling fan ON-OFF auto control
-LED indicator for power on
-100% full load burn-in test
-2 Years warranty
Our switching power supply product:
Single output switching power supply
Dual output d series switch power supply
Triple output t series switch power supplies
Quad output q series switch power suply
Miniature size ms, RS, nes series switching power supplies
Witch pfc function sp series AC DC power supplies
DIN rail dr series switching mode power supply
LED driver (waterproof) sv, fy series switching power supplies
Open frame PS, pd, PT series AC DC power supply
DC/DC converter SD series
Wmp and ad series power supply
|
Output |
DC output |
5V~24V |
|
Wave and noise |
100mVp-p |
|
Line Regulation |
±0.5% |
|
Load Regulation |
±0.5% |
|
Power |
12W~480W |
|
Setup,rise,hold up time |
200ms 50ms 20ms |
|
Input |
Adjustable range for DC voltage |
±10% |
|
Voltage range |
110~240VAC |
|
Frequency range |
47~63Hz |
|
Efficiency |
80% |
|
Protection |
Over Voltage Protection |
120%min |
|
Over Current Protection |
120%min |
|
Short Circuit Protection |
Auto Recovery |
|
Environment |
Working Temperature |
_5°C~+40°C |
|
Working/Storage Humidity |
5%~95% R.H |
|
Storage Temperature |
_20°C~+85°C |
|
Safety&EMC |
Isulation resistance |
500VDC/100MΩ |
|
Safety standards |
CB/TUV/CE |
|
EMC standards |
EN55022 classB;EN61000-3-2,3 |
|
Others |
MTBF |
320.7 Khrs min MIL-HDBK-217F(25°C) |
|
HI-Pot Test |
AC3000V,5mA |
|
Size/mm |
85*59.7*33 |
Wenzhou Wosn Electron Technology Co., Ltd. is a manufacturer specialized in developing, producing and marketing voltage regulators, Distribution Box, Power inverter.
Since the foundation of our company, we have been persisting in taking science and technology as forerunner and abundant technology as backing, and actively introducing overseas advanced technology to unceasingly improve product quality. With many years' specialized management, our products are now best-selling in China and are also exported to Bangladesh, Indonesia, Thailand and other countries in Southeast Asia and Africa. Some of them are well sold to all over the world meanwhile receiving high praise from the majority of customers. All the times, we insist on the "top quality and competitive price". Our manufacture is the one of most famous of voltage stabilizer in Egypt market.
Accorcing to the social progress and development. Our compny devote to the green power. Right now our power inverter have been sold in Euro. And Americal market. Especially the on gird inverter (Gird Tie Inverter ). We made great progress and develop by virtue of our mature technology innovation.
With the new energy industrial developing, we believe the solar power inverter will be more and more popular in the future. We are willing establish good cooperate with all friends in the world.
Our Mission: "Your Power, My Care ".
