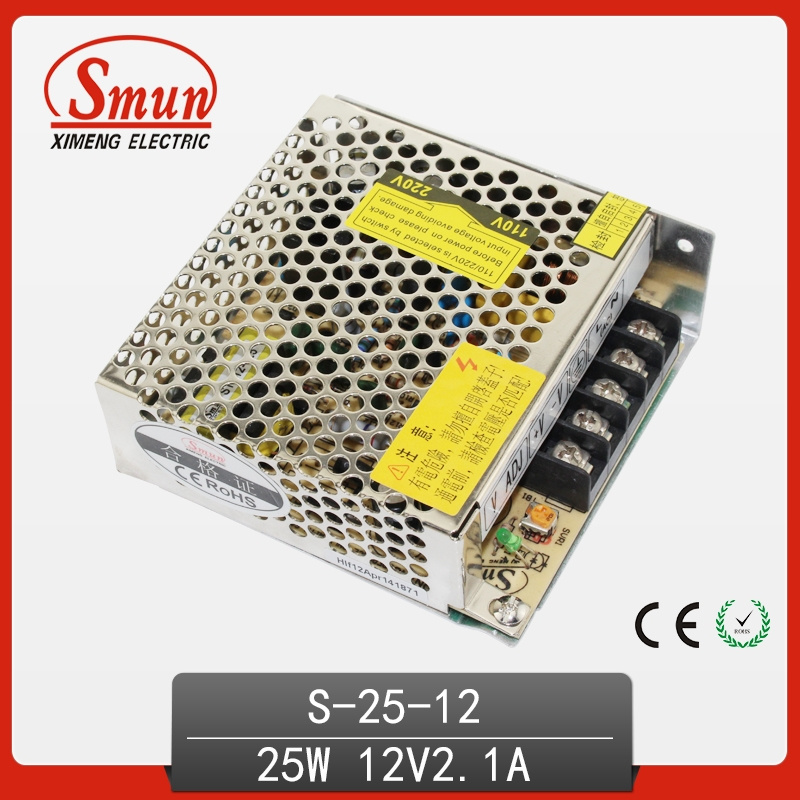

Single Output Switching Mode Power Supply 25W

Name: Single Output Switching Mode Power Supply 25W
Brand: china-manufacturer-directory.com
SKU: 720374085
Availability: InStock
Rating: 5 (29 reviews)

Supplier:	Zhejiang Ximeng Electronic Technology Co., Ltd.
Price:	US $ 3.5-6/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	S-25-12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	S-25-12
Power:	25W
Input:	85-132V 170-264VAC
Output:	12VDC 2.1A
Frequency:	47-63Hz
Size:	999735mm
Weight:	0.3kg
Package:	60PCS/18kg
Safety Standard:	En60950 UL60950 GB4943
Customized:	Available
Output Type:	Single
Warranty:	2 Years
Output Power:	1 - 50W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	RoHS
Brand:	Smun

Product Description

Our company is a high-tech company specialized in designing. R&D. Production and sale,
The products"Switching Power Supply" are with the characteristics of the low price,
High efficiency, high reliability, long lifetime and so on. Our products are widely used
In industrial automation field, indoor and outdoor LED lighting, LED lighting projects,
Communication, instrumentation, etc. Our Switching Power Supply is the ideal upgraded
Product to replace traditional controlling transformer.

The design of this series of products is in accordance with such international standards
As American UL1012, German TUVEN60950, IEC950, UL1950 and EC EMCLVD.

Our Switching Supply have many series:

Single output Switching Power Power Supply
Dual output Switching Power Supply
Triple output Switching Power Supply
Quad output Switching Power Supply
Din-rail Switching Power Supply
LED driver Switching Power Supply
DC Power Supply Series

Also we can design and produce according to your need.
Welcome to contact us anytime.

Model		S-25-5	S-25-12	S-25-15	S-25-48
Output	DC output Voltage	5V	12V	15V	48V
	Voltage tolerance	±1.0%	±1.0%	±1.0%	±1.0%
	Rated Current	5A	2.1A	1.7A	0.5A
	Related Power	25w	25w	25w	25w
	Wave&Noise	100mVp-p	100mVp-p	100mVp-p	100mVp-p
	Adjustable range for DC Voltage	±10%	±10%	±10%	±10%
	Set up,rise,hold up time	200ms 100ms 30ms
Input	Voltage Range	85 ~132VAC 170-264VAC 47-63HZ 240-370VDC
	Input Current	0.5A/115VAC 0.25A/230VAC
	Efficiency	68%	68%	68%	72%
	AC inrush current	Cold start current 15A/115V 30A /230VAC
	Leakage current	<0.5mA/240VAC
Protection	Overload	Related output power 105-150% start overload protection
		Protection type: cutoff output, recovery after restart power
	Over voltage	5.75V-6.75V	13.8V-16.2V	17.2V-20.2V	27.6V-32.4V
		Hiccup mode,recovers automatically after fault condition
Environment	Working temp humidity	-10~+60°C 20%~90%RH
	Stor temp, humidity	-20~+85°C 20%~90%RH Non-condensing
Safety	Withstand voltage	I/P-O/P:1.5KVAC 1min
		I/P-FG:1.5KVAC 1min
		O/P-FG:0.5KVAC 1min
Standard	Safety standard	Fit UL1012
	Refer	Design refer to GB4943,UL60950,EN60950
	EMC standard	Design refer to GB9254,EN55022 Class A
Size	size	L99W97H35mm
	Package	0.3kg, 60 pcs/18kg
Note:1.All parameters not specially mentioned are measured at 230VAC input, related load and 25 f ambient temperature.2.Wave&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.3.Tolerance: includes set up tolerance, line regulation and load regulation.

Zhejiang Ximeng Electronic Technology Co., Ltd. specialized in designing R&D production and sale. We have Independent import and export rights. The main products are switching power supply, LED driver power supply, AC/DC adapter, Electrical plug&sockets, Indicator lamp, terminal blocks, cable glands and related wiring accessories, Push button switches, and so on. All products are exported by our company YUEQING XIMENG IMP&EXP. Co., Ltd.
