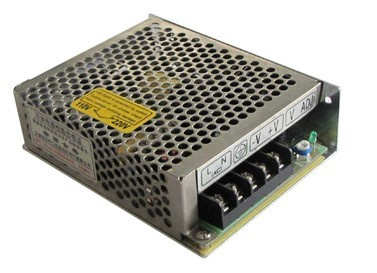

Single Output Switching Power Supply (S-35)

Single Output Switching Power Supply (S-35)
Supplier: Yueqing Supower Electric Co., Ltd.
Price: Negotiable
Min Order: 1
Quantity::
contact supplier

Product Specifications

Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Type: Single
Output Power: 1 - 50W
Input Voltage: 110-220V
Voltage Regulating Mode: Frequency Modulation Type
Starting Mode: Self-excited Switching Power Supply
Connection Mode: Series Switching Power Supply
Power Supplying System: Terminal Power Distribution Equipment

Product Description

Features:
1) High efficiency, low operation temperature
2) Built-in EMI filter
3) 100% full load burn-in test
4) Protection: Overload, short circuit
5) Competitive price, high reliability
6) Output: 5V - 48V
7) Input: 110V / 220V AC, selected by switch
8) Dimensions: 129 x 98 x 38mm
Model

Specification

    S-35-5     S-35-12   S-35-15   S-35-24

DC output

5V 7A 12V 3A 15V 2.4A 24V 1.5A

Wave and noise

80mVp-p 120mVp-p 120mVp-p 120mVp-p

Inlet stability

± 1% ± 0.5% ± 0.5% ± 0.5%

Load stability

± 1% ± 0.5% ± 0.5% ± 0.5%

Efficiency

77% 81% 83% 84%

Adjustable range for DC voltage


± 10%


± 10%


± 10%


± 10%


AC input voltage range


85~132VAC/170~264VAC Selected by switch 47~63Hz, 240~370VDC


AC input voltage range


Cold-start current 40A/230V


OverLoad protection


105%~150% hiccup mode, auto-recovery


OverLoad protection

115%~135% ratedoutput voltage

Setup, rise, hold up time


300ms, 50ms, 80ms


Withstand voltage


I/P-O/P: 1.5KvAC I/P-FG: 1.5KvAC O/P-FG: 0.5Kv 1minute


Isolation resistance


I/P-O/P, I/P-FG, O/P-FG: 500VDC/100MΩ


Working temperature


-10 ~ +50


Safety standards


Design refer to GB4943, UL60950, EN60950


EMC standards


Design refer to GB9254, EN55022 classB


Weight


0.29kg

YUEQING SUPOWER ELECTRIC Co., Ltd. is the specialized manufacturer and exporter in line of Solar Power System accessories, Industrial Control Solution and Electrical Accessories Supplies. We nearly have More than 10 years manufacture and export experience in electrical field, with the improvement of technology and quality of products and our service won high reputation from our customers who comes around the world.

"SUPOWER ELECTRIC" products are including Solar Power System accessories, Circuit Protection product, Electric control equipment, Electrical accessories, Distrubtion board and Hardare tools. Such as Solar on grid micro Inverter, Pure Sine wave power Inverter, Solar Charger Controller, Battery Charger, MCB, RCCB, RCBO, Time Switches, Pushbutton Switches, Cam switches, LED Indicator, LED Bulbs, AC Contactor, Relays, Digital Meters, Metal Encolsure, Temperature Controller, Cable gland, cable tile, cable marker, crimp tool plier tool and so on, all are strict to according to international standard to produce. We always strive to reduce the cost, improve the quality, minimizing environment impact, make our customers more competitive. Taking our mission that the growth our customer will. We will.
