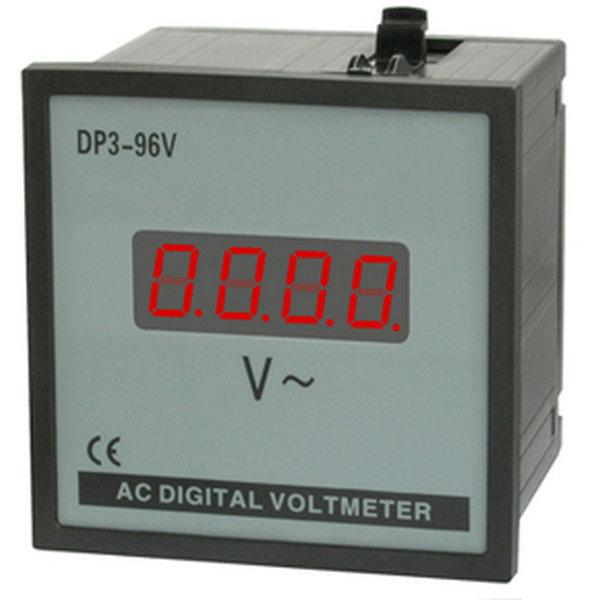

Single Phase AC Digital Voltage Meter

Product Specifications

Prod Model:	DP
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	48X48, 72X72, 96X96mm
Phase:	Single
Consumption:	<3.2va
Max Signal Consumption:	< 0.3va
Application:	Electric Power
Display:	Digital
Power Source:	AC Meter

Product Description

Digital AC Voltmeter


Digital DC Voltmeter:
Display: 3 1/2 digital. LED display (red or green)
Accuracy: 0.5% ±1 digit
Auxiliary power: AC 110V ± 10% 50/60HZ or AC 220V± 10% 50/60HZ
Input signal: AC voltage
Measuring range: 0-600V DC or according to your own requirement.
Consumption: <3.2VA
Max Signal Consumption: <0.3VA
Operating Environment: temperature -10~50°c humidity:≤85%
Storage Environment: temperature -30~60°c humidity:≤70%
Heat resistance: case of non-combustible plastic material
Voltage Testing: over 2000V
Fasterning: By means of nuts, absolutely safe, fast, robust, side-by -side

Digital AC Voltmeter:
Function: Measure AC voltage
Display: 3 1/2 digital. LED display (red or green)
Accuracy: 0.5% ±1 digit
Auxiliary power: AC 110V ± 10% 50/60HZ or AC 220V± 10% 50/60HZ
Input signal: AC voltage
Measuring range: 0-600V AC, for the voltage over 600V can use the potential transformer.
Consumption: <3.2VA
Max Signal Consumption: <0.3VA
Operating Environment: temperature -10~50°c humidity:≤85%
Storage Environment: temperature -30~60°c humidity:≤70%
Heat resistance: case of non-combustible plastic material
Voltage Testing: over 2000V
Fasterning: By means of nuts, absolutely safe, fast, robust, side-by -side


Model	Unit	A	B	C	D
DP-96	mm	96	92	75	10
	mm	3.74	3.62	2.95	0.39
DP-72	mm	72	58	75	9
	mm	2.83	2.68	2.95	0.35
DP-48	mm	48	44	110	8
	mm	1.89	1.73	4.33	0.31
