Product Specifications
| Prod Model: |
80 square shape |
| Markets: |
Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display: |
Digital |
| Electric Equipment: |
Single-phase |
| Theory: |
Electronic Meter |
| Usage: |
Meter for Industry and Home Use |
| Type: |
Ampere Meter |
| Installation: |
Flush Mount |
Product Description

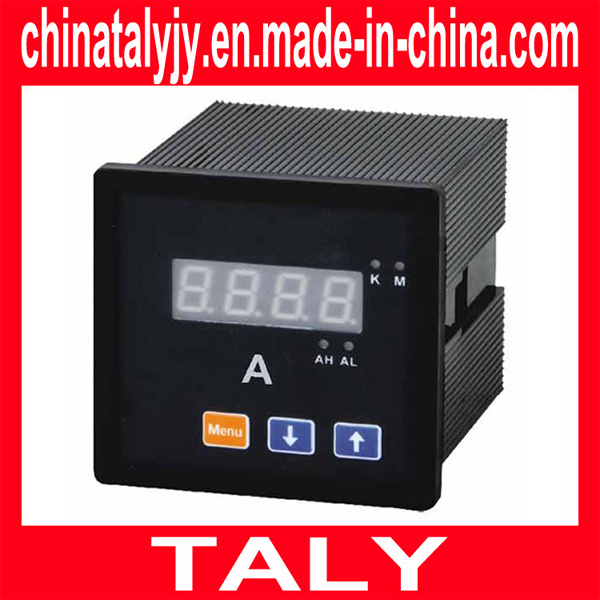

Single-phase DC Digital Meter for Measuring Current, Digital Current Meter
Overview:
For the intelligent single-phase digital ammeter, user can set the CT parameters through panel buttons, and can see directly the primary side running current in the display system with showing clear and beautiful. It also can directly replace traditional analog pointer meter with optional RS485 communication interface and upper and lower alarm and transmitter output, which is suitable for industrial and mining enterprises, civil construction, building automation and other modern distribution system as a high-performance automation instruments.
Standard configuration:
1. The meter measures high or low voltage single-phase current with digital zero calibration and high accuracy and cost.
2. Standard CTinput or 0-5A direct input.
3. Wide range of AC and DC common power AC/DC80-265V or AC 220V.
4. Single row of four LED digital real time displays, the meter can be displayed through the display panel buttons to set the value.
Note: The dimension of instrument is: 80 * 80mm, Hole size is 76 * 76mm.
Optional configuration:
1. RS485 communication interface (optical coupling isolation), ModBus RTU communication protocol.
2. One way programmable analog output, DC4-20mA DC 0-5V.
3. Relay alarm output. The parameters measured should be monitored on the lower and upper limit.
Technical index:
1. Nominal signal input: AC 1A, 5A
Over range: Instantaneous: 10 times / 5 seconds; Continuous: 1.2 times.
2. Measuring range: 0 ~ 6A. Directly input or access through a transformer.
3. Displaying range: 0.000 ~ 9999 A, KA, MA. Decimal point changes over automatically according to the range
4. Accuracy: 0.5%
5. Dielectric strength: IEC 60255-5 2KVrms-1min
6. Environmental carrying capacity: Work IEC 60068-1 and 2 0 ° C ~ 55 ° C
Save IEC 60068-1 and 2 -25 ° C ~ 70 ° C
Damp heat IEC 60068-1-3 93% RH 40 ° C
7. Using occasion: Non-corrosive gases and metal dust. Altitude <3000 m
8. Power supply and power consumption: AC (85 ~ 265) V or DC (100 ~ 275) V ≤ 5VA.
