Single Phase DIN Rail Electric Meter 2 Pole Kwh Meter with Two Wire LCD Display with RS485 Communication Energy Meter

Product Specifications

Prod Model:	DMS65
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Anti Fire Plastic
Current:	10/60A
Voltage:	230/240V
Frequency:	50/60Hz
Export Country:	Europe
DIN Rail Digital Meter Function:	Measure Consumption Power
Brand:	DIN Rail Digital Electronic Meter Client Design
Handle Sample Time:	5 Days
IEC Standard:	IEC62053-21
Color:	Client Design
Display:	Indicator
Installation:	Direct Connected
Usage:	Maximum Demand Meter
Electric Equipment:	Single-phase
Theory:	Static Meter
Power Meter Connection:	Terminal
Measured Signal:	Pulse Peak
Type:	Energy Meter

Product Description

2P LCD RS485 Without wire, long distance reading the data

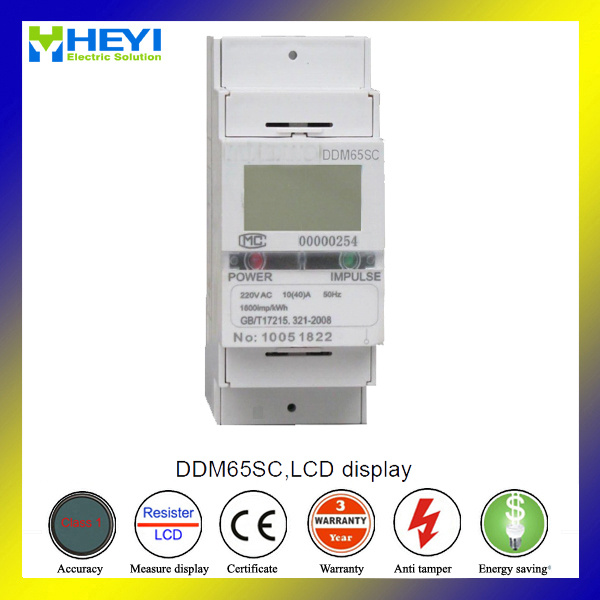

DMS65 Single Phase din Rail Electric Meter 2 Pole  kwh meter with  Two Wire LCD Display with rs485 communication energy meter
15/60A 230v 50/60HZ  LCD  display , Transparent reading window ,grey anti fire plastic case ,pcb with ct pt  and import ade7755 chips

Suit for 220V AC low voltage system
6 +1 digits LCD display (999999.9 kWh)
kWh accuracy class 0.5S
LED indicates pulse, reverse energy
3 keys for programming
CT programmable, pulse output
35mm DIN rail installing, standard DIN ED5002
High temperature resistant materials
Spring type buckle, easy to install
Standard: IEC62053-21/ 22/23, CE

Single Phase din Rail Electric Meter 2 Pole  kwh meter with  Two Wire LCD Display with rs485 communication energy meter  Technical Specification

Accuracy	Class 1.0
Rated voltage	110VAC,120VAC,127VAC,220VAC,230VAC,240VAC,etc.
Operation voltage range	Un±20%
Insulation capabilities	AC voltage withstand 2kV for 1 minute; Impulse voltage withstand 6kV - 1.2/50μs waveform
Rated current(A)	1.5(6), 5(30), 10(60), 20(80), 30(100),etc.
Operation current range	0.05Ib~ Imax
Starting current	0.004Ib
Rated frequency	50Hz or 60 Hz
Internal power consumption	Voltage circuit ≤1.0W 5VA; Current circuit ≤1VA(Ib)
Interface	Optical coupler (SO corresponding to DIN 43864)
Impulse valence Ra	0.5 or 1.0 Wh/imp
Max. operation temperature	-25°C ~ +70°C
Max. storage temperature	-30°C ~ +75°C
Relative humidity	≤ 85%
Service Life	More than 10 years

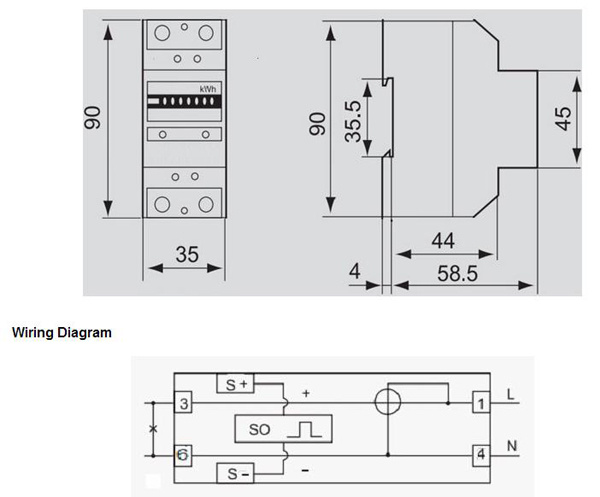

Dimension	125mm x 88mm x 73mm
Weight	Approx 650g


DMS65 Single Phase din Rail Electric Meter 2 Pole  kwh meter with  Two Wire LCD Display with rs485 communication energy meter  advantage
1.20 years global leading profession manufacture of energy meter
2.class 0.5~ class 1.0 high accuracy measure electrical ,low power loss
3.Test data: each meter will match relative test data
4.Fast delivery : you will get the order when you need it
5.wave welding PCB  with auto machine
6.OEM is warmly welcome
7.3 line assemble line ,10 pcs auto test bench for control accuracy ,10pc aging test which confirm the register working well
8.Convenient : 45 minutes to wenzhou airport

 DMS65 Single Phase din Rail Electric Meter 2 Pole  kwh meter with  Two Wire LCD Display with rs485 communication energy meter  function
1. High measure user consumption power
2.low power loss
3.uni direction register ,for anti tamper
4.no load ,the meter will caculate power

DMS65 Single Phase din Rail Electric Meter 2 Pole  kwh meter with  Two Wire LCD Display with rs485 communication energy meter  Payment terms
1. 30% T/T advance , the balance against to the copy B/Lor LC at sigh
2. The other specific issues can negorate.
3. Pls confirm the details with us before do the prepayment.

DMS65 Single Phase din Rail Electric Meter 2 Pole  kwh meter with  Two Wire LCD Display with rs485 communication energy meter  Packing information
1. Inside foam package ,outside strong paper package
2.80pcs/per CTN
3. G/N.W: 24/23kg
4. We can packing as your required,good looking design

Why choose  DMS65 Single Phase din Rail Electric Meter 2 Pole  kwh meter with  Two Wire LCD Display with rs485 communication energy meter
1).ISO9001,SGS,Gold golden supplier
2) Monthly Production Capacity -- 100000 Pcs
3)All goods examined before delivery by 10 QC staff
4)Prompt Reply Within 12 Hours
5)8000 square meters work environment
