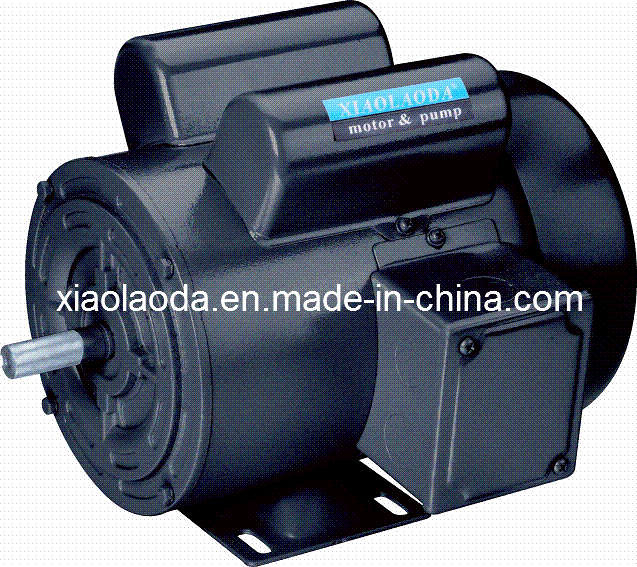

Single Phase Electric Motor - NEMA Capacitor Running Asynchronous Motor
Product Specifications
| Prod Model: |
NEMA48 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
NEMA single phase asynchronous electric motor Feature: The motor is designed and manufactured according to the USA NEMA standard and Canada standard. Novel pattern, excellent technics, reliable performance, low temperature, lower noise, high efficiency.
Usage Range: The capacitor-running ac motor is suitable for ventilation, medical instrument and the fields of light and none loading start.
Rated Voltage: 115/208-230V Rated Frequency: 60Hz
|
FR |
HP |
Volt |
FL. Amps |
RPM |
S. F |
Shaft Dia |
|
Capacitor electric motor |
|
42 |
1/6 |
115/230 |
2.6/1.3 |
1725 |
1 |
1/2 |
|
48 |
1/4 |
115/230 |
2.94/1.47 |
1725 |
1 |
1/2 |
|
48 |
1/3 |
115/230 |
4.2/2.1 |
1725 |
1 |
1/2 |
|
48 |
1/2 |
115/230 |
5.82/2.91 |
1725 |
1 |
1/2 |
|
48H |
3/4 |
115/230 |
8.41/4.21 |
1725 |
1 |
1/2 |
|
56 |
1 |
115/230 |
11.02/5.51 |
1725 |
1 |
5/8 |
|
Capacitor starting electric motor |
|
48 |
1/4 |
115/230 |
5/2.5 |
1725 |
1 |
1/2 |
|
48 |
1/3 |
115/230 |
6.4/2.1 |
1725 |
1 |
1/2 |
|
48 |
1/2 |
115/230 |
8.5/4.25 |
1725 |
1 |
1/2 |
|
56 |
3/4 |
115/230 |
10.9/5.45 |
1725 |
1 |
5/8 |
|
Double capacitor electric motor |
|
48 |
1/2 |
115/230 |
5.82/2.91 |
1725 |
1.1 |
1/2 |
|
48H |
3/4 |
115/230 |
8.41/4.21 |
1725 |
1.1 |
1/2 |
|
56 |
1 |
115/230 |
11.02/5.51 |
1725 |
1.1 |
5/8 |
|
56H |
1.5 |
115/230 |
15.2/7.6 |
1725 |
1.1 |
5/8 |
Zhejiang Huaming Electric Motor Co., Ltd founded in 1985 year, is located in Wenling city. Closes to 104 National Road, 15 minutes' driving to the Wenling Railway Station, high-speed road junctions and 30 minutes' driving to Huangyan airport, Only 3 hours'way to Ningbo Port.
The company is an enterprise covering design, production and sales, produce "XIAOLAODA" brand products, there are EU IEC standard three-phase electric motors Y, Y2, YD, YVF, YB2, YS series, single-phase motors YC, YL, YY series, and the USA NEMA standard single & three-phase motors, also many derived motors (meat machines motor, fruit juicer motors, food processing motors, etc ). Also we product submersibel pumps as QY, QX, WQD, IRG four series. We achieved a "national industrial product production license", "export product quality permit" and the products certificates, such as CCC, ISO9001, CE, TUV, and we can apply UL certificate for clients.
Our products are very popular in China, we have Right to Import and Export, we also widely export to Europe, Australia, and America market.
Any interests or doubts, Please Kindly contact us, the good cooperation come from this moment.
