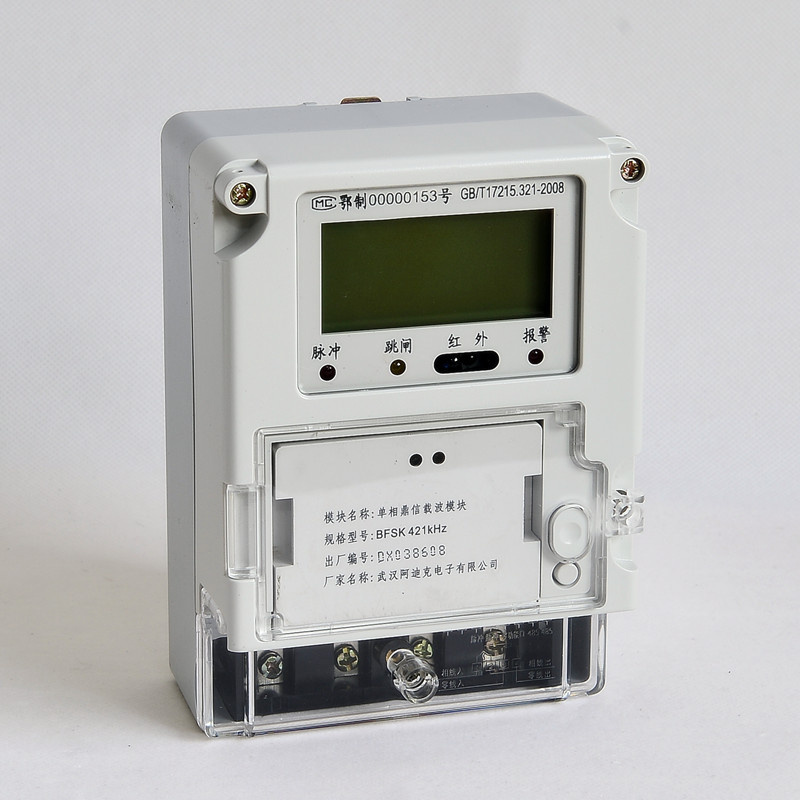

Product Specifications
| Prod Model: |
DDSY150 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Accurancy Class: |
2.0, 1.0 |
| Frequency: |
50Hz/60Hz |
| Power Consumption: |
Less Than 1W/Phase |
| Current: |
5(20)a, 10(40)a, 15(60)a, 10(60)a |
| Voltage: |
220V/230/240V |
| Display Method: |
Register/LCD/LED |
| Communication: |
Infrared/RS485 |
| Data Storage Period: |
More Than 10 Years |
| Clock Accuracy: |
Less Than 0.5s/Day |
| Brand: |
Radarking/OEM |
| Display: |
Digital |
| Installation: |
Direct Connected |
| Usage: |
Maximum Demand Meter |
| Electric Equipment: |
Single-phase |
| Theory: |
Electronic Meter |
| Power Meter Connection: |
Terminal |
| Measured Signal: |
Pulse Peak |
| Type: |
Energy Meter |
Product Description
Features:
Active energy measurement
IC card prepayment system
Specified large-scale IC adopted
Anti-tamper function
Multi-tariff available
Scroll display enable users to check efficiently
Unique encryption technique registers meter with the exclusive IC card
Specified function card equipped to enable registration and maintenance
Short credit alarm available
Proofing and correcting function programmed to ensure data is correct and reliable
IC card transfers consumption data to work station automatically
Over load disconnection
Function IC card is ISO standard approved
Overdraft function ON/OFF
Power off memory function to ensure data last for 10 years
Consumption history recordable, and energy freeze function available
Multi interface: RS485, infrared,
| Accuracy | 1.0/2.0 |
| Rated Voltage | 220V/230C/240V AC |
| Rated Current | 5(60)A/10(60)A |
| Rated Frequency | 50Hz/60Hz |
| Meter Constant | 1000imp/kWh |
| VoltageRange | 80%Un~120%Un |
| IP Lenel | IP54 |
| Start Current | 0.4% lb |
| Voltage Circuit Power | 10VA |
| Current Circuit Power Consumption | ≤0.8VA |
| CommunicationPort | RS485*/Infrared |
| Prepayment Method | ESAM Module Encryption+IC Card |
Wuhan Radarking Electronics Corp. is a high-tech corporation which established in 2002. As professional manufacture in meters, our mainly products including: Full Digital IC Card Prepayment Electronic Meters, Smart Electronic Meters, IC Card Prepayment Water Meters, Gas Meters as well as Meter (network) Reading System. We are one of the few manufacturers in Hubei Province whose annual production of electronic meters and water meters can be up to 2.4 million sets.
Employee: There are more than 200 employees including 50 technicians, 10 senior technical staff and 70 employees who have already got college degree, 30 of them obtained metrological verification certificate. Production and technical staff all undergo a rigorous pre-service training, who are skilled and have a strong sense of quality.
Technology: We have a R & D group of 20 persons (About 10% of the company's employees).
Equipment: We have 260 sets of production and testing equipments, including 7 production lines, more than 20 units of the calibration device such as wave soldering machine, reflow soldering machine, automatic placement machine, plug-in assembly lines, assembly lines, packing lines and etc, which have all meet the production requirement.
Material: Materials are in strict accordance with the requirements of the meters and the procurement of national standards, we have already established a qualified supplier evaluation system, and developed a series of test standard. All the materials have to pass strict test before entering into factory, and then be used in production. Measures have been taken to prevent damp and static electricity to ensure the normal performance of the raw materials.
Craft: To make a variety of electronic meters in accordance with the production process, we have developed process documents, to ensure the quality of the products.
Test: We have electronic meter laboratory and full range of test equipments, such as EMC Equipment (ESD, EFTB, SURGE, RF, Attenuation Oscillasion Impulse, DIP, Impulse Current, Pulsed Voltage and etc), Environmental Test Equipment (Alternating Temperature Humidity Test Chamber, Dust Test Devices, Waterproof Test Device, Shock Test Device, Vibration Test Device and etc), R&D Testing Equipment. We make a variety of electronic meters in accordance with the test and develop our test documents to ensure the quality of the products.
Environment: Our production base covers an area of 30 acres, and self-building workshop covers an area of 7000 square meters, production and storage area covers more than 5000 square meters.
Management: We have a high efficiency, innovative, serious management team, and the factory has already passed ISO9001-2008 QMS.
