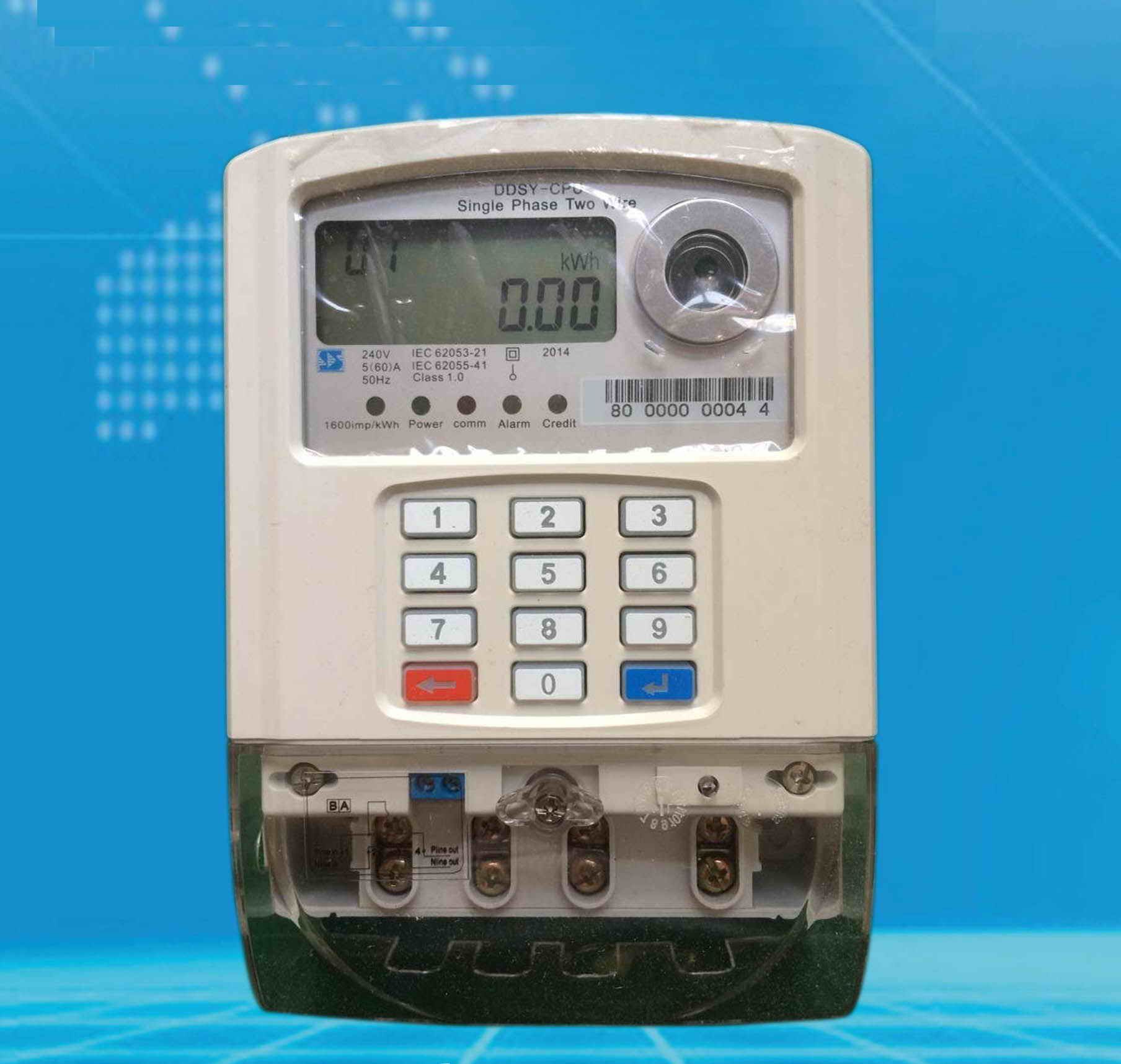

Single Phase Key-Pad Prepaid Electronic Energy Meter (DDSY823)
Product Specifications
| Prod Model: |
DDSY823 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Current(a): |
5(60) |
| Rated Voltage(V): |
230 |
| Accuracy: |
1.0 |
| Display: |
Digital |
| Installation: |
General Installation Meter |
| Usage: |
Prepayment Meter |
| Electric Equipment: |
Single-phase |
| Theory: |
Static Meter |
| Type: |
Energy Meter |
| Certification: |
Sts |
Product Description
1. Introduction:
Because the card meter the existence of various risks such as bayonet or the sensor (reader) vulnerable, the card is not easy keeping, easy to damp circuit boards, etc., and key-press code type prepayment meter pioneered prepayment code control technology, users can Easy and convenient way to purchase a variety of resources (electricity, water, gas), greatly reducing operator management and operational costs. Key-press code Meter installed the security module encryption algorithms inside, so that the code meter has a very high security. With long service life, anti-jamming and anti-attack capability, and wide voltage and wide temperature operating range and other characteristics can be achieved electricity, water, gas to be charged together, as well as is electricity, water, gas best choice of charging methods, monitoring methods and management.
2. Meter Function
2.1 Measurement Function Specifications
-Measure active power, The total active energy consumption = Positive active energy consumption+ Negative active energy consumption, measuring range 000000.00~999999.99 kWh, 6 digits integral 2 digits decimals.
2.2Measure Function
-Measure positive active energy consumption, negative active energy consumption, voltage, current, instantaneous power.
2.3.Data Storage
-64K NV EEPROM,Record total energy consumption,residual energy consumption,events,recharge recording.
2.4.LCD Display with Backlight.
2.5.Communication Function
-With IR communication port, accord with the standard IEC62056-21. Users can get through the PC software to read and set parameters of the meter.
2.6. LED indication
2.7.Overload
2.8. Anti-theft
2.9 Event Record
2.10.Prepaid Function
2.11.Meter Failure:
When energy meter is in failure, such as data storage error, the meter will automatically prompt error, and immediately disconnect relay, LCD display ERR....3.Specification
-Sigle Phase Two Wires
-Rated Voltage:230 VAC
-Working Current:5A~60A
-Frequency:50/60Hz
-Connection Way:Direct Connect
-Standard:IEC62055-41, IEC62055-51,STS531
