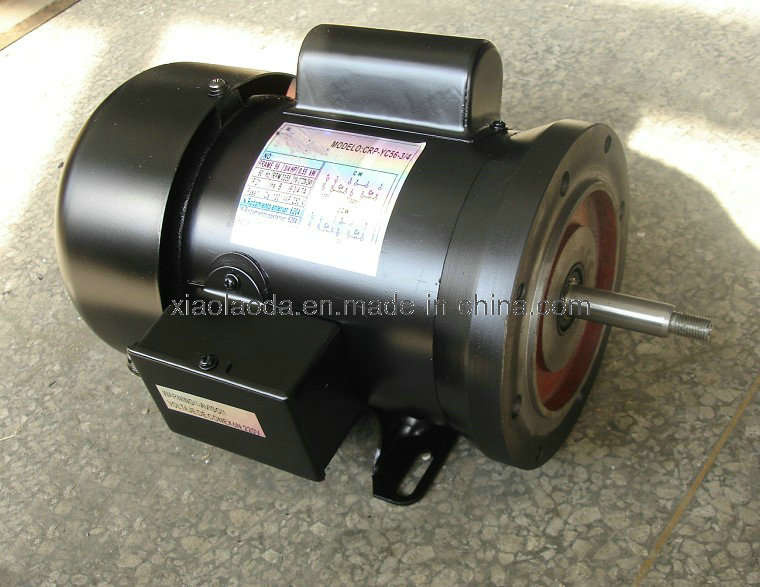

High quality single phase NEMA asynchronous electric motor
NEMA standard. Standard Series Single Phase Asynhronous Motor is designed and manufactured according to USA standard and Canada standard.
NEMA seiries single phase asynhronous motor has the strong pointslike novel pattern, excellent technics and reliable performance. The motor features by low temperature rise, low noise and vibration, as well as high efficiency.
The voltage of the series motor is 115/208-230, and the frequency is 60Hz. Among the series of motors, the capacitor start andtwo-valued capacitor motor is suitable for air compressor, small machine tool and other fields requiring higher starting torque. The capacitor-running motor is suitable for ventilation, medical instrument and the fields of light and none loading when starts.
Our company also produce many other kinds of pump.
|
FR |
HP |
Volt |
FL. Amps |
RPM |
S. F |
Shaft Dia |
|
Capacitor electric motor |
|
42 |
1/6 |
115/230 |
2.6/1.3 |
1725 |
1 |
1/2 |
|
48 |
1/4 |
115/230 |
2.94/1.47 |
1725 |
1 |
1/2 |
|
48 |
1/3 |
115/230 |
4.2/2.1 |
1725 |
1 |
1/2 |
|
48 |
1/2 |
115/230 |
5.82/2.91 |
1725 |
1 |
1/2 |
|
48H |
3/4 |
115/230 |
8.41/4.21 |
1725 |
1 |
1/2 |
|
56 |
1 |
115/230 |
11.02/5.51 |
1725 |
1 |
5/8 |
|
Capacitor starting electric motor |
|
48 |
1/4 |
115/230 |
5/2.5 |
1725 |
1 |
1/2 |
|
48 |
1/3 |
115/230 |
6.4/2.1 |
1725 |
1 |
1/2 |
|
48 |
1/2 |
115/230 |
8.5/4.25 |
1725 |
1 |
1/2 |
|
56 |
3/4 |
115/230 |
10.9/5.45 |
1725 |
1 |
5/8 |
|
Double capacitor electric motor |
|
48 |
1/2 |
115/230 |
5.82/2.91 |
1725 |
1.1 |
1/2 |
|
48H |
3/4 |
115/230 |
8.41/4.21 |
1725 |
1.1 |
1/2 |
|
56 |
1 |
115/230 |
11.02/5.51 |
1725 |
1.1 |
5/8 |
|
56H |
1.5 |
115/230 |
15.2/7.6 |
1725 |
1.1 |
5/8 |
Zhejiang Huaming Electric Motor Co., Ltd founded in 1985 year, is located in Wenling city. Closes to 104 National Road, 15 minutes' driving to the Wenling Railway Station, high-speed road junctions and 30 minutes' driving to Huangyan airport, Only 3 hours'way to Ningbo Port.
The company is an enterprise covering design, production and sales, produce "XIAOLAODA" brand products, there are EU IEC standard three-phase electric motors Y, Y2, YD, YVF, YB2, YS series, single-phase motors YC, YL, YY series, and the USA NEMA standard single & three-phase motors, also many derived motors (meat machines motor, fruit juicer motors, food processing motors, etc ). Also we product submersibel pumps as QY, QX, WQD, IRG four series. We achieved a "national industrial product production license", "export product quality permit" and the products certificates, such as CCC, ISO9001, CE, TUV, and we can apply UL certificate for clients.
Our products are very popular in China, we have Right to Import and Export, we also widely export to Europe, Australia, and America market.
Any interests or doubts, Please Kindly contact us, the good cooperation come from this moment.
