Product Specifications
| Prod Model: |
YD10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Pad Mounted 15kv/Mva 1 Mva Power Transformer |
| Material: |
Oil,CRGO,Copper |
| Transformer Type: |
Pad Mounted Transformer 15kv/Mva |
| Install Method: |
Pad Mounted Transformer |
| Rated Capacity: |
1 Mva |
| Package: |
Wooden Case |
| Place Of Orignal: |
Zhejiang,China |
| Color: |
Gray,Green or Customized |
| Radiator Design: |
Can Be Customized |
| Apply Standard: |
IEC60076/ANSI/GB |
| Application: |
Power |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Two-winding Transformer |
| Certification: |
Ctqc |
| Brand: |
Farady |
Product Description

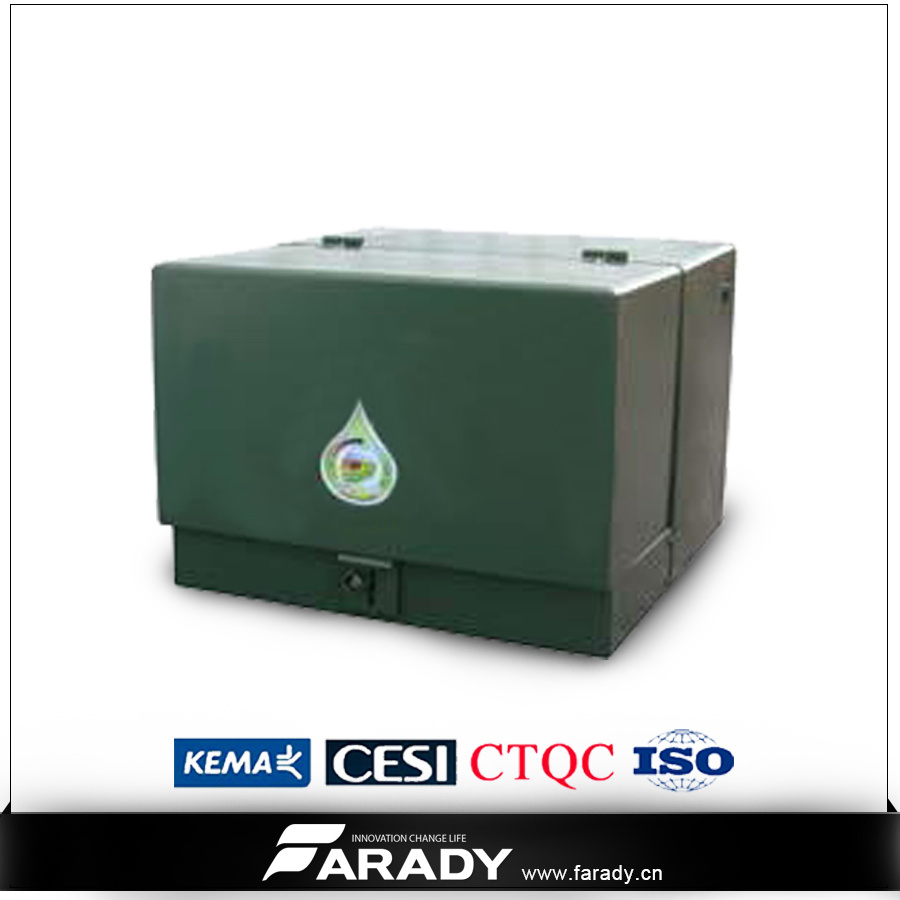

single phase pad mounted 15kv 800kva power transformer
Our single phase and three phase pad-mounted distribution transformer is commonly used in various places including rural areas, remote regions and scattered villages to provide high quality power supply for daily lighting, agricultural production and industrial plants. Aside from these, it is also suitable for the energy saving projects for railway and urban grid.
++++ Feature:
1)Liquid-filled
2)dead front
3))separable,insulated,high-voltage connectors,radial or loop feed
4)standard or customer specific rating & configuration available,with a range of 10-167kVA
| KVA | Volumen
aceite(Lt.) | Peso aprox.(Kg.) | A | B | C | D | E |
| 30 | 253 | 552 | 1050 | 1310 | 970 | 470 | 380 |
| 45 | 296 | 637 | 1070 | 1340 | 1000 | 470 | 380 |
| 75 | 318 | 744 | 1100 | 1340 | 1000 | 470 | 380 |
| 112.5 | 405 | 919 | 1100 | 1340 | 1000 | 470 | 480 |
| 150 | 429 | 995 | 1145 | 1340 | 1195 | 470 | 480 |
| 225 | 560 | 1251 | 1270 | 1400 | 1290 | 470 | 540 |
| 300 | 682 | 1548 | 1320 | 1400 | 1395 | 470 | 610 |
| 400 | 694 | 1775 | 1390 | 1400 | 1340 | 470 | 590 |
| 500 | 798 | 2072 | 1440 | 1540 | 1415 | 470 | 600 |
| 630 | 989 | 2527 | 1530 | 1620 | 1480 | 470 | 630 |
| 750 | 1105 | 2867 | 1660 | 1640 | 1450 | 470 | 620 |
| 1000 | 1432 | 3590 | 1680 | 1790 | 1560 | 470 | 710 |
Pckaging&Shipping
Long time shipment & Seaworthy wooden box
Wooden package optional:
1,choose one unit/ wooden box
2,choose 2unit/ wooden box to save cost
FAQ
1,Why I buy Farady transformer
After compare quality,delivery and price you will find out answer
2,How is your farady electrical transformer waranty
12+12month after manufacture date,you total got 2 year waranty
3,Is that possible to be one of distributor of Farady Electric in my country
Yes,once you action is fast enough
4,More question......
Feel free to contact you you will get immediately reply
