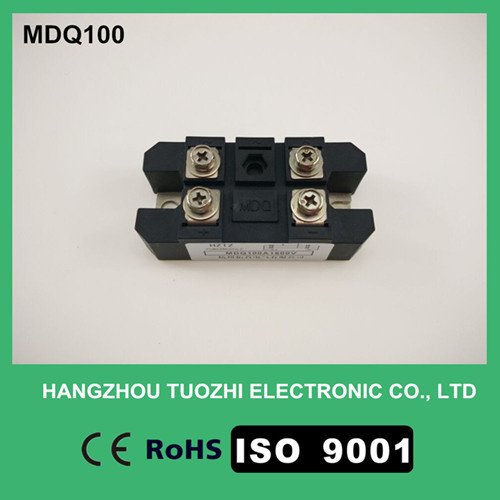

Single Phase Rectifier Power Diode Module 100A 1600V Mdq100-16

Name: Single Phase Rectifier Power Diode Module 100A 1600V Mdq100-16
Brand: China-Manufacturer-Directory.com
SKU: 705359632
Availability: InStock
Rating: 4.4 (23 reviews)

Supplier:	Hangzhou Tuozhi Electronic Co., Ltd
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	MDQ100-16

Product Description

Style No.: MDQ100

Features:
Isolation voltage: 2500V~
Planar passivated chips.
Low forward voltage drop.
Package with screw terminals, space and weight saving.
Improved temperature and power cycling.

Application:
PWM frequency converter rectifying power, DC Power, Rectifying power, Battery Charging DC power etc.

Specification:

Symbol	Definition	Test condition	Junction temp.Tj (ºC)	Value			Unit
Symbol	Definition	Test condition	Junction temp.Tj (ºC)	Min	Typical	Max	Unit
IO	DC Output Current	Single phase full wave rectified current, Tc=100ºC	150			100	A
VRRM	Reverse repetitive peak voltage	VRRM tp=10ms VRSM=VRRM+200V	150	1200	1600	1800	V
IRRM	Reverse repetitive peak current	VRM=VRRM	150			5	mA
IFSM	On-state non-repetitive surge current	10ms bottom width, sinusoidal half-wave	150			1.2	KA
I2t	surge current average time integration	VR=0.6VRRM	150			7.2	103A2S
VFO	threshold voltage					0.8	V
rF	slope resistance		150			4.5	mΩ
VFM	On-state peak voltage	IFM=100A	25		1.15	1.3	V
Rth(j-c)	thermal impedance junction to case	180°sine half-wave, Single-sided heat dissipation				0.2	ºC/W
Rth(c-h)	thermal impedance case to heatsink	180° sine half-wave, Single-sided heat dissipation				0.07	ºC/W
Viso	Insulation voltage	50HZ, R.M.S, t=1min Iiso:1Ma(max)		2500			V
Fm	mounting torque(M5) mounting torque(M6)				4.0 6.0		N·m N·m
Tsbg	Storage temperature			-40		125	ºC
Wt	weight				170		g
