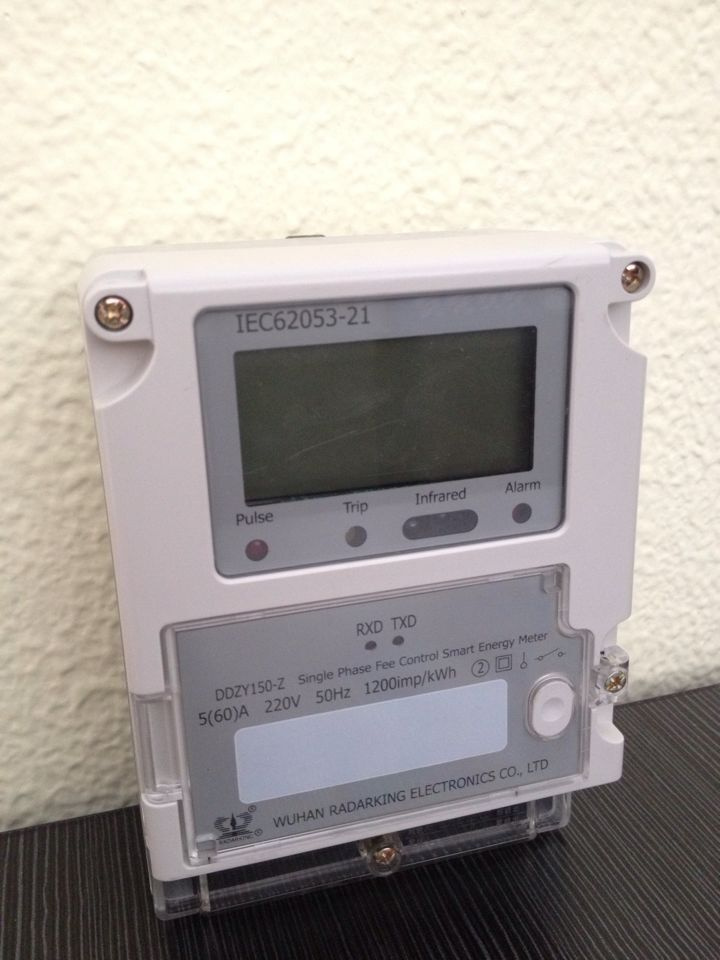

Single Phase Fee Control Smart Electric Meter is a smart metering device with special design for nation smart grid. With independent infrared, RS485, carrier communication and IC card interface, it can support for remote or local fee control function. The meter has advantages of high accuracy, good linearity, wide range and long life, which can widely used in city, country or school and any enterprise.
Main Functions
Measuring function:
Meter have two measuring elements - one in phase and other in neutral path. Meter can measure import & export active energy, import & export reactive energy. The measurement type can be set.
Display function
Meter have two status: Cycle display status and button press display. When pressing the button, User can set according their request. Button press will Backlight the LCD. Display cycle can be set within 5~20 seconds, The default is 5 seconds.
Electricity parameters measurement and monitoring
Measure record and display voltage, current, power and power factors. Error is not more than ± 1%. Provide out of limit monitoring capability, Voltage, Current, Power factor can be setup the limit value and monitoring.
Load Profile function
60 days data to be recorded with 15 minutes integration period for kWH, kVArH (lag) kVArH (lead), Average Voltage, Average Current, Power Factor, Frequency.
Time of Use function
Support 8 tariff registers / 12 time zones per day can be remotely programmable (OTA) for the changing values, currency etc.
Tamper/Event recording function
A total of last 50 events considering all tampers defined must be detected and logged as tamper events on first in first out basis along with date & time of occurrence and restoration, total tamper counts with tamper identification. Snapshot of kWh, V and I shall be recorded along with the following tamper events.
Cover open detection – First instance
Phase and neutral are interchanged
Neutral disturbance
Magnetic Interference
Missing Potential
Alarm function
Alarm for power on/off, Under Voltage, Over Voltage, Over Current, Mal functioning of relay
Punctual delivery time:
We carry out your order into our production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.
After sales service:
We pay high attention to your feedback when receive the goods.
We provide 12 months warranty after goods arrive.
We promise all parts available in lifetime use.
We positively deal with your complain within 48hours.
Professional sales:
We value every inquiry sent to us, ensure quick competitive offer.
We cooperate with customer to bid tenders. Provide all necessary documents.
We are a sales team, with all technical support from engineer team.
| Voltage(v) | 240V |
| Operational voltage | 60%-120%Un |
| Frequency | 50/60 Hz ±5% |
| Current | 5(60)A |
| Start current | 20mA |
| Power consumption of current circuits at TA(VA) | < 1VA |
| Power consumption of voltage circuits(W) | < 2W |
| Operational temperature | -25 °C to +55 °C |
| Transport and storage range | -40 °C to +85 °C |
| Humidity | <=95% RH; non-condensing |
| Timing | ±0.5 seconds per day |
| TOU registers | Tariff:8;Season:6 ; week: 6; day scheme: 6; interval period: 12; holidays: 200 |
| Accuracy |
| Current | ± 0.5% |
| Voltage | ± 0.5% |
| Frequency | ± 0.1Hz |
| Active power | ± 1% |
| Reactive power | ± 1% |
| Data communications | PLC |
| Data logging intervals | User-selected at 5,10,15,30,60minutes |
Wuhan Radarking Electronics Corp. is a high-tech corporation which established in 2002. As professional manufacture in meters, our mainly products including: Full Digital IC Card Prepayment Electronic Meters, Smart Electronic Meters, IC Card Prepayment Water Meters, Gas Meters as well as Meter (network) Reading System. We are one of the few manufacturers in Hubei Province whose annual production of electronic meters and water meters can be up to 2.4 million sets.
Employee: There are more than 200 employees including 50 technicians, 10 senior technical staff and 70 employees who have already got college degree, 30 of them obtained metrological verification certificate. Production and technical staff all undergo a rigorous pre-service training, who are skilled and have a strong sense of quality.
Technology: We have a R & D group of 20 persons (About 10% of the company's employees).
Equipment: We have 260 sets of production and testing equipments, including 7 production lines, more than 20 units of the calibration device such as wave soldering machine, reflow soldering machine, automatic placement machine, plug-in assembly lines, assembly lines, packing lines and etc, which have all meet the production requirement.
Material: Materials are in strict accordance with the requirements of the meters and the procurement of national standards, we have already established a qualified supplier evaluation system, and developed a series of test standard. All the materials have to pass strict test before entering into factory, and then be used in production. Measures have been taken to prevent damp and static electricity to ensure the normal performance of the raw materials.
Craft: To make a variety of electronic meters in accordance with the production process, we have developed process documents, to ensure the quality of the products.
Test: We have electronic meter laboratory and full range of test equipments, such as EMC Equipment (ESD, EFTB, SURGE, RF, Attenuation Oscillasion Impulse, DIP, Impulse Current, Pulsed Voltage and etc), Environmental Test Equipment (Alternating Temperature Humidity Test Chamber, Dust Test Devices, Waterproof Test Device, Shock Test Device, Vibration Test Device and etc), R&D Testing Equipment. We make a variety of electronic meters in accordance with the test and develop our test documents to ensure the quality of the products.
Environment: Our production base covers an area of 30 acres, and self-building workshop covers an area of 7000 square meters, production and storage area covers more than 5000 square meters.
Management: We have a high efficiency, innovative, serious management team, and the factory has already passed ISO9001-2008 QMS.
