Product Specifications
| Prod Model: |
STM71/SGM71L/STM73/SGM73L, etc. |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Lifetime: |
>10 Years |
| Accuracy: |
Class 1.0; Class 2.0 |
| Operation Humidity: |
≤100%Rh |
| Power Consumption: |
≤1.0W, 8va |
| Operating Temperature: |
-25°c to 55°c |
| Operating Voltage: |
0.7un-1.3un |
| Max, Display Value: |
99999.9 |
| Dimension: |
Customized |
| Frequency: |
50,60Hz |
| Power: |
1.0W,8V a |
| Display: |
Digital |
| Installation: |
General Installation Meter |
| Usage: |
Maximum Demand Meter |
| Electric Equipment: |
Single-phase |
| Theory: |
Electronic Meter |
| Power Meter Connection: |
Terminal |
| Measured Signal: |
Continuous Wave |
| Type: |
Energy Meter |
Product Description

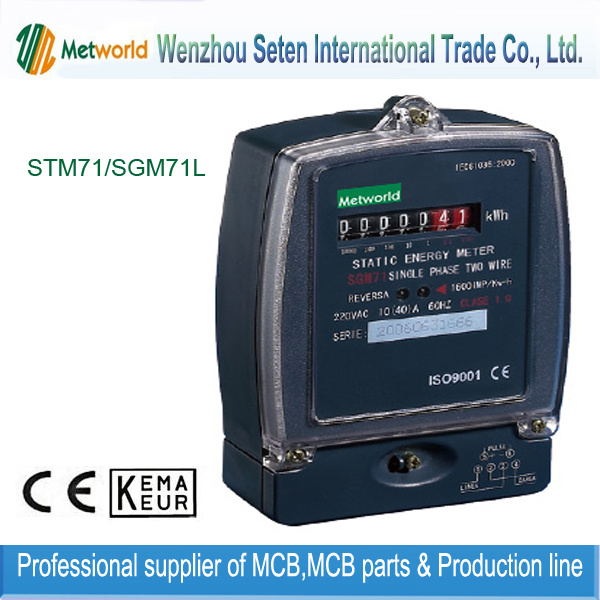

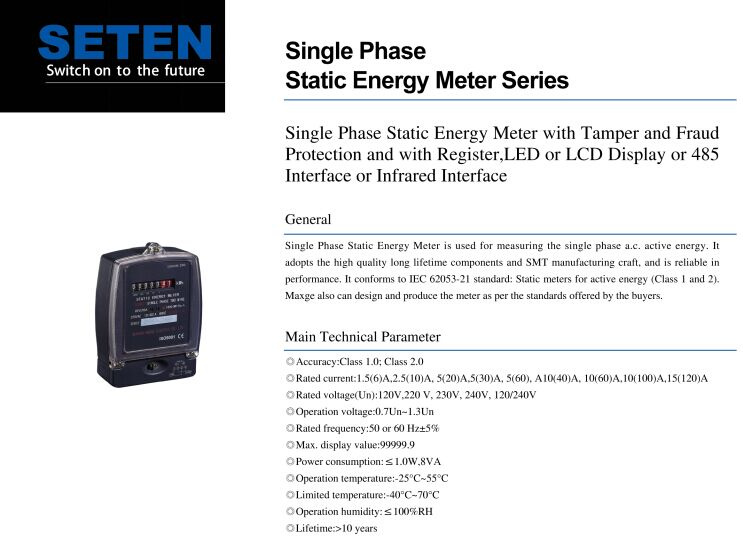

Single Phase Static Energy Meter with Tamper and Fraud
Protection and with Register, LED or LCD Display or 485
Interface or Infrared Interface.
General
Single Phase Static Energy Meter is used for measuring the single phase a. C. Active
Energy. It adopts the high quality long lifetime components and SMT manufacturing craft, and is reliable in performance. It conforms to IEC 62053-21 standard: Static meters for
Active energy (Class 1 and 2).
Seten also can design and produce the meter as per the standards offered by the
Buyers.
Main Technical Parameter
Accuracy: Class 1.0; Class 2.0
Rated current: 1.5(6)A, 2.5(10)A, 5(20)A, 5(30)A, 5(60), A10(40)A, 10(60)A,
10(100)A, 15(120)A
Rated voltage(Un): 120V, 220 V, 230V, 240V, 120/240V
Operation voltage: 0.7Un~1.3Un
Rated frequency: 50 or 60 Hz± 5%
Max. Display value: 99999.9
Power consumption: ≤1.0W, 8VA
Operation temperature: -25° C~55° C
Limited temperature: -40° C~70° C
Operation humidity: ≤100%RH
Lifetime: >10 years

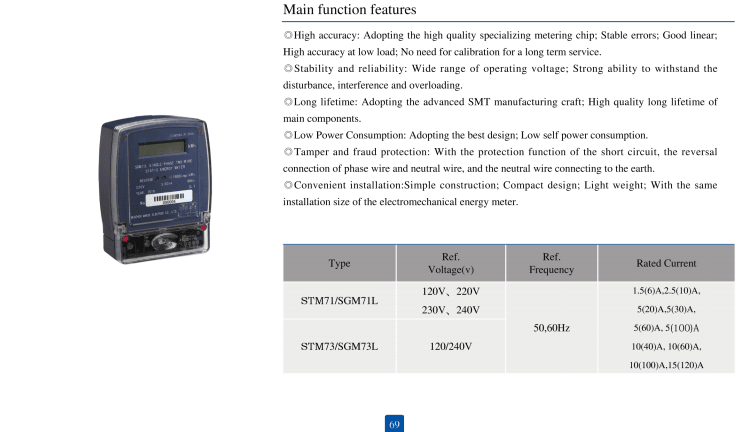

Main function features
High accuracy: Adopting the high quality specializing metering chip;
Stable errors; Good linear;
High accuracy at low load; No need for calibration for a long term service.
Stability and reliability: Wide range of operating voltage; Strong ability to withstand the
Disturbance, interference and overloading.
Long lifetime: Adopting the advanced SMT manufacturing craft; High quality
Long lifetime of main components.
Low Power Consumption: Adopting the best design; Low self power consumption.
Tamper and fraud protection: With the protection function of the short circuit,
The reversal connection of phase wire and neutral wire, and the neutral wire
Connecting to the earth.
Convenient installation: Simple construction; Compact design; Light weight;
With the same installation size of the electromechanical energy meter.
Catalogue
Number |
Ref.
Voltage(v) |
Ref.
Frequency |
Rated Current |
S T M71/SGM71L |
120V ~ 220V
230V ~240V |
50, 60Hz |
1.5(6)A, 2.5(10)A, 5(20)A, 5(30)A, 5(60)A, 5(100)A,
10(40)A, 10(60)A, 10(100)A, 15(120)A |
S T M73/SGM73L |
120/240V |
50, 60Hz |
1.5(6)A, 2.5(10)A, 5(20)A, 5(30)A, 5(60)A, 5(100)A,
10(40)A, 10(60)A, 10(100)A, 15(120)A |
