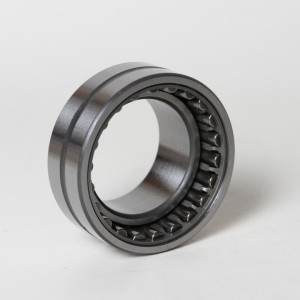

Single Row Needle Roller Bearing with Inner Ring (NA4924)
Product Specifications
| Prod Model: |
NA4924 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
120mm*165mm*45mm |
| Inner Ring: |
with Inner Ring |
| Cage: |
Steel Cage |
| Rolling Body: |
Roller Bearings |
| Separated: |
Unseparated |
| The Number Of Rows: |
Single |
| Load Direction: |
Radial Bearing |
| Material: |
Bearing Steel |
| Outer Dimension: |
165mm |
Product Description
Single Row Needle Roller Bearing with Inner Ring (NA4924)
Dimension series 49, to DIN 617/ISO 1206
|
d |
120 mm |
|
|
|
D |
165 mm |
|
|
|
B |
45 mm |
|
|
|
|
|
F |
135 mm |
|
|
|
r min |
1,1 mm |
|
|
|
s |
2 mm |
|
Axial displacement |
|
|
|
m |
2860 g |
|
Mass |
|
C r |
205000 N |
|
Basic dynamic load rating, radial |
|
C 0r |
390000 N |
|
Basic static load rating, radial |
|
C ur |
64000 N |
|
Fatigue limit load, radial |
|
n G |
3400 1/min |
|
Limiting speed |
|
n B |
2200 1/min |
|
Reference speed |
Established in 2006, Wuxi BLS Bearing Technology Co. Ltd. Is one of the leaders in bearings production of all design types in China. Our company is located in Wuxi city, near Shanghai, where there is convenient transportation of sea and air. This location is a powerful assurance for short delivery time and good customer service. We service manufacturers and parts supply houses in Europe, Asia, Africa as well as the Chineses.
The company product range is more than 1500 standard types of ball and roller bearings, like deep groove ball bearings, self-aligning bearings, angular contact bearings, thrust bearings, spherical plain bearings, needle roller bearings, insertbearings, hub bearings, linear bearings, etc. All of our bearings are manufactured under certification ISO/TC4, , GB-T 305-1998, etc.
The bearing products and accessories are supplied to a wide range of applications, including skateboards, cars, exhibition booth equipment, and most industrial sectors. No matter how harsh applicable occasions are, we have perfect bearings solutions.
Due to the impeccable quality and considerable amount of technical support, Wuxi BLS Bearing Technology Co. Ltd is the best choice of bearing purchasing agent and importers. Request a quote or simply contact us with your questions.
