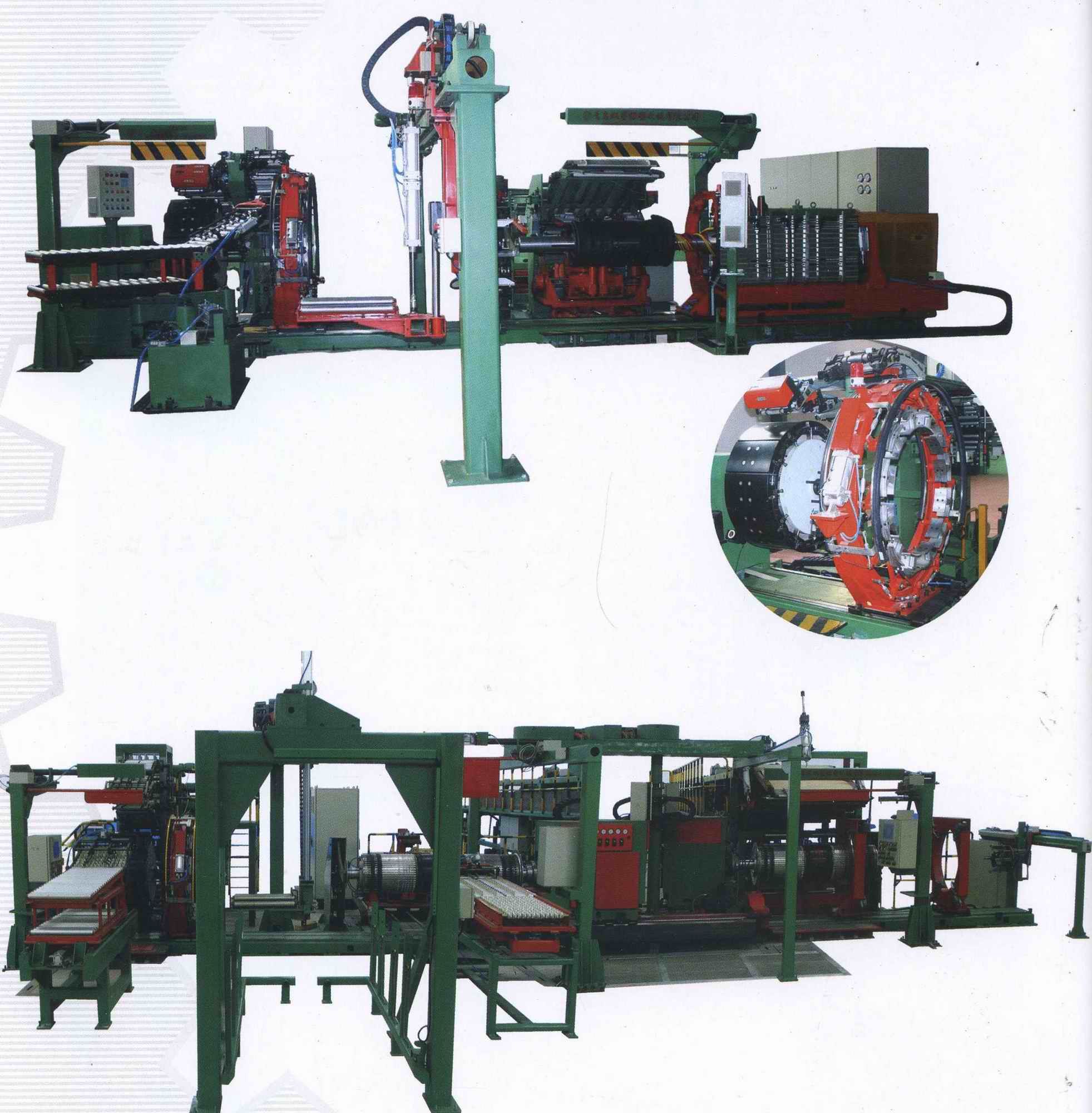

Single Stage TBR Tire Building Machine (LCZ-3B)

Name: Single Stage TBR Tire Building Machine (LCZ-3B)
Brand: china-manufacturer-directory.com
SKU: 662167892
Availability: InStock
Rating: 4.5 (85 reviews)

Supplier:	Qingdao Newdesen Industry Co., Ltd.
Price:	Negotiable
Min Order:	1Set
Quantity::
Trade Terms:	By Vessel

Product Specifications

Prod Model:	LCZ-3B
Type:	Tire Machinery
Type Of Tire Machinery:	Tire Building Machine

Product Description

We are one of the biggest manufacturers of rubber machinery in China. All steel radial tyre single stage building machine is used to build all kinds of all steel load-duty radial tyre. It is the advanced combination of mechanism, electricity and pneumatic system.

This building machine works for shaping TBR tires from 7.00 to 12.00.

Model	LCZ-3B	LCZ-3C	LCZ-3G
Bead diameter	17.5''-24.5''	17.5''-24.5''	17.5''-24.5''
Bead setting width mm	260-850	260-850	260-850
Tire specification	7R17.5-12R24	7R17.5-12R24	7R17.5-12R24
Accessory drum diameter mm	I. 680-860 II 800-1060 III 940-1150	680-1150	850-1100-1210 (Standard)
Standard accessory drum width mm	360	360	450
Max. clamping diameter of transfer loop	1200	1200	1250
Drum shoulder stroke mm	Max300	According to act drum stroke	According to drum plane width
Belt ply width	Max300	Max300	50-370
Inner-liner width mm	Max850	Max850	Max1000
Steel cord fabric width mm	Max950	Max950	Max1100
Chafer width mm	Max185	Max185	Max185
Chafer adjust range mm	Inside pitch 380-800	Inside pitch 380-800	Inside pitch/Max outside pitch of chafer:380-1100
Tire sidewall width mm	Max 400	Max 400	Max 400
Apex width mm	Max165	Max165	Max160
Tread width mm	Max350	Max350	Max450
AC power	AC380V,50HZ, 3-P, 28Kw	AC380V,50HZ, 3-P, 28Kw	AC380V±10%,50HZ, 3-P, 60Kw
Compressed air	0.7Mpa,15m 3 /h	0.7Mpa,15m 3 /h	0.7Mpa,28m 3 /h

Qingdao Newdesen Industry Co., Ltd. is one of the leading manufacturers of rubber machinery in China and located in Jiaonan, Qingdao, China and has got ISO9001 quality system certificate.

The main products are semi-steel radial tire building machine (First stage and second stage), all-steel radial tire building machine (Two drum and three drum), tire curing press (45, 48, 55, 63.5, 65.5 inches), all kinds of conveyor belt press-lines, all kinds of batch off and large two-roll mixing mill series, etc. Our company can also design and manufacture all kinds of non-standard rubber machines according to the requirement of clients. We can provide the service for large projects including machines and technology of bias tire, all-steel radial tire, semi-steel radial tire and all kinds of conveyor belt, etc.
