Product Specifications
| Prod Model: |

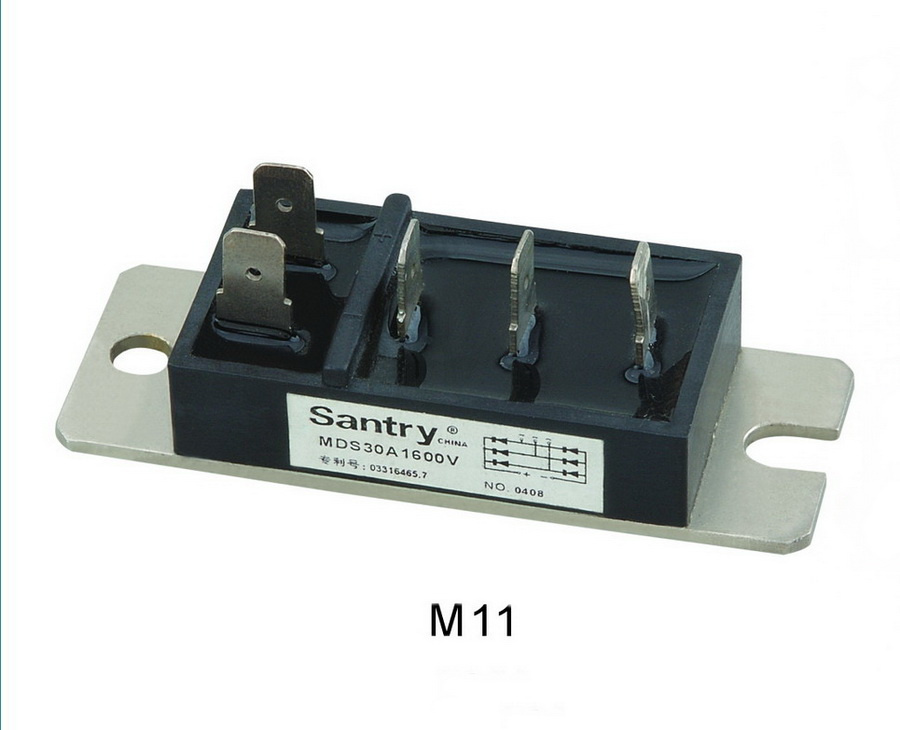

M11 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Western Europe |
| Material: |
Element Semiconductor |
| Manufacturing Technology: |
Logic IC |
| Package: |
Industrial Standard Package |
| Type: |
Three Phase Diode Bridge Rectifier |
Product Description
Features
Robust plastic case with screw terminals
Large, isolated base plate
Blocking voltage to 1600 V High surge currents
Easy chassis mounting
MDQ = single phase bridge rectifier
MDS = three phase bridge rectifier
Applications
Single and three phase rectifiers for power supplies Input rectifiers for variable frequency drives
Rectifiers for DC motor field supplies
Battery charger rectifiers
Electrical Characteristics
Io: 30-50A
VRRM: 600-2000V
Maximum Repetitive Peak Reverse Current IRRM: 8mA
Maximum Forward Voltage Drop VFM: 1.25V
Founded in 1986, WENZHOU ZHONGBAO ELECTRIC & ELECTRONIC FACTORY has long been focused on research and development of power semiconductor modules. Today our business covers arm bridge modules, single /three phase bridge rectifiers, half bridge modules as well as 3 phase bridge + SCR, over ten series and hundreds items.
A lot of attentions have been paid to the quality control. All those components and materials used in our products are highly qualified and of reliable properties. We believe in that honesty is the most important thing in a business relationship. With our promise of fine quality, competitive price and efficient service, we hope to build long-term business relationship with worldwide clients. Thank you!
