Guangzhou Zhilitong Electromechanical Co., Ltd. >> Single Vertical Insulated Wire Flame Lab Test Equipment with IEC60332-1-1 IEC60332-1-2

Single Vertical Insulated Wire Flame Lab Test Equipment with IEC60332-1-1 IEC60332-1-2

Name: Single Vertical Insulated Wire Flame Lab Test Equipment with IEC60332-1-1 IEC60332-1-2
Brand: china-manufacturer-directory.com
SKU: 724763925
Availability: InStock
Rating: 4.9 (131 reviews)

Supplier:	Guangzhou Zhilitong Electromechanical Co., Ltd.
Price:	US $ 4300-4400/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	ZLT-BS1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Weight:	100-500Kg
Power Source:	AC220V
Type:	Flammability Tester

Product Description

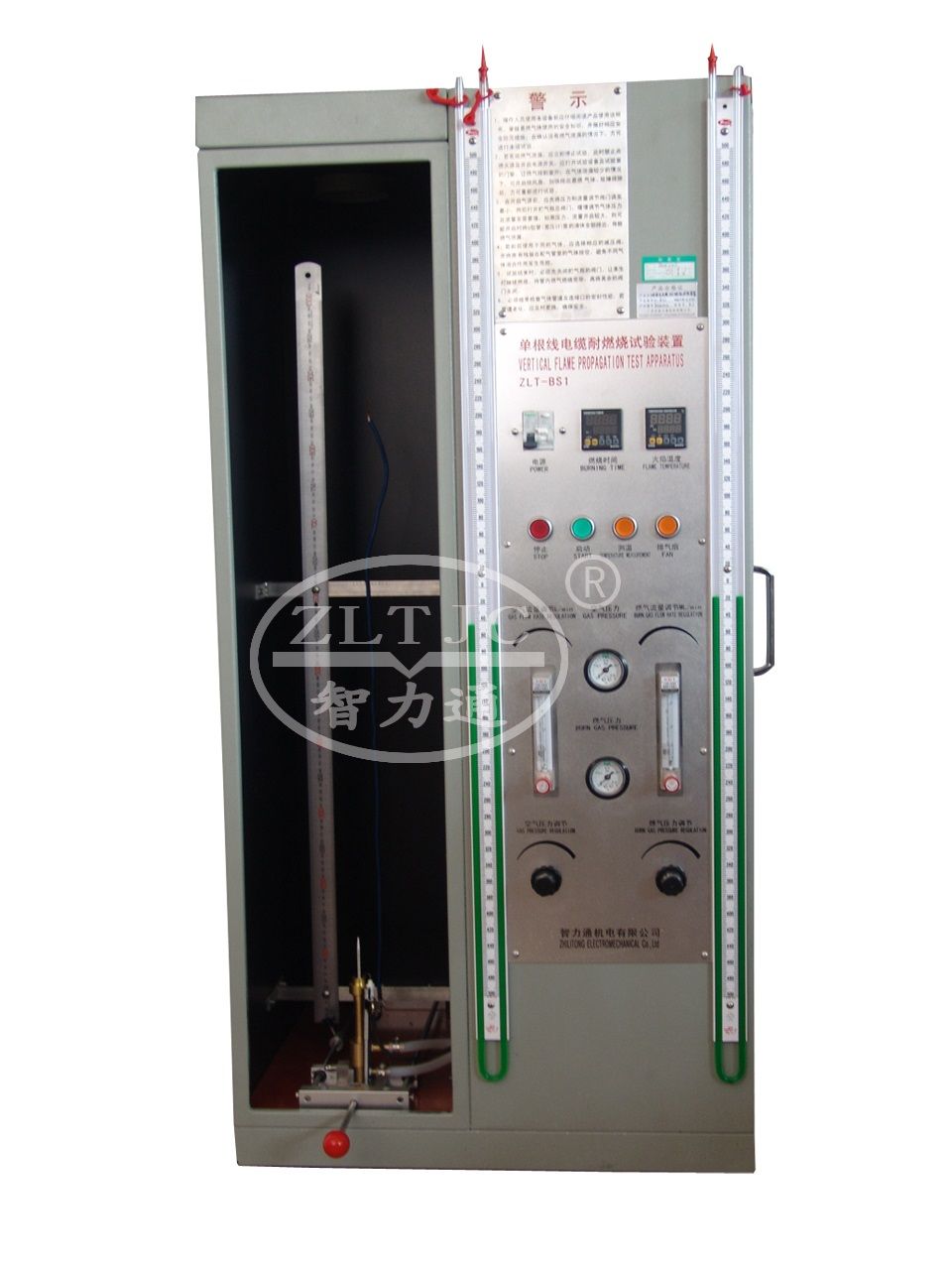

Single Vertical Insulated Wire Flame Chamber Tester

Product details: Model ZLT-BS1
This apparatus is for testing the resistance to vertical flame propagation for a single vertical electrical insulated conductor or cable, or optical fibre cable.

Flame standard	IEC60695-11-2, 1kw nominal pre-mixed flame
Burner Tube	IEC60695-11-2 Figure A
Burning Angle	45°
Thermocouple	Type K (Ni/Cr - Ni/Al), 200° ~1050°
Thermocouple Size O/D	0.5mm
Temperature Resolution	1º C
Standard Copper Block	weight: 10 ± 0 . 05 g before drilling. Cu-ETP
Gas Supply(do not provide)	propane, min. 95% purity
Input Power	220 V 50 Hz 3A or 115 V 60HZ Optional
Inner Dimensions	WDH=300mm450mm1200mm
Conform to standard	IEC60332-1-1, IEC60332-1-2

Overall diameter of test piece mm	Time for flame application S
D≤ 25	60± 2
25	120± 2
50	240± 2
D> 75	480± 2

Establised at the end of last century, Guangzhou Zhilitong Electromechanical Co., Ltd. is an high-tech private enterprise which integrates the R&D, manufacturing and consulting service of cable wires (accord to IEC, UL, CSA, GB, BS) test equipments, and accessories, and home appliance test equipment.

With the business tenet of "Pioneering for progress, quality first, mutual benefit", Zhilitong' S staff have always kept conscientious work attitude and professional service to meet the customers requirement. With advanced technology, world-class equipment and precision test equipment, we can offer you the high quality products and excellent service.

In the past ten years, our products are sold in the Asian market and have gained good reputation in our customers with the brand of "ZLTJC". Now, we hope to offer the highest quality electrical test equipments and render the most favorable service to more places around the world.
