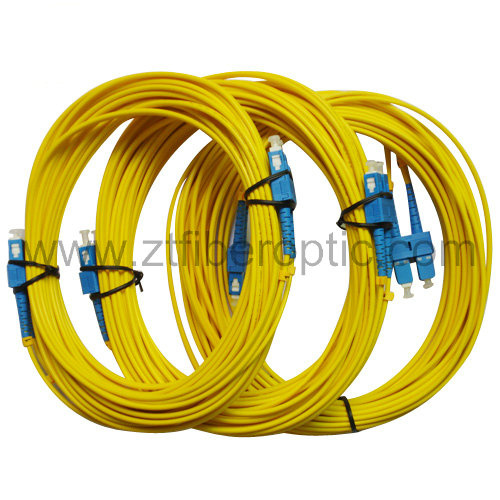

Singlemode Duplex Sc Fiber Optic Patch Cord
| Price: |
US $ 2.9/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
ZT Fiber Optic Technology Co., Ltd Specialized in producing: fiber optic, optical fiber, fiber cable, optical fiber cable, Plastic Optical Fiber, patch cord, fiber optic patch cord, distribution box, Fast Connector, Terminal Box, Patch Panel, Media Converter, Socket, Outlet,Switch, wall Socket, wall outlet, wall switch, USB socket, USB Outlet, USB Switch and so on.
Fiber Optic Patch Cord
Connector Type available: SC, FC, ST, LC, MTRJ, MPO, E2000 and so on.
Cable type: Singlemode and Multimode
Jacket Color: Orange, Yellow, white, Green, Purple, Violet, Gray and so on.
Insertion Loss≤ 0.2dB
Return Loss ≥ 50dB(UPC)
Exchangeability ≤ 0.2dB
Repeatability(500 matings) ≤ 0.1dB
Tensile Strength ≥ 5kg
Operating Temperature: -20~+70 º C
Storage Temperature: -40~+70 º C
Features
Low insertion loss, High return loss
User friendly, Compact size
PVC or LSZH Jacket
PC/UPC/APC Polish
Good exchangeability and repeatability
Comply with Telcordia GR-326-CORE Specification
Application:
Optical fiber communication systems
Fiber optic data transmission
Local Area Network (LAN)
Fiber optic CATV
|
Performance & Specifications |
|
Fiber Type |
SM |
MM |
|
Normal Fiber OD |
125±0.2um |
125±0.2um |
|
Connector Type |
SC,FC,ST, E-2000, LC, MU |
MTRJ |
SC,FC,ST, E-2000, LC, MU |
MTRJ |
|
Insertion loss(Typical) |
0.2dB |
0.4dB |
0.2dB |
0.4dB |
|
Insertion loss(Max) |
0.3dB |
0.5dB |
0.3dB |
0.5dB |
|
Return Loss(Typical) |
PC |
50dB |
35 |
|
|
UPC |
55dB |
|
|
|
APC |
65dB |
|
|
|
Mating Durability(500 C) |
0.2dB |
|
Temperature Stability |
0.3dB |
|
Operation Temperature |
-40°C~+85°C |
|
Storage Temperature |
-40°C~+85°C |
| Prod Model: |
ZT-FPC001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Fiber Type: |
Sm, Mm |
| Jacket Material: |
PVC, Lszh |
| Jacket Color: |
Yellow, Orange, Aqua and Customized |
| Connector Type: |
Sc, LC, FC, St, MTRJ, MPO, Mu and etc |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Connection Structure: |
SC |
| Certification: |
ISO9001 |
ZT Fiber Optic is leading professional provider of telecommunications equipment and network solutions. We have established end-to-end capabilities and strengths across the carrier networks, enterprise, consumer, and cloud computing fields. We are committed to creating maximum value for telecom carriers, enterprises and consumers by providing competitive ICT solutions and services.
We are located in Dongguan city of China which covers an area more than 30, 000 square meters and with 4, 000 square meters non-dusty room. Full sets of advanced production and inspection equipments imported from America, Japan, Germany, and Switzerland. ZT has passed a lot of international management certifications such as ISO9001, ISO14001, RoHS, UL, SGS certification.
Meanwhile, ZT Fiber Optic also has cooperation with Zhongshan University, Guangdong Post and Telecommunications College, Jinan University. A series of professional technicians and talents are absorbed by ZT. We leading a research team to research and develop the active-passive components with our own intellectual property right, creating a set of the product scheme and technology systems of FTTH components. We are trying to connect with the market, to make high efficiency, to reduce the operation time and cost. Providing the whole course of service and technology support for customers.
ZT Fiber Optic Technology Co., Ltd Specialized in producing: Fiber optic, optical fiber, fiber cable, optical fiber cable, Plastic Optical Fiber, patch cord, fiber optic patch cord, distribution box, Fast Connector, Terminal Box, Patch Panel, Media Converter, Socket, Outlet, Switch, wall Socket, wall outlet, wall switch, USB socket, USB Outlet, USB Switch and so on.
Our products are widely used in Telecom, electric power, Railway, oil, communication, energy, coal, port, fiber optic network engineering, aerospace and military fields and other related departments. Our market and sales departments reach all over the world, devoting to offering excellent products with quick response and all-around services.
