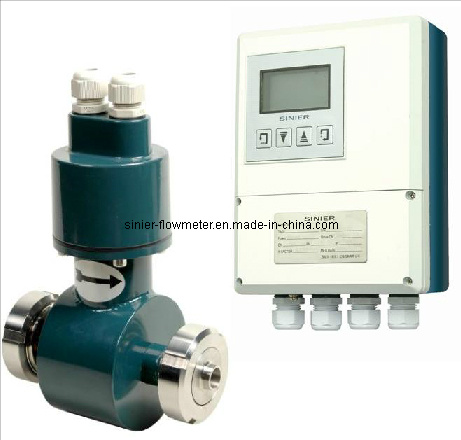

Sinier Divided Type Sanitary Electromagnetic Flow Meter

Name: Sinier Divided Type Sanitary Electromagnetic Flow Meter
Brand: China-Manufacturer-Directory.com
SKU: 732990905
Availability: InStock
Rating: 4.5 (37 reviews)

Supplier:	Sinier (Nanjing) Process Control Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	SE13
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sensor:	Tube/Flange
Type:	Electromagnetic Flow Meter
Accuracy:	?à0.2-0.5%
Measuring Media:	Liquid
Size:	DN10-50
Principle:	Electromechanic
Measuring Principle:	Electrical Principle

Product Description

Description of SINIER Electromechanic Flowmeter SE11
SINIER--the Leading Process Control and Measuring Instrumentations Supplier in China
Specifications: Conductive Liquid Measuring Electromagnetic flowmeters
1. High accuracy
2. Long life time
3. Super quality
4. Competitive Price
Feature:
1. No pressure loss. No moving parts.
2. High accuracy of 0.2%.
3. Wide size range of 10~2000mm, adapt to different size of pipeline.
4. Two-line LCD, able to display positive and negative current flow and total flow.
5. Measurement is not affected by the density, viscosity, temperature, pressure and electro conductibility of fluid;
6. Multiple choices are available for the liner of converter and the material of electrode;
7. Pulse and 4-20mA standard current output. Multiple choices of communications: RS232, RS485, HART, Modbus, Profibus, etc.
8. Explosion-proof type can be used at relevant explosion-proof sites. IP68 remote type can be used underwater.
9. Variable forms for different kinds of working conditions. Compact and remote form; Flanged, flanged wafer, clamped, threaded, insertion end connection; DC/AC, battery power supply.

	SE11	SE12	SE13	SE14
Measuring flow	electrically conducting liquids
Precision	±0.5%	±0.25%	±0.5%	±1.5%
Repetition	±0.25%	±0.125%	±0.25%	±0.75%
Medium Temperature	-25~130°C	-25~130°C	-25~200°C	-25~130°C
Conductivity	≥5µs/cm (Please consulate with us if it is less than 5μS/cm)
Diameter(mm)	3~2200	3~2200	3~125	300~3000
Pressure Level	0.6Mpa/1.0Mpa/ 1.6Mpa/2.5Mpa/4.0Mpa/Others
Range of Velocity	0.5~10m/s
Flow Direction	Positive/negative
Electrode	316L, Hastelloy, Ti, Ta, Pt-Ir
Lining Materials	Rubber/PTFE/PFA/F46		PFA	PTFE
Form of electrode	Standard
Quantity of electrode	Two pairs(Measure,grounding)			A pair(measure)
Tube	304			304
Flange	Carbon steel/304		Stainless steel	Stainless steel
Installing form	Wafer/flange		clamp/thread	flange/plunge
Protection Level	IP65/IP67/IP68(Divided type)
Power	220VAC±20% 50HZ /24VDC
Signal output	4-20mA
Communicate	HART/Modbus/Profibus
Electric Connections	2×M20*1.5
Explosion proof	Non-explosion-proof/Exe dib IIB T4explosion proof
Type	Integrated type/Divided type
Ambient Temperature	-25~60°C
