Supplier: | Oriemac Machinery & Equipment (Shanghai) Co., Ltd. |
---|---|
Price: | US $ 30000/Piece |
Min Order: | 1/Piece |
Quantity:: | |
Trade Terms: | FOB,CFR,CIF |
![]() |
Prod Model: | ZG3210-9C |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Brand Name: | XCMG |
Engine: | Cummins |
Rated Loading Capacity: | 21ton |

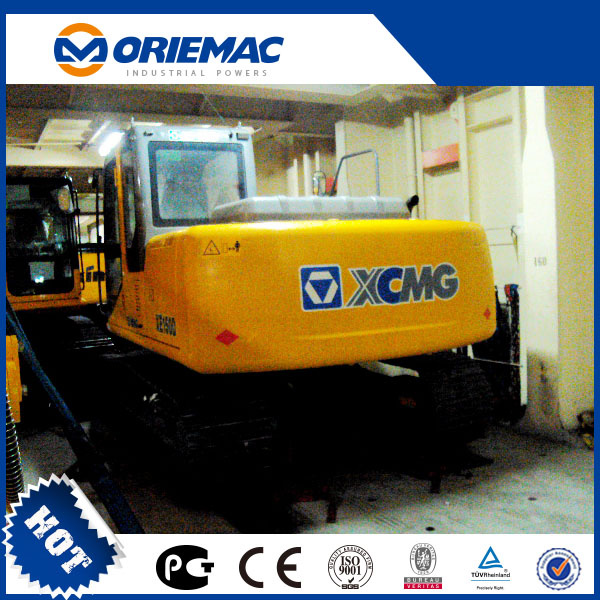

Type: | Crawler Excavator |
Size: | Large-Scale |
Condition: | New |
Certification: | ISO9001: 2000 |
Specifications | Unit | |
Operating weight | kg | 20700 |
standard bucket capacity | m³ | 0.91 |
Engine model | Cummins 6BTAA5.9-C150 | |
Rated power | kw/rpm | 112/1950 |
Overall dimension (L*W*H) | mm | 9520*2800*3030 |
Width of platform | mm | 2700 |
Overall height of cab | mm | 2920 |
Standard width of track shoe | mm | 600 |
Ground clearance of counterweight | mm | 1050 |
Min.ground clearance | mm | 470 |
Length of platform | mm | 2800 |
Rear swing radius | mm | 2800 |
Track wheel base distance | mm | 3370 |
Chassis length | mm | 4160 |
Chassis width | mm | 2800 |
Max.digging reach | mm | 9953 |
Max.digging depth | mm | 6690 |
Max.vertical wall digging depth | mm | 6104 |
Max. digging height | mm | 9642 |
Max. dumping height | mm | 6813 |
Min.swing radius | mm | 3560 |
Gradeability | ° | 35 |
Travel speed H/L | km/h | 5.0/3.3 |
Swing speed | rpm | 12.4 |
Ground pressure | Kpa | 47 |
Max.digging force of bucket | kgf | 13700 |
Max.digging force of arm | kgf | 10200 |
