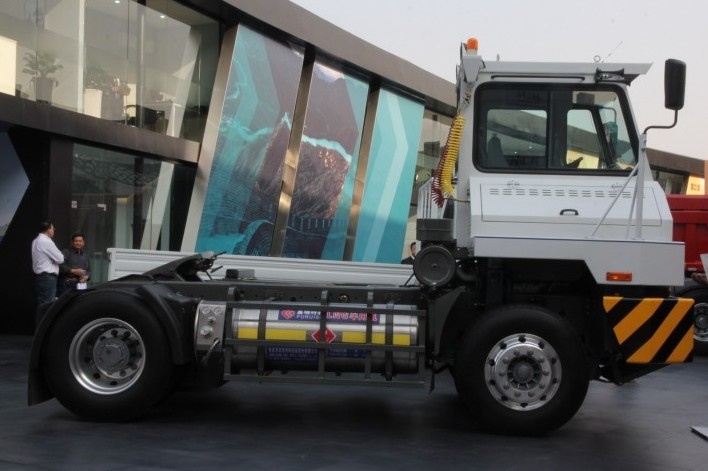

Sinotruk Hova 4X2 Small Tractor Truck
Product Specifications
| Prod Model: |
VL4117 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sinotruk Hova 4X2 Tractor Truck: |
Hova |
| Truck Type: |
Tractor Truck |
| Type: |
Tractor Truck |
| Power: |
Diesel |
| Transmission Type: |
Manual |
| Engine Capacity: |
4-6L |
| Tire Type: |
Solid Tire |
| Seats: |
≤5 |
| Drive Wheel: |
4?á2 |
| Horsepower: |
150-250hp |
| Tire Certification: |
ISO |
| Emission Standard: |
Euro 2 |
| Tire Design: |
Bias |
| Condition: |
New |
| Load Capacity: |
25t |
Product Description
Sinotruk hova 4X2 tractor truck
Company main products introduce1. Water truck2. Fuel tanker truck, Oil Truck, Tanker Truck3. Fire engine truck4. Truck mounted crane, crane truck5. Dump truck, tipper, heavy duty truck6. LPG Tank Truck, LPG Truck, LPG Tanker, LPG Semi-trailer, LPG Storage Tanker7. Bulk cement truck8. Concrete mixer truck, mixer truck, cement mixer truck9. Garbage truck, Self-loading garbage truck, garbage compactor truck, sealed garbage truck10. Fecal suction truck, sewage suction truck11. High altitude working truck12. Chemical liquid truck13. Van truck, insulated truck, refrigeration truck14. Semi Trailer, Low plate semi-trailer, oil semi-trailer, van semi-trailer, bulk cement transportation semi-trailer, container semi-trailer, chemical liquid semitrailer, etc more than 300 types in total.(3) Contact usAtten: Coco. TianTel: 0086-15071326998Welcome to visit our website or email us for more info.Engine: CNHTC brand WD615.62, 266hp EUROII
Water cooler, 6 cylinders, 4-stroke, Turbo-DI turbocharged direct injection engine with by-pass valve.
Rated power: 196kW(266PS)/2200rpm
Max. Torque: 1100Nm/1300-1600rpm
Compression Ratio: 17:1 Displacement: 9.726L |
| Chassis Modle: ZZ5371TQYM28400 |
| LEFT HAND DRIVE |
Transmission: ALLISON MD3500 electric control transmission(4-gear mode) with the protection device of zero reverse.
Ratio: 4.593 2.257 1.535 1.0 R-4.999 |
| Steering: EATON hydraulic steering with power assistance |
| Cab: D07 cab, air conditioner,heater, frame style, large plat and sinle side steel cab with wide vision and good anti-pounding capacity |
| English panel; |
| Rim/Tyres: 11.00-20 10 UNITS |
Fifth Wheel: JSK36DV3 non-lifting fifth wheel. pressed-steel, height of fifth wheel: 185mm;
Vertical tilt angle : 15°, 2" coupling pin,
Max loading capacity: 30000kg (20Km/h) |
Driving Axle: STR hub reduction. Gross speed ratio: 10.89
Gross sectional dimension:170mmx145mm |
Fron Axle: HW
Max loading capacity: 13000Kg(20kmph) |
| Color: red, yellow, green, blue, white |
| Wheelbase: 2850+1350mm |
| Whole truck dimensions: 6200×2495×3000 mm; |
| Maximum speed: 45km/h |
| Dead weight: 8900 kg |
| Max gross vehicle weight: 70000 kg |
HUBEI VELDLION MACHINERY Co., Ltd, is a high-tech enterprise approved by the Chinese government, specializing in the production of a variety of special-purpose vehicles. Our company possess legal import and export license and occupy large scales of foreign markets. The main productions of our company include more than 100 types of trucks, such as: Sprinkler Truck, Fecal suction truck, Garbage truck, Refuse compactor, Sewage suction truck, Fuel tank, High-altitude operation truck, Truck with crane, Dump truck, Instructional truck, Van truck, Semi-trailer, Fire engine, Spares, Refrigerator truck, Water wagon, Tractor, High-altitude water truck, Bulk cement truck, Chemical liquid truck, Concrete mixer truck, ect.
Our company VELDLION has strong technical force, professional QC process, advanced production equipment, stable product quality, and flexible operation modes. What's more, Production lines has roundly passed the ISO9001-2000 quality management system certification and the 3C(China Compulsory Certification).
Good quality and business reputation is guarantee of our success. We will do as we can that treating customers honestly, managing flexibly, guaranteeing high quality but low price, and keeping high efficiency.
We promise that all our products, will enjoy one year quality guarantee (for repair, replacement or compensation of faulty products) and free technical services lifetime.
Look forward to cooperate with you! Let's join hands and create a better tomorrow!
