Product Specifications
| Prod Model: |
YT Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color & Pages: |
Multicolor |
| Automatic Grade: |
Automatic |
| Condition: |
New |
| Dimensions: |
4300x1700x2950 |
| Type: |
Flexographic Printer |
| Plate Type: |
Flexo Printing |
| Usage: |
Polyethylene, Polypropylene, Roll Paper |
| Machine Shape: |
Fashion Shape |
| Driven Type: |
Electric |
| Warranty Period: |
Lifelong |
| Color & Page: |
Multi-Colour Printing Press |
| Structure: |
Rubber roller press |
| Plate: |
flexo plate |
Product Description

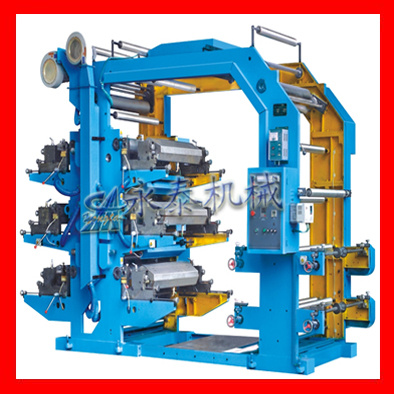

YT Series Six Color Flexo Printing Machinery
Automatic Six-color Flexo Printing Machine
Automatic Six-color Flexography Printing Machine
Machine type: Flexographic printing machine, Six-Colour Flexible Printing Machine, flexography printing machine, printing machine, printing press
Automatic Six-color Flexography Printing Machine, six color flexo printing machine, automatic flexo printing machine, paper plastic flexo printing machine, six colors flexo printing machine
Usage:
It is suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and paper in roll, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
It's quite commonly used for small order quantity printing service.
Performance and Features?
1. Easy operation, flexible starting, accurate color register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6.360° Continuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
Remark:
We also have wider width machine, if you want to print wider width film, please feel free to contact us, we will provide you details. Thanks.
|
Specification: |
|
Model No. |
YT-6600 |
YT-6800 |
YT-61000 |
|
Max. Web Width |
600mm |
800mm |
1000m |
|
Max. Effective Printing Width |
560mm |
760mm |
960mm |
|
Range of Repeat Printing Length |
191~914mm |
191~914mm |
191~914mm |
|
Max. Diameter of Roll Material |
450mm |
450mm |
450mm |
|
Printing Speed |
5-50m/min |
5-50m/min |
5-50m/min |
|
Plate Thickness(Both side adhesive tape included) |
2.38mm |
2.38mm |
2.38mm |
|
Total Power |
15kw |
19.5Kw |
24Kw |
|
Weight of Machine |
3500kg |
4200kg |
5000kg |
|
Machine Dimension |
4300x1700x2950mm |
4300x1900x2950mm |
4300x2100x2950mm |
