Foshan Zhong Hao Xing Woodworking Machine Co., Ltd. >> Six Cutting Head Max Working Width 200mm Woodworking Machinery

Six Cutting Head Max Working Width 200mm Woodworking Machinery

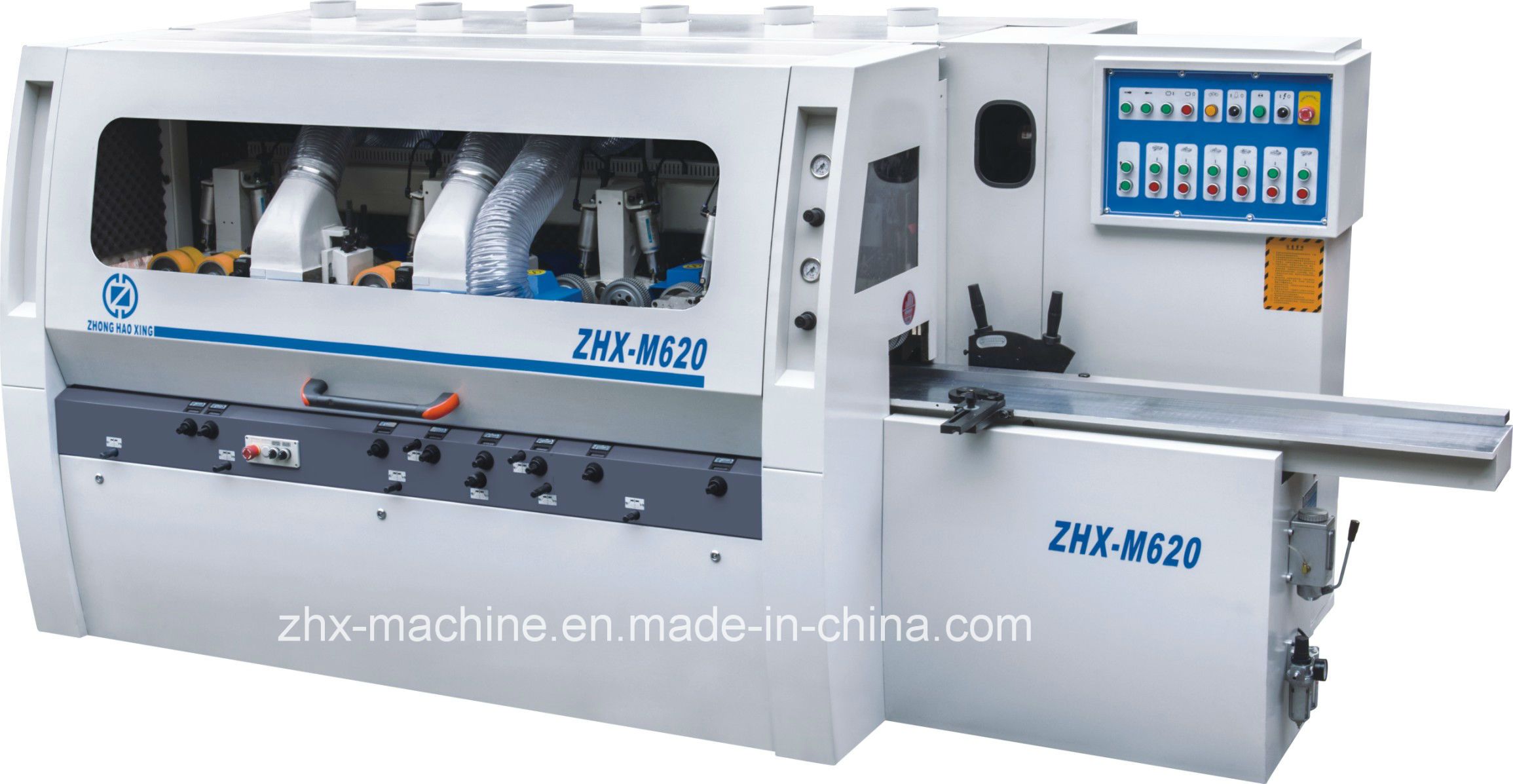

Name: Six Cutting Head Max Working Width 200mm Woodworking Machinery
Brand: china-manufacturer-directory.com
SKU: 724837005
Availability: InStock
Rating: 4.3 (64 reviews)

Supplier:	Foshan Zhong Hao Xing Woodworking Machine Co., Ltd.
Price:	US $ 17666SET
Min Order:	1SET
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	ZHX-M620
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max Working Width:	200mm
Certification:	SGS
Drivetrain:	Machine Drivertrain
Motor Power:	39.75kw
Working Depth:	8-120mm
Working Width:	25-200mm
Type:	Four-Side Moulder

Product Description

？Four-side moulder 1) Each principal axis adopts independent drive to electric motor,features stronger cutoff force. 2) Adusts for principal axis integrates at central of frontal side, features easy operation. 3)Galvanized workstation features superior abrasion resistance. 4)Equips with auxiliary unit alarming lack of material,it effectively improves smooth feed-in while lack of material. 5)Active roller below improves feeding efficiency. 6)Pneumatic pressing feeding roller section by section adjusts for pressing force,it favors for smooth feed-in of different thicknesses of timber. 7)Adopts central charging system,feetures convenience and promptness. 8)Equips with world-class electric element,features superior stability. 9)With fully sealed safety protective cover, this effectively avoids flying logging debris and noise blocked, and even acts as safety protection. 10)Double-deck working tables;it is easy for maintenance. 11)Pneumatic Pressing Feeding Roller Section By Section By Section Adjusts For Pressing Force, It Favors Forsmooth Feed-In Of Dfferent Thickness Of Timber.？？

MODEL:ZHX-M620
Technical Data:
ONE.Machine Parameter:
Working Width:	8-120mm
Working Width:	25-200mm
Operating Platform length:	1800mm
Feed Speed:	5-26m/min
Spindle Diameter:	ø40mm
Spindle Speed:	6000r/min
Gas Source Pressure:	0.6MPa
Two.Motor Power:
The Ist Bottom Spindle:	5.5kw/7.5HP
The Ist Top Spindle:	7.5kw/10HP
Right Side Spindle:	5.5kw/7.5HP
Left Side Spindle:	5.5kw/7.5HP
Second Top Spindle:	5.5kw/7.5HP
Second Bottom Spindle:	5.5kw/7.5HP
Feed Beam Rise&Fall:	0.75kw/1HP
Feeding:	4kw/5.5HP
Total Motor Power:	39.75kw/
Three\Knife Diameter:
Right Side Spindle:	ø125-ø180mm
Left Side Spindle:	ø125-ø180mm
The Ist Bottom Spindle:	ø125
The Ist Top Spindle:	ø125-ø180mm
The Second Top Spindle:	ø125-ø180mm
The Second Bottom Spindle:	ø125-ø180mm
Feed Diameter:	ø140mm
Dust Diameter:	ø140mm
Oversea Machien Dimensions(**)mm	392016001700mm
NET Weight(kg):	2580
Gross Weight(kg):	2650

Zhonghaoxing devotes itself to the first-class quality, its development and existence are depend on quality and innovation, the best honour to the enterprise is to satisfy the customers. We regard the product quality as NO. 1 and chase for it all the time. Now, we have won the identification from customers and agencies. In order to expand market, we should continue to expand our production scale, promote technical innovation and keep improving. We should do our best to provide the best products to help our customers making more profits.

Our eternal service principle is "quality first, customers highest, thorough service". In the future, Zhonghaoxing should keep on improving the quality and service, creating more value to more customers, sparing no effort to the development of China woodworking machinery industry.
