Foshan Zhong Hao Xing Woodworking Machine Co., Ltd. >> Six Spindle, Working Width 230 Four Side Moulder Woodworking Machinery (ZHX-M623)

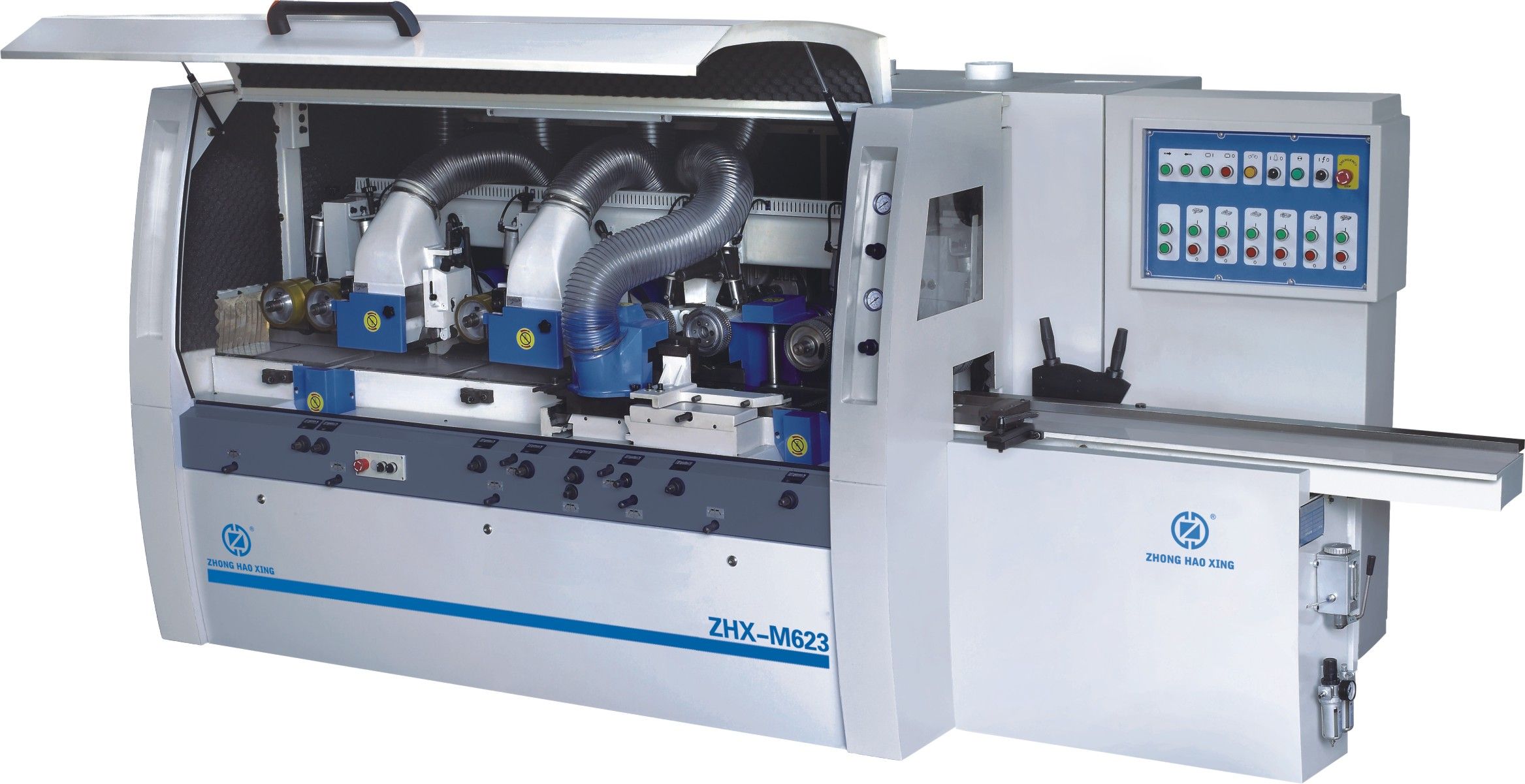

Six Spindle, Working Width 230 Four Side Moulder Woodworking Machinery (ZHX-M623)

Name: Six Spindle, Working Width 230 Four Side Moulder Woodworking Machinery (ZHX-M623)
Brand: china-manufacturer-directory.com
SKU: 724826545
Availability: InStock
Rating: 4.5 (110 reviews)

Supplier:	Foshan Zhong Hao Xing Woodworking Machine Co., Ltd.
Price:	US $ 21660set
Min Order:	1SET
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	ZHX-M623
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max Working Width:	230mm
Certification:	SGS
Motor Power:	53.25kw
Working Depth:	8-160mm
Working Width:	25-230mm

Product Description

Four-side moulder 1) Each principal axis adopts independent drive to electric motor, features stronger cutoff force.？ 2) Adusts for principal axis integrates at central of frontal side, features easy operation.？ 3)Galvanized workstation features superior abrasion resistance.？ 4)Equips with auxiliary unit alarming lack of material, it effectively improves smooth feed-in while lack of material.？ 5)Active roller below improves feeding efficiency.？ 6)Pneumatic pressing feeding roller section by section adjusts for pressing force, it favors for smooth feed-in of different thicknesses of timber.？ 7)Adopts central charging system, feetures convenience and promptness.？ 8)Equips with world-class electric element, features superior stability.？ 9)With fully sealed safety protective cover, this effectively avoids flying logging debris and noise blocked, and even acts as safety protection.？ 10)Double-deck working tables; It is easy for maintenance.？ 11)Pneumatic Pressing Feeding Roller Section By Section By Section Adjusts For Pressing Force, It Favors Forsmooth Feed-In Of Dfferent Thickness Of Timber.？？

MODEL: ZHX-M623
Technical Data:
ONE\Machine Parameter:
Working Width:	8-120mm
Working Width:	15-230mm
Operating Platform length:	1800mm
Feed Speed:	5-30m/min
Spindle Diameter:	ø 40mm
Spindle Speed:	6000r/min
Gas Source Pressure:	0.6MPa
Two\Motor Power:
The Ist Bottom Spindle:	7.5kw/10HP
The Ist Top Spindle:	11kw/15HP
Right Side Spindle:	7.5kw/10HP
Left Side Spindle:	7.5kw/10HP
Second Top Spindle:	7.5kw/10HP
Second Bottom Spindle:	7.5kw/10HP
Feed Beam Rise& Fall:	0.75kw/1HP
Feeding:	4kw/5.5HP
Total Motor Power:	53.25kw
Three\Knife Diameter:
Right Side Spindle:	ø 125-ø 180mm
Left Side Spindle:	ø 125-ø 180mm
The Ist Bottom Spindle:	ø 125
The Ist Top Spindle:	ø 125-ø 180mm
The Second Top Spindle:	ø 125-ø 180mm
The Second Bottom Spindle:	ø 125-ø 180mm
Feed Diameter:	ø 140mm
Dust Diameter:	ø 140mm
Oversea Machien Dimensions(**)mm	408016501750mm
NET Weight(kg):	2800
Gross Weight(kg):	2850
