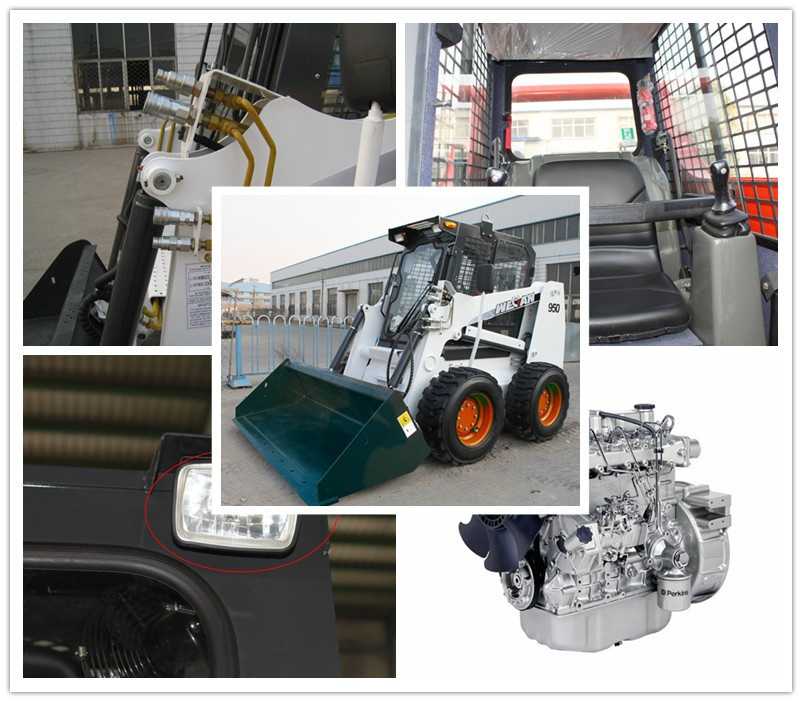

Skid Steer Loader

Product Specifications

Prod Model:	WT950
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Skid Steer Loader:	Mini Wheel Laoder
Brand:	Wecan or Customize
Tyre:	Tubeless or Solid
Attachment:	Optional
Standard Attachment:	Bucket
Engine:	China Engine or Other
Color:	Red or White
Type:	Wheel Excavator
Size:	Medium-Sized
Certification:	ISO9001: 2000
Condition:	New
Usage:	Handling

Product Description

Skid steer loader 700 characteristic
A, Good performance with competitive price
B, Turn within its own length
C, Excellent reach and lift height for truck loading (radial direction)
D, More than 20 series attachments for option: Pallet fork, hydraulic hammer, backhoe, sweeper, angle broom, 4 in 1 bucket, auger, trencher, tooth bucket and so on.
E, attachment can be used with bobcat type skid steer loader
F, World famous hydraulic system from America (Sauer pump)
G, Famous brand engine with EPA or EURO II or III from China and Japan
H, CE and ISO 9001 certificated
I, Multifunctional, maneuverability and reliability

Standard configuration
1; Euro III UK perkins engine
2; Rexroth pump
3; Germany rexroth motor with parking brake
4; Rexroth control valve with safety lock
5; Rexroth hydraulic joystick
6; America 3 stage air filter
7; Closed cab with fan, heater, warning light
8; Mirror outside cab
9; America electromagnetic valve
10; Special big aluminium radiator
11; Ameirca confluence valve

Our Services
1; The quality guarantee period is one year for main parts
2; Service response time is no more than one day
3; One life of products follow-up maintenance services
4; One year warranty

Company Information
We are WECAN brand forklift and skid steer loader manufacturer with more
Than 28 years experience in China. We can supply you
Diesel forklift 1.5ton -10ton
Electric forklift 1.5-3.5ton
Gas/LPG forklift 2-3.5ton
Skid steer loader: 650kgs-1600kgs.
There aremore than 500 employees nowadays, cover an area of 266 thousand meters.
Ti is the earliest factory of producing forklift in Shandong province China.
It is a national fixed-point factory of lifting&handling machinery in China.
It has the physical&chemical testing centre as national Grade 2 in China

Item	Parameter	NO.	Major	Parameter
Engine Model	Perkins 804D-33	A	Overall Operating Height (mm)	3900
Bore *Stroke (mm)	94*120	B	Height to Bucket Hinge Pin (mm)	2930
Rated Power (KW)	47	C	Height to Top of Cab (mm)	2300
Rotating Speed (rpm)	2500	D	Height to Bottom of Level Bucket (mm)	2700
Number of Cylinder	4	D	Overall Length without Bucket (mm)	2800
Max. Torque (n.m)	200	F	Overall Length with Bucket (mm)	3500
Displacement (L)	3.3	G	Dumping Angle at Maxium Height ( ° )	39
Max. Speed (km/h)	11.5/23	H	Dumping Height (mm)	2200
Vacuum tire	12-16.5	I	Dumping Reach (mm)	640
Operating Load (kg)	950	G	Rollback of Bucket on Ground ( ° )	31
Max. Loading (kg)	1900	K	Rollback of Bucket at Full Height ( ° )	98
Lifting	Radial	L	Wheel base (mm)	1117
Bucket Lifting Force (KN)	18.85	M	Ground Clearance (mm)	190
Arm Lifting Force (KN)	16.6	N	Angle of Depature ( ° )	20
Total Cycling Time (s)	10.2	O	Turning Radius Front Without Bucket (mm)	1360
Bucket Capacity (m ³ )	0.55	P	Front Turning Radius (mm)	2200
Pressure of Working System (bar)	200	Q	Rear Turning Radius (mm)	1870
Rated Flux (L/min)	62.5	R	Rear Alex to Bumper (mm)	1050
Fuel Tank Capacity (L)	76.4	S	Tread Width, Centerline to Centerline	1660
Self-weight witn Bucket (kg)	3500	T	Width (mm)	1980
Emission Standards	Euro III	U	Bucket Width (mm)	2020
High Flow Flux(L/min)	138
