Product Specifications
| Prod Model: |
1605 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Skid Steer Loader: |
Mini Wheel Laoder |
| Brand: |
Wecan or Customize |
| Tyre: |
Tubeless or Solid |
| Attachment: |
Optional |
| Standard Attachment: |
Bucket |
| Engine: |
China Engine or Other |
| Color: |
Red or White |
| Type: |
Wheel Excavator |
| Size: |
Medium-Sized |
| Certification: |
ISO9001: 2000 |
| Condition: |
New |
| Usage: |
Handling |
Product Description

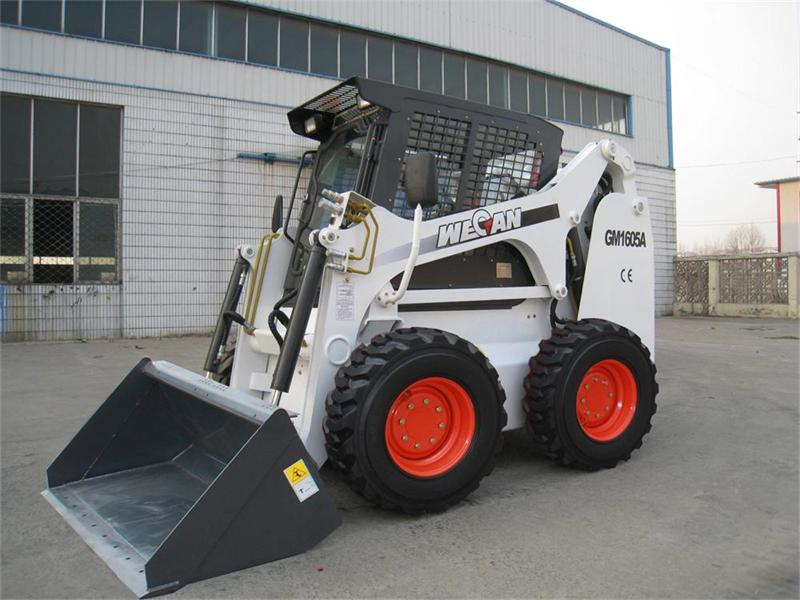

Skid steer loader 1605 characteristic
A, Good performance with competitive price
B, Turn within its own length
C, Excellent reach and lift height for truck loading (radial direction)
D, More than 20 series attachments for option: Pallet fork, hydraulic hammer, backhoe, sweeper, angle broom, 4 in 1 bucket, auger, trencher, tooth bucket and so on.
E, attachment can be used with bobcat type skid steer loader
F, World famous hydraulic system from America (Sauer pump)
G, Famous brand engine with EPA or EURO II or III from China and Japan
H, CE and ISO 9001 certificated
I, Multifunctional, maneuverability and reliability
Standard configuration
1; Euro III Perkins engine
2; Rexroth pump
3; Rexroth double speed motor with parking brake
4; Rexrothcontrol valve with safety lock
5; America electromagnetism valve
6; America 3 stage air filter
7; Closed cab with fan, warning light
8; Rexroth hydraulic joystick
9; America bearing
10; Special big aluminium radiator
11; Key stop engine
Our Services
1; The quality guarantee period is one year for main parts
2; Service response time is no more than one day
3; One life of products follow-up maintenance services
4; One year warranty
Company Information
We are WECAN brand forklift and skid steer loader manufacturer with more
Than 28 years experience in China. We can supply you
Diesel forklift 1.5ton -10ton
Electric forklift 1.5-3.5ton
Gas/LPG forklift 2-3.5ton
Skid steer loader: 650kgs-1600kgs.
There aremore than 500 employees nowadays, cover an area of 266 thousand meters.
Ti is the earliest factory of producing forklift in Shandong province China.
It is a national fixed-point factory of lifting&handling machinery in China.
It has the physical&chemical testing centre as national Grade 2 in China
| Item | Parameter | NO. | Major | Parameter |
| Engine Model | Perkins 1104D-44T | A | Overall Operating Height (mm) | 4234 |
| Bore *Stroke (mm) | 105x127 | B | Height to Bucket Hinge Pin (mm) | 3295 |
| Rated Power (KW) | 74.5 | C | Height to Top of Cab (mm) | 2028 |
| Rotating Speed (rpm) | 2200 | D | Height to Bottom of Level Bucket (mm) | 3100 |
| Number of Cylinder | 4 | E | Overall Length without Bucket (mm) | 2878 |
| Max. Torque (n.m) | 392 | F | Overall Length with Bucket (mm) | 3666 |
| Displacement (L) | 4.4 | G | Dumping Angle at Maxium Height ( ° ) | 42 |
| Max. Speed (km/h) | 10.2/20.4 | H | Dumping Height (mm) | 2540 |
| Vacuum tire | 12-16.5 | I | Dumping Reach (mm) | 850 |
| Operating Load (kg) | 1600 | G | Rollback of Bucket on Ground ( ° ) | 27 |
| Max. Loading (kg) | 3200 | K | Rollback of Bucket at Full Height ( ° ) | 96 |
| Lifting | Vertical | L | Wheel base (mm) | 1218 |
| Bucket Lifting Force (KN) | 25 | M | Ground Clearance (mm) | 218 |
| Arm Lifting Force (KN) | 29 | N | Angle of Depature ( ° ) | 26 |
| Total Cycling Time (s) | ≤11.2 | O | Turning Radius Front Without Bucket (mm) | 1540 |
| Bucket Capacity (m ³ ) | 0.55 | P | Front Turning Radius (mm) | 2200 |
| Pressure of Working System (bar) | 210 | Q | Rear Turning Radius (mm) | 1710 |
| Rated Flux (L/min) | 88 | R | Tread Width, Centerline to Centerline | 1530 |
| Fuel Tank Capacity (L) | 82 | S | Width (mm) | 1864 |
| Self-weight witn Bucket (kg) | 4080 | T | Bucket Width (mm) | 1980 |
| Emission Standards | Tier 3 |
|
|
|
| High Flow Flux(L/min) | 158 |
|
|
|
Our company mainly supply forklift and skid steer loaders with high quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
