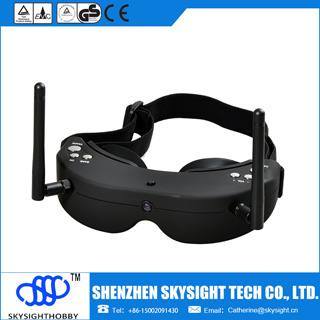

FPV 5.8G 32CH Diversity Receiver Wireless Head Tracing GOGGLE/Video Glasses SKY-01
Features
Special features: - Higher resolution display 854 x 480; - Head-track function. (via Futaba radios) - 5.8G, 32 channels diversity receivers. - Integrated front camera, you can see the vision in front of you without removing the glasses.
Wireless
The FPV Google withBuilt-in 5.8Ghz Diversity Receiver and diversity Antenna inputs for best reception.It working in diversity mode to achieve good signal utilization and improve theimage quality.
It supports 4 Bandsand total 32channels (Bands selection and Resulting Frequencies see details in Specifications)
Head Tracker Support Head-track function.
Front Camera
·TheFront Camera is Wide-Angle Camera with 680X480(VGA) Resolution and good low Illumination. It's very convenient to view around without taking off the Goggles.
·Press"Camera" button to open the Front Camera.
Volume
·Eachboot is automatically set to the lowest volume to avoid sudden loud boot.
·Along beep indicates that you have reached the MAX or MIN Volume. .
Display Setup
Interpupillary distance(IPD)Adjustable
·Pull the IPD Adjuster to adjust the interpupillary distance
Brightness/ contrast Adjustabl
AV input
·Thegoggles support AV IN. The wireless model will close when the AV IN isconnected to save power.
·TheFront Camera is ok for use under AV IN mode.
AV output
·AVOut is the diversity Video and Audio output
·Earphoneport is audio output for connecting earphones.
Product Details
FPV 5.8G 32CH Diversity Receiver Wireless Head Tracing GOGGLE/Video Glasses SKY01
Compatible transmitters (the transmitter for RC model, not the video transmitter): FUTABA FF-7, FF-8, FF-9, T9Z, T12MZ and T14MZ & WFLY transmitters with trainer port.
* Other types transmitter may not supported. JR transmitters are not supported, this is not because of the glasses, but because of the JR transmitter programe setting.
Binocular Display |
FOV |
30 degrees (Diagonal) |
Resolution |
854X480(WVGA), 1,229,760 color sub-pixels |
Brightness |
350cd |
Interpupillary distance(IPD) |
60-68mm Adjustable |
Wireless Receiver |
ISM 5.8GHz 32 Channel, Diversity receiver. |
Band |
CH 1 |
CH2 |
CH3 |
CH4 |
CH5 |
CH6 |
CH7 |
CH8 |
1 |
5865M |
5845M |
5825M |
5805M |
5785M |
5765M |
5745M |
5725M |
2 |
5733M |
5752M |
5771M |
5790M |
5809M |
5828M |
5847M |
5866M |
3 |
5705M |
5685M |
5665M |
5645M |
5885M |
5905M |
5925M |
5945M |
4 |
5740M |
5760M |
5780M |
5800M |
5820M |
5840M |
5860M |
5880M |
Sensitivity |
-90dBm±1dBm |
Antenna port |
2 X SMA,50ohm |
Video Standard |
NTSC/PAL |
Video output level |
1.0Vp-p Typ / 75ohm |
Audio output level |
1.0Vp-p Typ / 10Kohm |
Front Camera |
FOV |
120 degrees (Diagonal) |
Resolution |
640X480(VGA) |
FOCAL LENGTH |
f=0.95mm |
F/NO |
F/NO=2.0 |
Head Tracker |
Sensor |
Magnetic, Inertial and gyro |
Output |
PPM 8 channel, Optional 5-6CH,5-7CH,5-8CH,6-7CH,6-8CH,7-8CH |
AV Port |
Div. AV OUT(3.5mm4P) |
Diversity Video,Audio output |
EAR OUT(3.5mm3P) |
32Ω/75mW or 16Ω/105mW,With volume control |
AV IN(3.5mm4P) |
Video,Audio input |
Power Supply |
DC IN |
DC 7~28V/ 1A |
Power Consumption |
12V input: 4.3W |
Dimensions |
168(L)X92.5(W)X41(H)mm (Not include prominent part) |
Weight |
g |
Operating Temperature |
0°C~+55°C
|
