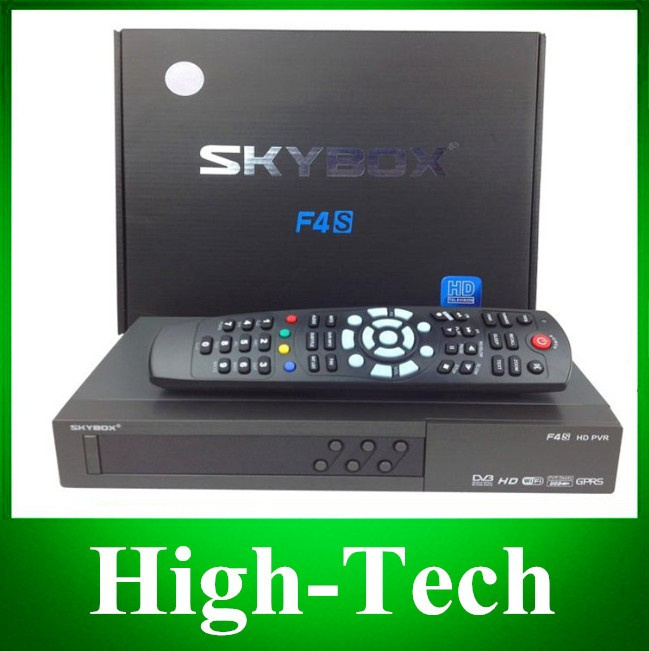

Skybox F4s DVB WiFi WiFi Support GPRS Dongle

Product Specifications

Prod Model:	SKYBOX F4S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	383 Mm X 298 Mm X 63 Mm
Type:	Radio Signal Modulation

Product Description

Main feather

Internal GPRS Modem Included

1, Supports HDMI 1.3
2, Ali3601 Processor, 396MHz MIPS, Dual-Core CPU
3, PVR Functions, NIT search Supported
4, Support cccamd, newcamd, MGcamd, Avatarcamd, Xcam, RS232
5, Support USB WiFi, weather forecast
6, Come with Sharp Tuner, Signal quality better
7, Link for Software:Www.Hddvbsw.COM
8, Support GPRS funciton
9, VFD display
10, GPRS, Simcard, Youtube, youporn
11, Support USB WiFi, weather forecast
12, support:Dongle and biss

General Feather

1) 450 MHz MIPS Processor ECOS Cooperation
2) Fully compliant MPEG-4 H.264/AVC Main Profile Level 3 & High Profile Level 4.1;
3) Fully compliant MPEG-2 MP@HL & MP@ML;
4) Fully compliant MPEG-1 Layer I & II & III, Digital Audio(AC3);
5) SCPC & MCPC receivable from C/Ku band satellites;
6) Multiple LNB-Switching control(supports DiSEqC1.0/1.1/unicable/1.2/1.3(USALS) supported)
7) NIT search supported;
8) Support HDMI 1.3;
9) Support PVR(store in USB disk);
10) Multimedia files playback(by USB);
11) Support Electronic Program Guide(EPG) for 7 days;
12) Teletext and subtitle out through OSD;
13) Support multi-lingual DVB subtitle and teletext;
14) Automatic and manual channel scan options;
15) Automatic service scan
16) channel-change time < 1 second
17) OSD in many languages and skin-support
18) Multilingual support on screen menu (OSD):English, French, Deutsch,
Italian, Spanish, Swedish, Danish, Greece, Portuguese, Finland, Holland, Turkish, Czech,
Selectable;
19) Multiple display mode:1080P/ 1080I/720p/570p/576I/480p;
20) MPEG-4 / H.264 Hardware decoding
21) Videotext Decoder
22) Analog audio output:Stereo(L+R);
23) Digital audio output:S/PDIF by coaxial and optical(optional);
24) S/PDIF Interface for digital bit stream out (AC-3)(optional);
25)support dongle
26)1X Scart or AV
27) Screen format:Auto, 4:3, and 16:9;
28) Upgrade software through USB2.0 port;
29) Powerful program management function, parent lock

Board configuration
396MHz MIPS CPU
128MB DDRII400 RAM
Memory Clock 198MHz
4MB Serial Flash
Single Tuner
DVB-S2 demodulator
Power Supply
Input 100V-240V 50/60Hz
Power Consumption
30W Max/1W Standby (it's optional by customer?S board)
RS232
For FW Upgrading
Standard Receiver Standard
DVB-S2 Standard (DTSI EN 302 307)
Input Frequency Range
950MHz~2150MHz
Input Signal Level
-25dBm ~ -65dBm
Demodulation
QPSK, 8PSK, 16APSK
Transport Stream
MPEG-2 ISO/IEC 13818 Transport Stream Specification
MPEG Profile Level
MPEG-2 SD, MPEG-2 HD, H.264/AVC SD, H.264/AVC HD
LNB Power & Polarisation
Vertical +13.5V, Horizontal 18V, Current:MAX 500mA
Multi Satellite Receiving
22K switcher, DiSEqC1.0, DiSEqC1.1, DiSEqC1.2, USAL
Conditional Access System
1 CA card reader Slots
A/V Output ports
YPrPb, RCA with CVBS, SCART with CVBS, HDMI 1.3, Left/Right analog audio output(RCA)
Aspect Ratio
Auto, 16:9 Pillar box, 4:3 Pan & Scan, 4:3 Letter Box.
Audio Decoding
MPEG1 Layer I, MPEG1 Layer II, MPEG 1 Layer III, MPEG2, AC3.
Audio Mode
Stereo/MONO/Left/Right
DVR supporting
DVR with USB HDD, Time shifting with USB HDD
USB2.0 High Speed Host
1USB2.0 Port, USB media player to playback the media in USB flash disk
Or USB HDD or USB card reader with memory card or FW Upgrading.
File System
FAT12, FAT16, FAT32, NTFS
Media Supporting
JPG, BMP, MP3, WMA
Ethernet Interface
10Mbit
Storage Temperature
0ºC To +50ºC
Front panel:
1*USB 1*CA(Optional)
Rear panel:
1*RS232 1*HDMI 1*LNB IN 1*LNB OUT 1*Scart 1*RJ45

1X F4 HD satellite TV receiver
1X Remote control
1X Power Supply Cable
1X HDMI Cable
1X GPRS antenna
1X User Manual
1X Gift Box
Carton Size:27.5cm X 23.5 X 5.5 cm
Gross Weight:1.5kg
