Shenzhen Handsome Technology Co., Ltd. >> SL814 Digital Sound Noise Level Meter

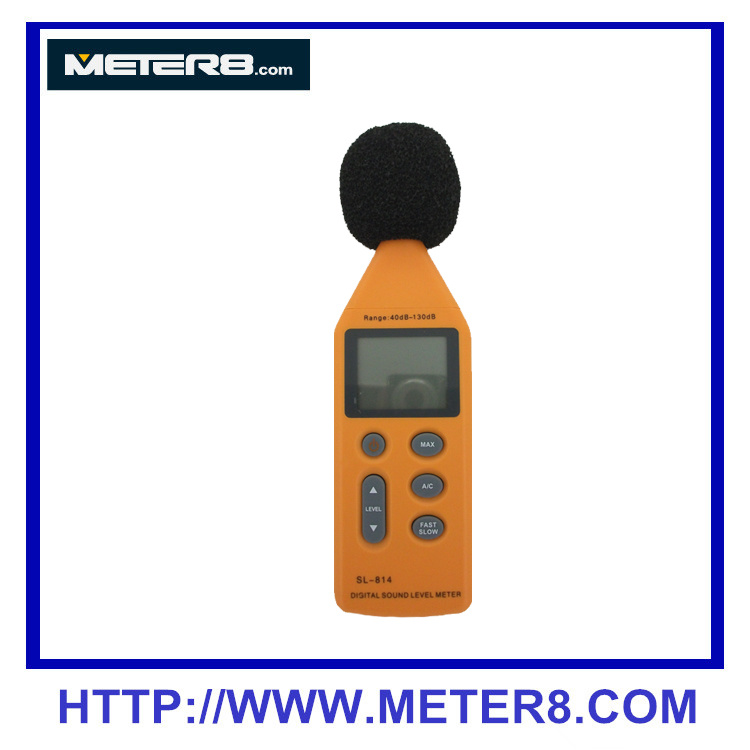

SL814 Digital Sound Noise Level Meter

SL814 Digital Sound Noise Level Meter
Supplier: Shenzhen Handsome Technology Co., Ltd.
Price: Negotiable/Piece
Min Order: 100/Piece
Quantity::
Trade Terms: EXW
contact supplier

Product Specifications

Prod Model: SL814
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wide Measuring Range: 40 ~ 130 Db
Measuring Level: 40~130dba, 40~130dbc
Accuracy-: ± 2 Db
Frequency Range: 31.5 Hz to 8.5k Hz
Linearity Range: 50db
Frequency Weighting: a, C
Digital Display: 4 Digits
Resolution: 0.1db
Kind: Liquid Level Transmitter
Range: 0-3m
Principle: Piezoelectric Type
Structure: All in One

Product Description

Features:

Conformed to the IEC 651 Type 2 and ANSI S1.4 Type 2 set standard

Wide Measuring Range: 40 ~ 130 dB

(optional with USB PC Interface)

With 2 equivalent weighted sound pressure levels A and C

Fast and Slow dynamic characteristic modes

Bar graph indication for Sound Level Range

Maximum hold function

Large LCD screen with 4 digits reading

MAX/MIN QUASI-ANALOG BAR INDICATOR

Fast & Slow response selectable

Low battery indicator

Measuring Level: 40~130dBA, 40~130dBC

Accuracy: ± 2 dB

Frequency Range: 31.5 Hz to 8.5k Hz

Linearity Range: 50dB

Frequency Weighting: A, C

Digital Display: 4 digits

Resolution: 0.1dB

Display: 0.5 secretary

Analog Bar Graph: 50dB scale at 1dB step for monitoring current sound pressure level display period of 50mS

Overload indication: Under indicate less than lower limit of the range

AC output: 0.707 Vrms at FS output impedance approx 600?

DC output: 10 mV / dB output impedance approx 100?

Dynamic Characteristic (Time weighting): FAST (high speed) / SLOW (low speed)

Microphone: 1/2 inch electret condenser microphone

Max: Maximum hold

Power Supply: 9V alkaline battery(not included) or DC 9V 100mA

Operating Environment: 0° C to 40° C, 10% to 70% RH

Storage Environment: -10° C to 50° C, 10% to 80% RH
MOQ100
Supplying ability10000
PackagingSize: 235mmx70mmx30mm
Net Weight: 380g/each pcs
Gross Weight: 850g/pcs
Hard carrying case + color box
Accessories: Sponge Ball, Protective Carrying Case with hardened foam lining for maximum shock absorption, User' s Manual (optional: USB line, software CD)
