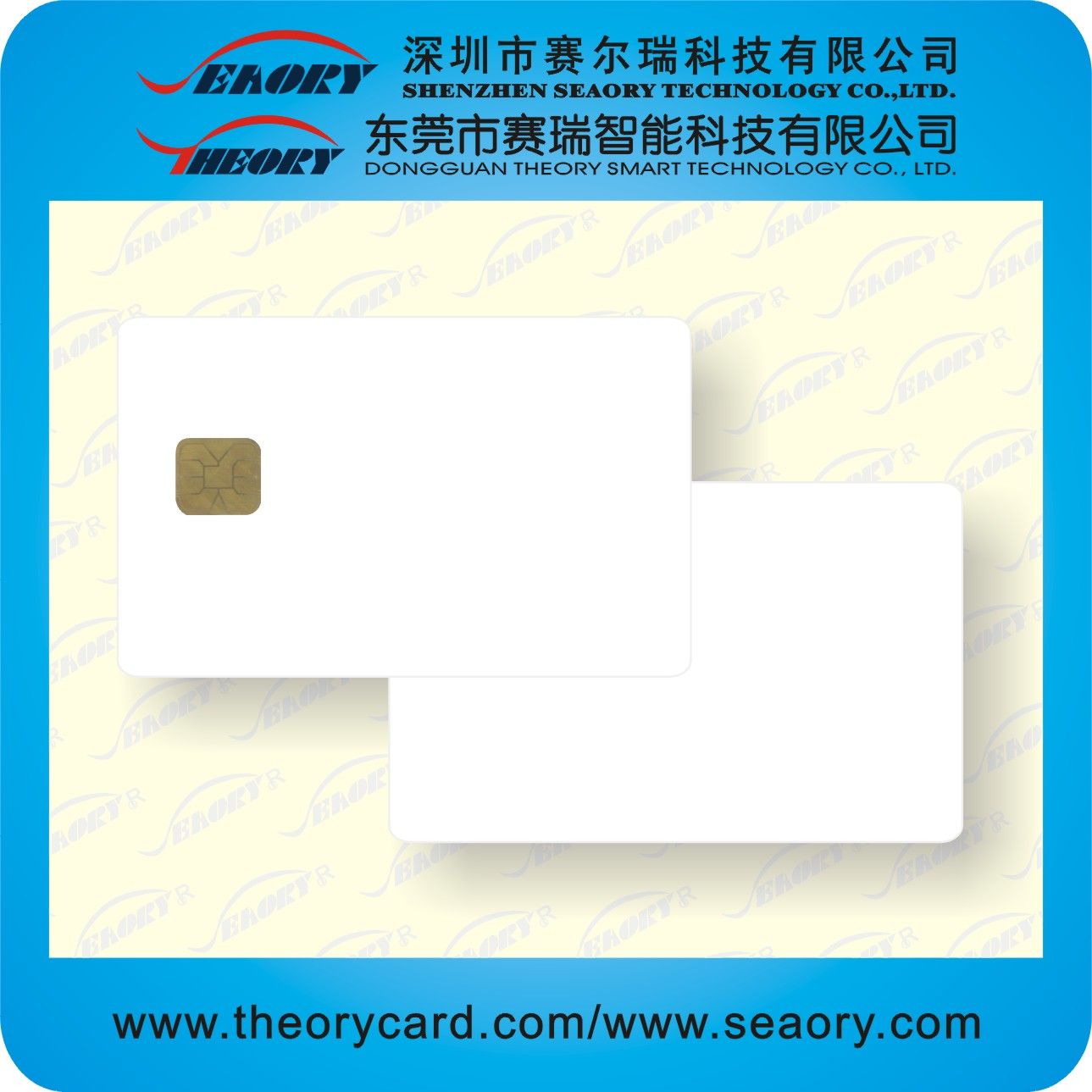

Sle5542/5528/At24c64 Contact Card for Access Control/Smart Contact Card
Product Specifications
| Prod Model: |
smart card |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Samples: |
Free |
| Size: |
85.5mm*54mm*0.76mm |
| Price: |
Factory Price |
| Delivery Date: |
in 7 Days After Payment |
| Package: |
200PCS/Inner Box, 20boxes/CTN, |
| Function: |
Information |
| Material: |
PVC |
| Frequency: |
High Frequency |
Product Description
Product Features:
Technical features of SLE5528 chips:
1)ISO 7816 Compliant pad locations
2)1024*8 bit EEPROM organization
3)byte-wise addressing
4)Irreversible byte-wise write protection of lowest 32 addresses (byte 0-31)
5)32*1 bit organization of protection memory
6)2-wire link protocol
7)Answer to reset according to ISO standard 7816-3
8)Programming time 2.5mS per byte for both erasing and writing
9)Minimum of 10000 write/erase cycles
10)Data retention > 10 years
11)Programmable Security Code (PSC)
12)Data write only after correct 3-byte PSC
|
Contact smart cards |
|
Materials: |
PVC/PET/PETG/ABS |
|
Size |
CR80, 85.5*54mm, or customized size |
|
Thickness |
Typical 0.82+/-0.02mm. |
|
Finishing |
Glossy, Matte, Semi-glossy, Spot UV Varnish. |
|
Printing |
Full colors offset printing, silk screen printing, Gold/ Silver background^ |
|
Personalization |
Ink jet numbers, Thermal numbers, Laser engraving, Embossing, |
|
Temperature |
0° C to 70° C or modify |
|
Package |
200~500pcs per box, 2000~5000pcs per outer carton. Each outer carton gross 12KGs |
|
ISO |
ISO/IEC7816-3 |
|
Options |
Magnetic stripe (300 oe, 2750 oe, 4000 oe, black, gold, red ^), Barcode, Signature Panel, Hot stamp, Hologram, Hole punching, Thermo re-writable |
|
Available Chips |
Storage ic card: AT24C02/04/08/16/64/128/512, ISSI24C02/04/08/16/64 |
|
Double Encryption ic card: SLE4200, SLE4305, SLE4450, AT88SC102/1604/1608, FM4442/428 |
|
CPU: 4K, 16K, 32K, 64K, 128K, 256K, 512K |
|
Application: |
1. Access control management 2. Asset tracking management 3. Supply chain management 4. Warehouse management 5. Logistics management 6. Production automation management 7. Library management 8. Parcel tracking 9. Healthcare management 10. Anti-counterfeit |
Available chips indicator:
|
Chips Model |
content |
Encryption ways |
Frequency |
communication protocol |
|
SLE5542 |
256byte |
6F |
|
ISO7816 |
|
SLE5528 |
1024byte |
4F |
|
ISO7816 |
|
AT24C01A |
1Kbit |
memory chips |
1MHz(5v), 1MHz(2.7v), 400KHz(1.8v) |
ISO/IEC7816-3 |
|
AT24C02 |
2kbit |
memory chips |
1MHz(5v), 1MHz(2.7v), 400KHz(1.8v) |
ISO/IEC7816-3 |
|
AT24C16 |
64kbit |
memory chips |
1MHz(5v), 1MHz(2.7v), 400KHz(1.8v) |
ISO/IEC7816-3 |
|
AT24C64 |
64kbit |
memory chips |
1MHz(5v), 1MHz(2.7v), 400KHz(1.8v) |
ISO/IEC7816-3 |
|
FM4442 |
256byte |
6F |
2.7-5.5v |
ISO7816 |
|
FM4428 |
1024byte |
4F |
2.7-5.5v |
ISO7816 |
|
24C02 |
2Kbit |
memory chips |
1MHz(5v), 1MHz(2.7v), 400KHz(1.8v) |
ISO/IEC7816-3 |
|
24C16 |
16kbit |
memory chips |
1MHz(5v), 1MHz(2.7v), 400KHz(1.8v) |
ISO/IEC7816-3 |
|
24C64 |
64kbit |
memory chips |
1MHz(5v), 1MHz(2.7v), 400KHz(1.8v) |
ISO/IEC7816-3 |
SHENZHEN SEAORY TECHNOLOGY Co., Ltd is a hi-tech company dedicated to smart card field since 2002. We are specialized in manufacturing, researching, developing and selling of smart card, personalization card printer and smart card application system.
Our Kiosk factory was built on 2005, Now Seaory is the leading manufacturer that specializing in researching, designing, manufacturing, and providing a complete solution for self-service Kiosks.
We provide customized kiosk solutions for various industries including banking, telecom and transportation. We have rich experience in terminal, electronics, telecommunication, and financial equipment production.
We produce PVC card, magnetic strip card, contact Memory/CPU IC card, contactless Memory/CPU IC card and dual interface CPU IC card. All the production process and quality control of cards meet ISO requirements, as well as the standards from international credit card groups, like VISA, MasterCard, China Union etc. The cards are widely used in the field of financial, transportation, postal, telecom, education, security, commercial, utility and enterprises.
For personalization card printer, besides our own brand "SEAORY", we are the agent of HiTi in China, also the distributor of DataCard, DIS, Zebra and Evolis.
Our Kiosk products have passed CE, CCC, FCC, RoHS and other international tests and certifications. Our team with rich experience in kiosk industry and global delivery.
75% of our engineer and technical staff with more than 8 year of experience in the kiosk field. Experienced with different kinds of kiosk project including United States and European market. Our team is ready to provide solution and OEM/ODM service to the new intelligent world.
We keep improving, innovating and pursuing "High Quality, Perfect Service" all the time. Hope to grow up with you together!
