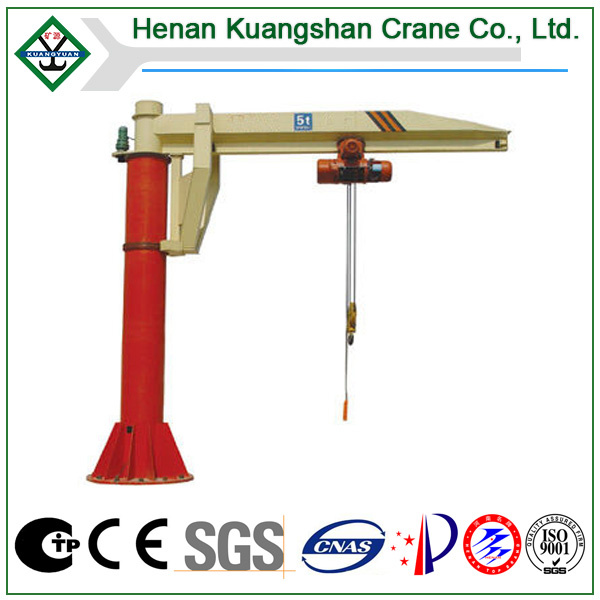

Slewing Jib Crane ,Column Jib Crane, Fixed Jib Crane
Pillar-mounted slewing crane is recently developed MID-light lifting equipment, its unique mechanism, reliable safety is featured high performance, energy and time saving, occupy less space, easy to install and flexible characters. It could be operated in 3-D space, in short distance, densely lifting situations to show its advantages compared with common lifting equipment, widely used in different place of different trade.
It is composed by the vertical shaft, revolving arm, rotating shaft, hoist etc. The bottom of the vertical shaft is fixed on the concrete base.
The operation method of this crane contains manual and electric. It has features of simple structure; Operation is convenient, the manual working in the situation of no power supply.
It can be used in factory, mine, production line of workshop, assembly line, machine tool workshop, warehouse and pier etc. No flammable, explosive and corrosive gas in working environment, and prohibited to lift molten metals, toxic substances and dangerous goods.
Features:
Light weight
Durable
Reduces labor cost
Easy handling
Less time consuming
Multi-functional within Work Area
Variety of options available for indoor and outdoor applications
Mast Fabricated from Pipe/Rolled Steel Sections
Thick base plate for rigidity
Double roller self aligned type bearings with thrust & roller bearings for horizontal & vertical loadings as well as radial thrust
Positive full 360 degree rotation duly insulated brass swing springs with pantograph current collectors provided
Base plate readily drilled to take six/eight holding down bolts
Safety
Overload protection,
Main lifting motor with thermal protection,
Hooks with latch,
Rubber buffers
Protective earthing,
Crane switch and travel end switch,
Emergency switch can stop all movement when any dangerous happened,
Sub-assemblies characteristic are tested before assemly.
All cranes must be pre-assmebled and tested before leaving factory and offer the certification of test.
Design and construction rules:
All the standards which is required for the crane is the Chinese standard.
Painting:
Primer and finishing paint
Color: According to your demand.
Average thickness: About 100 microns.
We design and manufacture custom-built cranes according to customer specifications. When you order the cranes from us, please give us the detail of your requirements and your using situation, we will be the one to ensure what we offer is totally according to your requirement. And our components are designed with the idea of adjustment free and according to the lift time of the crane, so you can always rely on the functioning of the cranes.
Welcome contacts us by E-mail or online, you will receive our prompt and careful reply!
| Model | BZD0.5 | BZD1 | BZD2 | BZD3 | BZD5 |
| Lifting capacity | T | 0.5 | 1 | 2 | 3 | 4 |
| Max. Lifting height | M | 3 | 3 | 3 | 4 | 4 |
| Max. Horizontal throw | M | 2.6 | 3~4 | 2.9~3.9 | 3.8 | 3.7 |
| Max. Radius of gyration | M | 3.6 | 4~5 | 4~5 | 5 | 5 |
| Max. Rotation moment | T/M | 3 | 6 | 12 | 18 | 27 |
| Angle of revolution | Degree | 360 |
| Lifting speed | Normal | m/min | 8(4) |
| Slow | m/min | 0.8(0.4) |
| Travel speed | m/min | 20 |
| Angle of revolution speed | m/min | 1 | 0.75 | 0.7 | 0.9 | 0.6 |
