Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Name:

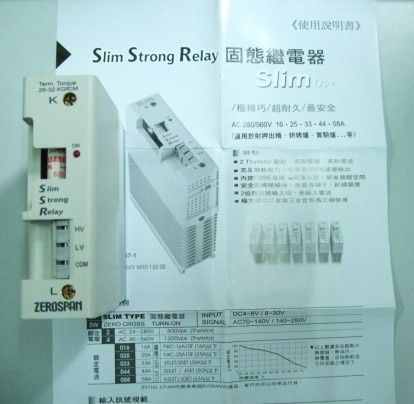

SV/SW Slim Strong Relay
Features:
1. 2 Thyristor design, high voltage-resistant and high current-resistant
2. Full heat radiating capability allowing 100'/. Continuous output
3. Built-in fuse protection
4. Super slim figure, saving body's space
5. Secure CE wiring terminal, no need of ring terminals, easy for wiring
6. 2-Level of signal inputs, low input current.
7. Extremely convenient, to combine with 2 or 3 sets together to use a 3-phase power.
Order Code:
Slim tpye order code 1-2-3
1: Input signal
SV----DC4-8V/8-30V
SW----AC70-140V/140-280V
2: Rated voltage
2----AC 24-280Vrms
4---- AC 48-560Vrms
3: Rated current
016----16A
025----25A
033----33A
044----44A
058----58A
