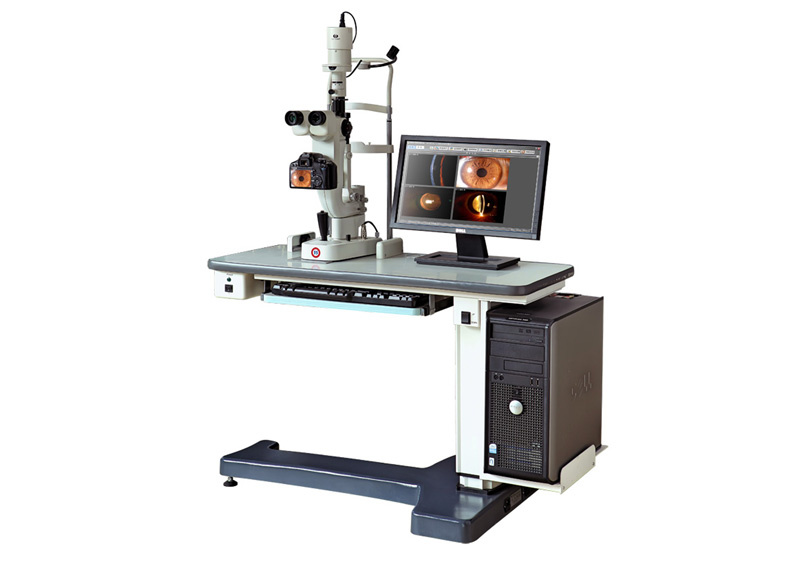

Slit Lamp Microscope Image Processing System Microscope (AMYZ-5T)
The image processing system is not only a working platform for ophthalmic diagnosis, but also a case database. It can easily capture digital photos of the cornea, sclera, anterior chamber, iris, lens, retina and set up patients files and effectively man.
Features:
？What doctors see from eyepieces is showed synchronously on camera display screen, which is very convenient for the doctors to capture the best and clearest pictures.
？Photos taken by the 12.4 megapixel camera.
？Background illumination specifically designed for darkroom environment.
？Fine photos immediately taken by the button on joystick.
？Used for establishing the full data of patients, processing images, measuring the length, area and so on.
？Honored "China Top Brand" for its excellent optics.
Specifications:
Microscope Type |
Gauleo magnification changer with converging |
Magnification |
Five-steps by drum rotation |
Eyepiece |
12.5 |
Magnification Ratio(Field of View) |
6×(Φ33mm) 10×(Φ22.5mm) 16× (Φ14mm)
25 ×(Φ8.8mm) 40×(Φ5.5mm) |
Range of Pupil Distance |
45 mm ~ 75 mm |
Adjustment of Diopter |
-5D ~ +3D |
Slit Width |
continuous from 0~14mm (slit becomes a circle at 14mm) |
Slit Height |
continuous from 1~14mm |
Aperture Diameter |
φ14mm,φ10mm,φ5mm,φ2mm,φ1mm,φ0.2mm |
Slit Angle |
0°~180° adjustable |
Slit Inclination |
5°,10°,15°,20° |
Filter |
Heat absorption, Grey, Redfree, Cobalt blue |
Illumination Bulb |
12v/30w Halogen Bulb |
Maxial Illuminance |
≥280000 Lx |
Preceding Mirror |
-58.7D |
Collection Medium |
Single Lens Glistening Camera |
3CCD |
Special Specifications |
Static Pixel:12.4megapixel |
Dynamic Image:795×596×3 |
Double Display Screens |
Single display screen |
Without the function of
kinescope |
With the function of kinescope |
Illuminations Type of Filming |
Background Light |
Functions of Images Processing |
Measuring length, width, angle and area
Adding arrowhead and letters; Processing images |
Assistant Diagnosis |
With the diagnosis database |
